Euclid Diamond-Plate 50lb Bag 063E 50
Diamond-Plate is a non-oxidizing metallic dry-shake floor hardener for fresh concrete slabs that see abrasion, impact, and wet service.
- Non-rusting metallic aggregate in a cement binder
- Apply 1.0 to 3.0 lb per square foot
- Industrial floors, docks, and high-traffic aisleways
$76.71

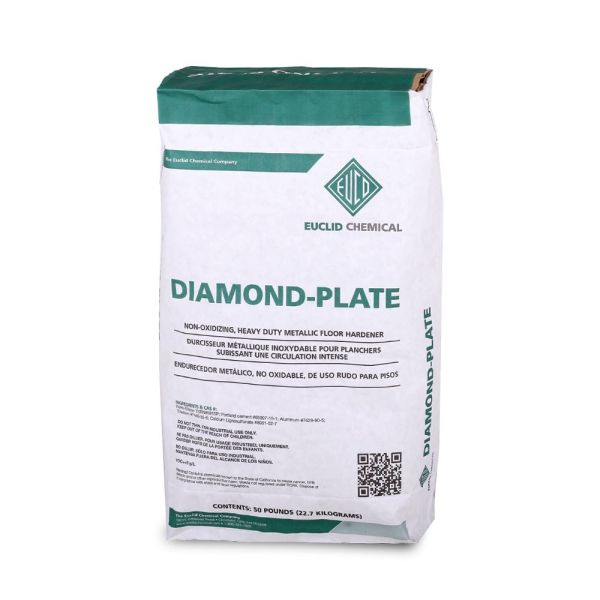

Euclid Diamond-Plate Metallic Floor Hardener, 50 lb Bag
Euclid Diamond-Plate is a metallic dry-shake floor hardener with graded non-oxidizing metallic aggregate in a high-strength cementitious binder. It is used on fresh industrial slabs, warehouses, processing plants, and freight terminals. The finished surface is dense and nearly dust-free, and it can be mixed as a mortar for armored joint shoulders, including CFIA inspected facilities.
Key Features
- Non-oxidizing metallic dry shake for fresh concrete
- Holds up in frequently wet service without rusting
- Dense, nearly dust-free wearing surface
- Coverage 1.0 to 3.0 lb/ft²
- Mixed as a mortar for armored joint shoulders
- CFIA compliant
Applications
- Industrial floors, warehouses, and distribution centers.
- Loading docks and main aisleways.
- Processing plants and freight terminals.
- Joint shoulder reinforcement mixed as a mortar.
Technical Specifications
| Property | Value |
|---|---|
| Coverage | 1.0 to 3.0 lb/ft² |
| Compressive strength, 7 days, ASTM C109 | 11,000 psi |
| Compressive strength, 28 days, ASTM C109 | 13,000 psi |
| Abrasion, 7 days, ASTM C779 | 0.013 in at 30 min; 0.038 in at 60 min |
| Abrasion, 28 days, ASTM C779 | 0.012 in at 30 min; 0.034 in at 60 min |
| Base-slab air | Below 3% |
| Lab cube water, ASTM C109 | 4.50 lb per 50 lb bag |
| Shelf life | 2 years unopened |
| CFIA | Compliant |
Documents
Diamond-Plate Technical Data Sheet
Frequently Asked Questions
Where is Euclid Diamond-Plate used?
Euclid Diamond-Plate is used on fresh industrial slabs, warehouses, loading docks, main aisleways, processing plants, and freight terminals. It can also be mixed as a mortar for armored joint shoulders.
What coverage does Euclid Diamond-Plate have?
Euclid Diamond-Plate is placed at 1.0 to 3.0 lb/ft² (4.9 to 14.6 kg/m²). Greater application rates raise total abrasion resistance.
What 28-day compressive strength does Euclid Diamond-Plate show?
Typical laboratory compressive strength is 11,000 psi at 7 days and 13,000 psi at 28 days (ASTM C109, 2 in cubes). Expect reasonable variation under field conditions.
What ASTM C779 abrasion does Euclid Diamond-Plate show at 7 days?
Typical laboratory relative abrasion at 7 days is 0.013 in at 30 min and 0.038 in at 60 min (ASTM C779). At 28 days it is 0.012 in at 30 min and 0.034 in at 60 min. Expect reasonable variation under field conditions.
What base-slab air content does Euclid Diamond-Plate need?
Base-slab air content should be below 3% for dry-shake placement of Euclid Diamond-Plate. Expect reasonable variation under field conditions.
What CFIA listing does Euclid Diamond-Plate have?
Euclid Diamond-Plate is Canadian Food Inspection Agency compliant. It is a non-oxidizing metallic dry-shake formulated for floors that see frequent moisture.
