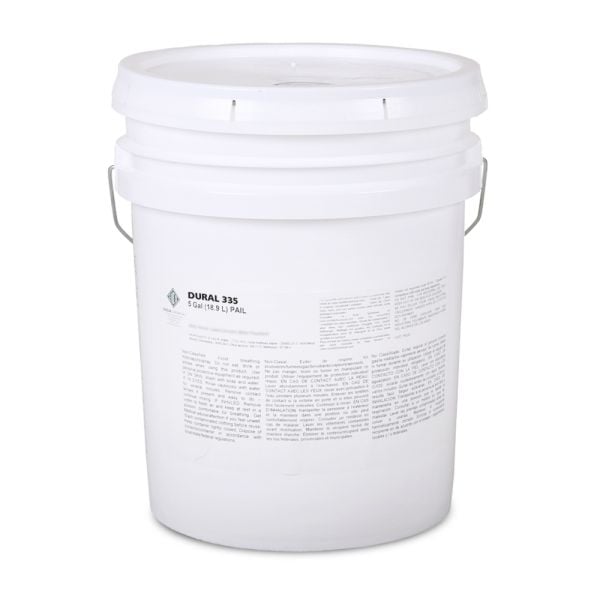

Euclid Dural 335 5 Gallon Unit
Euclid Dural 335 is a solvent-free, two-component, 100% solids, moisture-insensitive epoxy healer-sealer. Ultra-low viscosity so it soaks into damp or dry cracks on bridge decks, runways, roadways, and parking decks.
- Ultra-low viscosity penetrating healer-sealer
- Gravity feed or pressure injection of cracks
- Protects treated surfaces from salts, chemicals, and water
$884.00
Euclid Dural 335 Epoxy Healer-Sealer, 5 gal Unit
Euclid Dural 335 is a solvent-free, two-component, 100% solids, high-modulus epoxy. It is used as a penetrating healer-sealer and for pressure injection of damp or dry cracks. Placement is on bridge decks, airport runways, roadways, and parking garage decks, and it is also used to re-bond delaminated concrete toppings. The resin is moisture-insensitive and has no odor.
Key Features
- Solvent-free, 100% solids, moisture-insensitive epoxy
- Ultra-low viscosity penetrating healer-sealer
- Gravity feed or pressure injection of damp or dry cracks
- Protects treated surfaces from salts, chemicals, and water
- High-modulus epoxy for cracked decks
- No odor
Applications
- Bridge decks, airport runways, and roadways.
- Parking garage decks and ramps.
- Re-bonding delaminated concrete toppings.
- Pressure injection of cracked concrete.
Technical Specifications
| Property | Value |
|---|---|
| ASTM C881 | Types I and IV, Grade 1, Class C |
| Mixed viscosity | 80 to 120 cps |
| Gel time, 60 g | 70 to 90 minutes |
| Pot life, 1.25 gal | 20 to 25 minutes |
| Compressive strength, 7 days, ASTM D695 | 11,000 to 11,500 psi |
| Slant shear, ASTM C882 | 2 days 1,450 to 1,600 psi; 14 days 2,100 to 2,300 psi |
| Tensile strength, 7 days, ASTM D638 | 7,500 to 8,500 psi |
| Tensile elongation, 7 days, ASTM D638 | 1 to 5% |
| Coverage, 1st coat | 100 to 200 ft²/gal |
| Application temperature | 50 to 90 F |
Documents
Dural 335 Technical Data Sheet
Frequently Asked Questions
Where is Euclid Dural 335 used?
Euclid Dural 335 is used as a healer-sealer on cracked decks and for pressure injection of damp or dry cracks. Typical work includes bridge decks, airport runways, roadways, and parking garage decks and ramps.
What mixed viscosity does Euclid Dural 335 show?
Typical laboratory mixed viscosity is 80 to 120 cps. The ultra-low viscosity lets Euclid Dural 335 soak into cracked concrete. Expect reasonable variation under field conditions.
What 7-day compressive strength does Euclid Dural 335 show?
Typical laboratory compressive strength is 11,000 to 11,500 psi at 7 days (ASTM D695). Expect reasonable variation under field conditions.
How soon can a subsequent coating go over Euclid Dural 335?
Subsequent coatings or toppings over Euclid Dural 335 are placed no earlier than 3 to 5 hours at 75 F, and no later than 24 hours.
What chloride resistance does Euclid Dural 335 show?
Typical laboratory chloride content improvement is 90.6% at 0.5 in and 99.7% at 1.0 in (AASHTO T259 and T260). Expect reasonable variation under field conditions.
What gel time does Euclid Dural 335 hold?
Typical laboratory gel time is 70 to 90 minutes on a 60 g mass. Expect reasonable variation under field conditions.
