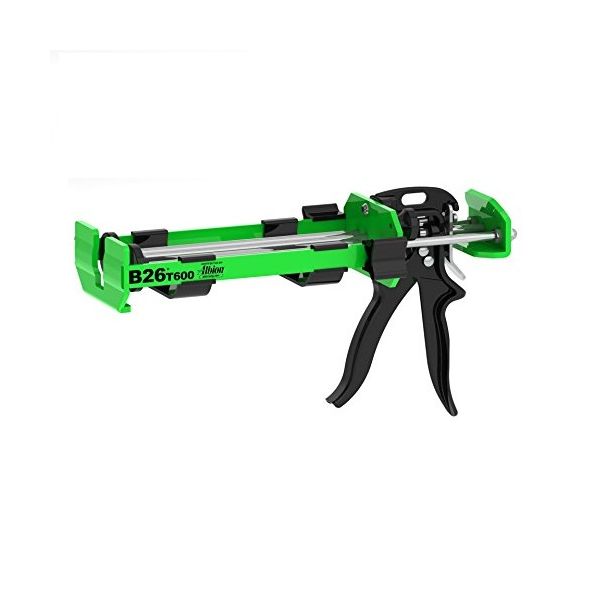

Albion B26T600 Multi-Component Cartridge Applicator 600ml

Albion B26T600 is a manual 26:1 multi-component applicator for 2K epoxy joints, crack injection, and anchors.

Twin 1:1 300x300 as shipped
Converts to 2:1 as a published property
Snap-in carriage for 2K cartridges

$129.87

Availability: Out of stock

Details

Albion B26T600 Multi-Component Cartridge Applicator 600ml

The Albion B26T600 is a manual 26:1 multi-component applicator for 2K epoxy on construction joints, crack injection, and chemical anchors. It ships for 1:1 300 ml x 300 ml twin cartridges and converts to 2:1 as a published property, with a snap-in carriage that holds the pack. Crews pick the B26T600 when the same 600 ml 2K pack has to run by hand because shop air is not on the deck.

Key Features

2K joints, crack injection, and chemical anchors
Ships as 1:1 300x300 twin cartridges
Converts to 2:1 as a published property
Snap-in carriage that holds the pack
Double gripping plates on a 26:1 B-Line drive
Manual path when shop air is not on the deck

Applications

1:1 two-component epoxies in 300x300 cartridges
2:1 packs after conversion as a published property
Construction joints with 2K epoxy
Crack injection by hand
Chemical anchors when shop air is not available

Technical Specifications

Property	Value
Manufacturer / Model	Albion Engineering B26T600
Tool Type	Manual B-Line multi-component cartridge applicator
Drive	Manual, 26:1 mechanical advantage
Capacity (as shipped)	300 ml x 300 ml 1:1 (600 ml / 22 oz total)
Convertible Capacity	300 ml x 150 ml 2:1 (450 ml / 15 oz) with parts included
Mix Ratio	1:1 (standard); 2:1 with conversion parts
1:1 Cartridge Size (Bulletin 283C)	8-1/2 in. long x 2 in. dia. (A) x 2 in. dia. (B)
2:1 Cartridge Size (Bulletin 283C)	8-1/2 in. long x 2 in. dia. (A) x 1-15/32 in. dia. (B)
Thrust	900 lbf
Pressure	167 PSI
Handle	Full size
Features	Double gripping plates, steel trigger, adjustment screw, snap-in cartridges
Weight	4.6 lb
Dimensions	15 × 8.5 × 5 in.
Replaces	505-9P
Country of Origin	Taiwan
Bulletin	Bulletin 283C (201807)

Product documents: 600 SERIES MULTI-COMPONENT Applicator - 1:1 & 2:1 MIX RATIOS Bulletin 283C (PDF)

Frequently Asked Questions

When should I use the Albion B26T600 by hand instead of shop-air AT600 on the same 1:1 300x300 pack?
Use the B26T600 when the 1:1 300x300 cartridge is the specified pack and shop air is not on the deck. Use the AT600 when that same 1:1 pack can run on shop air so thick epoxy does not stall a manual drive. Air versus hand is the reason, not a different cartridge.

Does the Albion B26T600 convert from as-shipped 1:1 to 2:1 as a published property?
Yes. The B26T600 ships set up for 1:1 300 ml x 300 ml cartridges and Albion publishes conversion to 2:1 as a property, with parts included. This page does not walk a change-over procedure. Match the mix on the material sheet.

Can the Albion B26T600 run 2K epoxy on construction joints?
Yes. Albion lists the B26T600 for epoxies and adhesives on construction joints. The 26:1 drive and snap-in carriage keep a twin 1:1 pack in place while you work the joint by hand. Keep AT600 when shop air can take that same pack.

Is the Albion B26T600 used for crack injection?
Yes. Crack injection is a published B26T600 use on 2K epoxy. Manual 26:1 thrust meters the mix into the crack when shop air is not available. Two-hand AT600 is the air path on the same 1:1 300x300 pack.

Can crews set chemical anchors with the Albion B26T600?
Yes. Albion lists bolt setting and adhesive installation among B26T600 uses. The snap-in carriage holds the twin cartridge while 26:1 thrust moves 1:1 epoxy into the hole. Confirm the anchor sheet for 300x300 geometry.

How do cartridges sit in the Albion B26T600 snap-in carriage?
Albion publishes a snap-in carriage on the B26T600 so 2K cartridges sit firmly for joints, crack injection, and anchors. That is a layout property, not an install procedure. Double gripping plates keep the 26:1 rod from slipping under load.
