Adhesives Technology Ultrabond HYB-2CC 10oz
High performance hybrid anchoring and post-installed reinforcing bar system. The system is suitable for use in cracked and uncracked concrete in accordance with ACI 355.4 and ICC-ES AC308.
- Vertical, Horizontal and Overhead Use
- Dry, Damp and Water Filled Conditions
- 10:1 Mix Ratio
$27.44
Availability:
In stock
( 24 Available )
SKU
17958

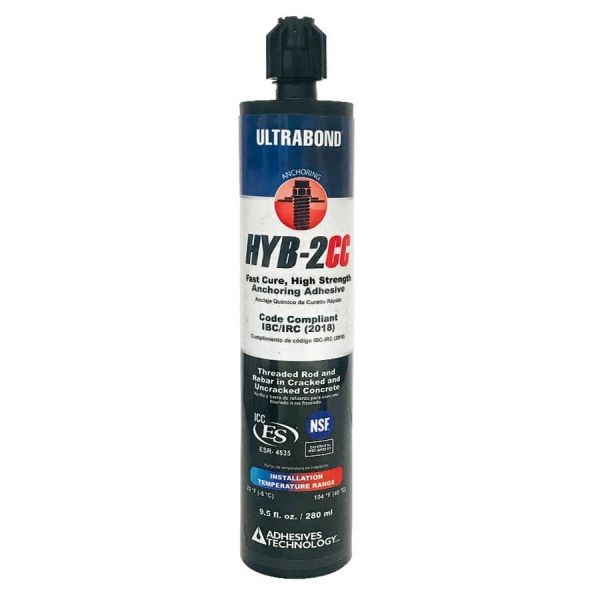

ULTRABOND HYB-2CC – 10oz Cartridge
ULTRABOND HYB-2CC is a two-component hybrid anchoring adhesive with a 10:1 mix ratio for anchoring threaded rod and post-installed rebar in cracked or uncracked concrete. It is evaluated to ICC-ES AC308 and ACI 355.4 and is covered by ICC-ES ESR-4535. It installs in dry, water-saturated, and water-filled holes across a wide temperature range and is certified for potable water system components.
Looking for another size?
Key Features
- ICC-ES ESR-4535 approval for cracked and uncracked concrete.
- Evaluated to ACI 355.4 and ICC-ES AC308 for structural anchoring.
- Complies with IBC and IRC with City of Los Angeles and Florida Building Code listings.
- NSF/ANSI 61 certification for drinking water system components.
- 10:1 mix ratio by volume with non-sag consistency.
- Installation temperature range from 23°F to 104°F.
- Qualified for Seismic Design Categories A through F.
- Suitable for dry, water-saturated, and water-filled hole installations.
Applications
- Anchoring threaded rod and reinforcing bar into structural concrete.
- Alternative to cast-in-place rebar connections per ACI 318 and IBC Chapter 19.
- Vertical down, horizontal, inclined, and overhead anchor placements.
- Seismic anchoring applications in all categories.
- Potable water facilities where NSF/ANSI 61 compliance is required.
Technical Specifications
| Mix Ratio | 10:1 by volume |
| Consistency | Non-sag hybrid adhesive |
| Installation Temperature Range | 23°F to 104°F |
| Compressive Yield Strength (7 day) | Up to 15,049 psi (ASTM D695, Class C at 73°F) |
| Bond Strength (Hardened Concrete, 14 day) | Up to 3,270 psi (ASTM C882) |
| Heat Deflection Temperature | 258°F (ASTM D648) |
| Water Absorption (14 day) | 0.90% (ASTM D570) |
| Approvals and Listings | ICC-ES ESR-4535; IBC and IRC; City of Los Angeles; Florida Building Code; AASHTO M235 / ASTM C881 Type I, II, IV, V Grade 3 Class A, B, C; NSF/ANSI 61 |
| Hole Conditions | Dry, water-saturated, and water-filled |
| Packaging | 10 oz cartridge |
Frequently Asked Questions
Is HYB-2CC approved for cracked concrete?
Yes. It is covered by ICC-ES ESR-4535 for cracked and uncracked concrete.
Can I install anchors in water-filled holes?
Yes. The adhesive is suitable for dry, water-saturated, and water-filled hole installations.
What service temperature limits apply?
The system is assessed for long-term loads up to 212°F with short-term exposure up to 320°F as part of AC308 and ACI 355.4 evaluations.
Is HYB-2CC acceptable for potable water applications?
Yes. It is certified to NSF/ANSI 61 for drinking water system components.
What mix ratio does the cartridge use?
The cartridge dispenses a 10:1 ratio by volume for consistent proportioning.
| Brand | Adhesives Technology |
|---|---|
| Manufacturer | Adhesives Technology |
