Adhesives Technology HS-1CC Ultrabond 53oz Case 6
Ultrabond HS-1CC is a high-strength epoxy anchoring adhesive for threaded rod and rebar in cracked or uncracked concrete, including submerged holes.
- Core-drilled holes in uncracked concrete
- Internally threaded inserts in uncracked concrete
- ICC-ES ESR-4094 structural epoxy with NSF/ANSI 61 and 372
$444.99
Drop Shipped

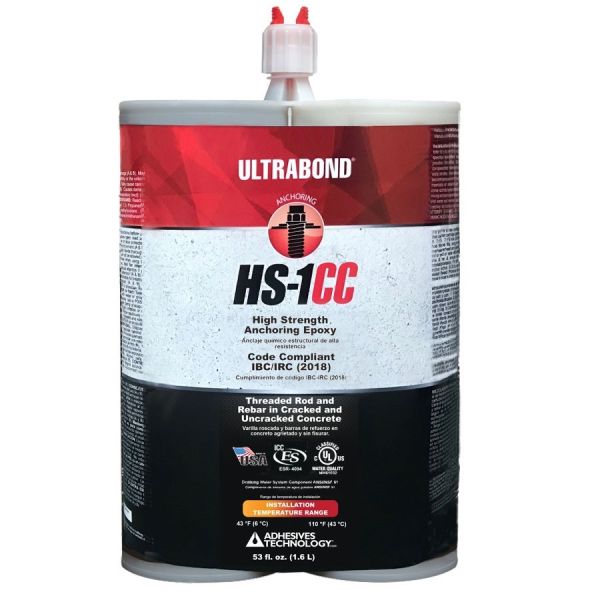

Adhesives Technology ULTRABOND HS-1CC High-Strength Anchoring Epoxy, 53 oz Cartridge
ULTRABOND HS-1CC is a two-component, 1:1 epoxy anchoring adhesive for threaded rod and reinforcing bar in cracked or uncracked concrete, and for internally threaded inserts in uncracked concrete. It is approved for dry, water-saturated, water-filled, and submerged holes, including vertical, horizontal, and overhead placements. Working time is about 16 minutes at 75°F, with a 7-hour full cure. Also available as the ULTRABOND HS-1CC 9 oz and the ULTRABOND HS-1CC 22 oz.
Looking for another size?
Key Features
- Anchors threaded rod and rebar in cracked or uncracked concrete
- Approved for dry, water-saturated, water-filled, and submerged holes
- Vertical down, horizontal, upwardly inclined, and overhead placements
- Non-sag 1:1 epoxy that mixes gray
- Code-range application from 43°F to 110°F
- Suitable for core-drilled holes in dry or water-saturated concrete
- NSF/ANSI 61 drinking water system components
Applications
- Threaded rod in cracked or uncracked concrete
- Reinforcing bar (rebar) doweling
- Internally threaded inserts in uncracked concrete
- Dry, damp, water-filled, and submerged installations
- Transportation infrastructure work to AASHTO M235
Technical Specifications
| Property | Value |
|---|---|
| Chemistry | Two-component epoxy, 1:1 by volume |
| Mixed color | Gray |
| Consistency | Non-sag |
| Compressive yield | 14,480 psi at 7 days, 75°F (ASTM D695) |
| Heat deflection | 148°F (64°C) (ASTM D648) |
| Working / full cure | 16 min / 7 hr at 75°F |
| Application temperature | 43 to 110°F (6 to 43°C) |
| ASTM C881-15 / AASHTO M235 | Type I, II, IV and V, Grade 3, Class A, B and C |
| Evaluation | IAPMO ER-591 (ACI 355.4 / ICC-ES AC308) |
| NSF | NSF/ANSI 61 and 372 |
| Shelf life | 24 months (unopened, 40 to 95°F) |
| Packaging | 53 fl oz (1.6 L) cartridge, A53-HS1CC, case of 6 |
Product documents: ULTRABOND HS-1CC Technical Data Sheet (PDF) | ULTRABOND HS-1CC Safety Data Sheet (PDF)
Frequently Asked Questions
Is Ultrabond HS-1CC Buy American compliant?
Yes. Ultrabond HS-1CC is listed as Buy American compliant on the current HS-1CC rev 5.3 sheet.
Can Ultrabond HS-1CC be used in USDA inspected facilities?
Yes. Ultrabond HS-1CC is listed for USDA inspected facilities. That is an occupied-plant use on the same epoxy as the 22 oz cartridge.
Does Ultrabond HS-1CC allow OSHA Table 1 hollow-bit cleaning?
Yes. Ultrabond HS-1CC is listed for OSHA Table 1 hollow-bit cleaning. That is a listing on the sheet, not a drilling procedure.
What short-term elevated temperature does Ultrabond HS-1CC resist?
Ultrabond HS-1CC lists a 205 F short-term load on the rev 5.3 sheet. Confirm the load duration against that TDS.
Is Ultrabond HS-1CC evaluated for cracked and uncracked concrete?
Yes. Ultrabond HS-1CC is the cracked-and-uncracked high-strength epoxy on ESR and the rev 5.3 sheet. That is why crews pick it over Ultrabond 1 when the member is cracked.
Does Ultrabond HS-1CC work with ATC Pro Anchor Design software?
Yes. ATC Pro Anchor Design covers Ultrabond HS-1CC. Run rod and embedment in that software against the current HS-1CC data.
