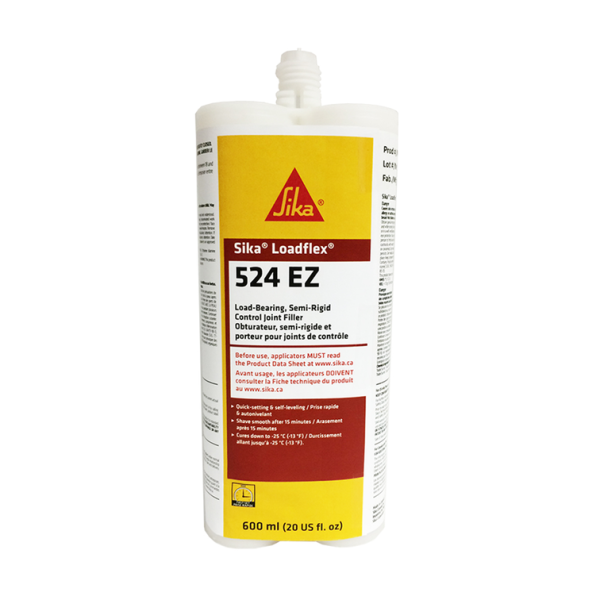

Sika Loadflex-524EZ Joint Filler 20oz Cartridge
Sika Loadflex-524 EZ is a technologically advanced, two-component, quick-setting, semi-rigid, solvent-free, self-levelling control joint filler. Recommended for use as filler for static interior, horizontal saw cuts or preformed control and construction joints.
- Quick-set formula reduces down time.
- Material can be shaved off smooth as early as 5 minutes at 73 °F.
- Cures at temperatures down to -13 °F (-25 °C).
$51.04
Availability:
In stock
( 19 Available )
SKU
17997
Sika Loadflex-524EZ Joint Filler - 20 oz Cartridge
Sika Loadflex-524 EZ is a two-component, quick-setting, semi-rigid, solvent-free, self-leveling polyurea control joint filler for static, interior, horizontal saw cuts or preformed control and construction joints. It is designed to provide even load transfer across floor joints and protect joint edges under hard-wheeled industrial traffic. The fast set allows shaving as early as 5 minutes and up to 24 hours after placement at 73 F (23 C), with performance at temperatures down to -13 F (-25 C). Mix ratio is A:B = 1:1 by volume using a static mixing nozzle.
Key Features
- Two-component, quick-setting, semi-rigid polyurea control joint filler.
- Shaveable as early as 5 minutes and up to 24 hours after placement at 73 F (23 C).
- Cures at temperatures down to -13 F (-25 C).
- Hard, load-bearing filler designed to withstand industrial traffic and impact.
- Provides even load transfer across joints to help protect joint edges under traffic.
- Solvent-free, self-leveling formulation to fill the joint void.
- Improved consistency for easier dispensing and reduced equipment blockage.
- Seals joints to help prevent dirt, dust, and debris accumulation in clean environments.
Applications
- Static interior, horizontal control and construction joints in concrete slabs.
- Warehouses and industrial plants with load-bearing traffic conditions.
- Food plant and manufacturing areas where joints must be kept clean.
- Repair of interior slabs with random cracking due to shrinkage (non-moving cracks).
- Sealing non-moving cracks after saw cutting to a minimum 1/2 inch depth for bond area.
Technical Specifications
| Product Type | Two component, semi rigid, polyurea control joint filler |
| Mixing Ratio | A:B = 1:1 by volume |
| Color | Gray |
| Packaging | 12 x 20 oz side-by-side cartridges (10 oz Part A; 10 oz Part B) |
| Shelf Life | 12 months in original, unopened packaging |
| Storage Conditions | Store between 59 and 89 F. Condition product between 65 and 86 F before using. |
| Density | Part A 1.11 g/mL; Part B 1.10 g/mL; Part A+B 1.1 g/mL |
| Viscosity | Part A 2000-2500 cps; Part B 1000-1600 cps |
| Shore A Hardness | 80-85 (ASTM D-2240) |
| Shore D Hardness | 30-32 (ASTM D-2240) |
| Tensile Strength | 652 psi (ASTM D-638) |
| Tensile Modulus of Elasticity | 6525 psi (ASTM D-638) |
| Elongation at Break | 110 percent (ASTM D-638) |
| Tensile Adhesion Strength | Bond Strength > 218 psi |
| Elastic Recovery | Deformation 6.9 NPa (1000 psi) 43.9 percent (MIL-D-24613 mod.) |
| Water Absorption | 0.30 percent (ASTM D-570) |
| Pot Life | 20 seconds at 73 F (23 C), 50 percent R.H. |
| Cure Time | Light traffic: 15 min at 73 F (23 C); 60 min at -13 F (-25 C). Full traffic: 30 min at 73 F (23 C); 2 hrs at -13 F (-25 C). |
Coverage (20 oz cartridge)
| Joint Depth | 1/8 in (3.8 mm) Joint Width | 1/4 in (6 mm) Joint Width |
|---|---|---|
| 1 in (25 mm) | 24.1 ft (7.8 m) | 12 ft (3.9 m) |
| 1 1/4 in (32 mm) | 19.3 ft (6.2 m) | 9.6 ft (3.1 m) |
| 1 1/2 in (38 mm) | 16 ft (5.2 m) | 8 ft (2.6 m) |
| 1 3/4 in (44 mm) | 13.8 ft (4.4 m) | 6.9 ft (2.2 m) |
| 2 in (51 mm) | 12 ft (3.9 m) | 6 ft (1.9 m) |
Frequently Asked Questions
What joints is Loadflex-524 EZ intended for?
It is recommended for static, interior, horizontal saw cuts or preformed control and construction joints.
Can it be used outdoors or on vertical joints?
No. It is intended for interior, horizontal use only.
What is the mix ratio for the cartridge?
Mix ratio is A:B = 1:1 by volume using a static mixing nozzle.
How soon can the joint be shaved flush?
The material can be shaved as early as 5 minutes or as late as 24 hours after placement at 73 F (23 C).
How fast can the floor return to traffic?
Cure time is light traffic in 15 minutes at 73 F (23 C) and full traffic in 30 minutes at 73 F (23 C). At -13 F (-25 C), light traffic is 60 minutes and full traffic is 2 hours.
Can I hand mix this product?
No. The product sets too quickly to allow hand mixing. It must be machine mixed and dispensed with a plural component pump and static mixing nozzle.
Can it be used in moving joints or cracks?
No. It is not to be used in moving cracks or joints designed for or exhibiting movement.
