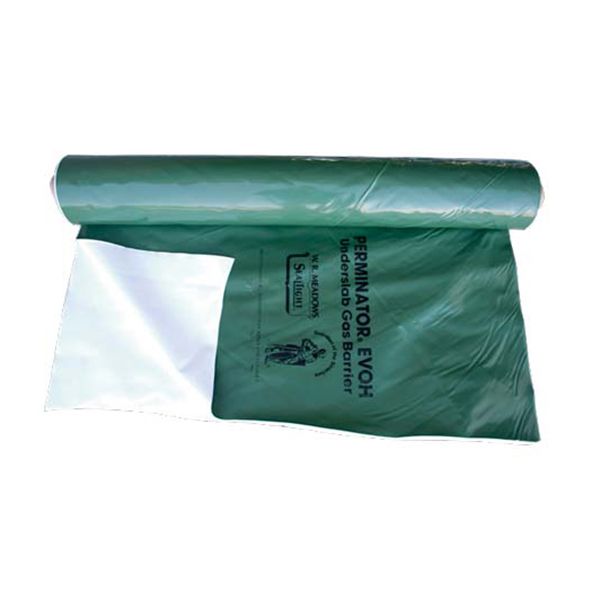

WR Meadows PERMINATOR EVOH Underslab Gas Vapor Barrier 10 ft x 150 ft Roll
WR Meadows PERMINATOR EVOH is a 20 mil, seven-layer underslab gas and vapor barrier with an EVOH core, supplied in one 10 ft x 150 ft roll. It is intended for brownfield sites and soils with high levels of radon, methane and other gases.
- Resistant to gasoline, oils, solvents, hydrocarbons, radon and methane
- Meets or exceeds ASTM E1745 Class A, B and C
- Permeance of 0.0098 perms as new material (ASTM E96 Procedure B)
$1,672.47
Drop Shipped
WR Meadows PERMINATOR EVOH Underslab Gas Vapor Barrier 10 ft x 150 ft Roll
WR Meadows PERMINATOR EVOH (part of the perminator line) is a seven-layer co-extruded barrier made from polyethylene and EVOH resins. It is intended to restrict naturally occurring gases such as radon, methane, gasoline, solvents, oils and hydrocarbons from migrating through the ground and into the concrete slab, and it also helps reduce moisture and water vapor reaching flooring and other moisture-sensitive interior finishes. It can be installed as part of a passive or active control system across the whole building, including floors, walls and crawl spaces. This roll is 10 ft (3 m) wide by 150 ft (45.7 m) long, about 1500 sq ft before overlaps, with a nominal thickness of 20 mil.
Key Features
- Seven-layer co-extruded polyethylene construction with an EVOH gas barrier core
- Resistant to gasoline, oils, solvents, hydrocarbons, radon and methane
- Meets or exceeds all requirements of ASTM E1745 Class A, B and C
- Will not crack, puncture, snag, split or tear easily under normal jobsite traffic
- Static use temperature range of -70 F to 180 F
Applications
- Underslab gas and vapor barrier on contaminated brownfield sites
- Sites with high soil levels of radon, methane and other gases
- Passive or active gas control systems across floors, walls and crawl spaces
- Slabs carrying flooring and other moisture-sensitive interior finishes
Technical Specifications
| Property | Value |
|---|---|
| Construction | Seven-layer co-extruded polyethylene and EVOH |
| Thickness, nominal | 20 mil (0.51 mm) |
| Color | White/Green |
| Weight | 102 lb/MSF (498 g/m²) |
| Roll size | 10 ft (3 m) wide x 150 ft (45.7 m) long |
| Area per roll | About 1500 sq ft before overlaps |
| Classification | ASTM E1745 Class A, B and C |
| Tensile strength (ASTM E154 Section 9) | 58 lbf (10.2 kN/m) |
| Impact resistance (ASTM D1709) | 2600 g |
| Permeance, new material (ASTM E96 Procedure B) | 0.0098 perms |
| Permeance after conditioning (ASTM E154 Sections 8, 11, 12, 13) | 0.0079, 0.0079, 0.0097 and 0.0113 perms |
| WVTR (ASTM E96 Procedure B) | 0.0040 grains/hr-ft² |
| Methane permeance (ASTM D1434) | 3.68E-12 m/s; gas transmission rate 0.32 mL/m²·day·atm |
| Radon diffusion coefficient | Less than 1.1 x 10-13 m²/s |
| Aqueous phase film permeance | Benzene 1.57E-10, toluene 2.18E-10, ethylbenzene 1.71E-10, m and p xylenes 1.62E-10, o-xylene 1.53E-10 m/s; PCE 1.5 x 10-9, TCE 2.4 x 10-9 m/s |
| Static use temperature | -70 F (-57 C) to 180 F (82 C) |
| Seams | Overlap 12 inch (304.8 mm); PERMINATOR BUTYL TAPE under the lap, 4 inch (101.6 mm) PERMINATOR EVOH TAPE over it |
| Pack | One roll, 10 ft x 150 ft |
| Part number | 5244100 |
Product documents: WR Meadows PERMINATOR EVOH Data Sheet (PDF)
Frequently Asked Questions
What is WR Meadows PERMINATOR EVOH used for?
It is an underslab gas and vapor barrier for contaminated brownfield sites and sites where the soil holds high levels of radon, methane and other gases. It restricts gases such as radon, methane, gasoline, solvents, oils and hydrocarbons from migrating into the slab, and it can be part of a passive or active control system across floors, walls and crawl spaces.
When should I use PERMINATOR EVOH instead of a standard vapor barrier?
PERMINATOR EVOH is intended for gas-contaminated sites. For standard vapor barrier applications that call for a 20 mil material, WR Meadows directs users to PERMINATOR 20 MIL instead.
How are PERMINATOR EVOH seams sealed?
Overlap all side and end seams 12 inches. Place PERMINATOR BUTYL TAPE underneath the overlap to hold the membrane in place, then tape the seam with 4 inch PERMINATOR EVOH TAPE. Keep the tape area free of dust, dirt and moisture so the pressure-sensitive tape bonds fully.
How much area does one roll cover?
The roll is 10 ft by 150 ft, about 1500 sq ft before overlaps. With 12 inch overlaps on every seam, net coverage depends on the layout of the pour area.
Should PERMINATOR EVOH run over the footing?
The most efficient method places it on top of the footing and against the vertical wall, sandwiched between the footing, wall and slab. Where the building code does not allow a barrier over the footing, WR Meadows approves the alternate method. Repair all penetrations, block outs and damaged areas before the slab is placed; see the WR Meadows installation guidelines for PERMINATOR EVOH penetrations.
What temperatures can PERMINATOR EVOH handle?
The data sheet lists a maximum static use temperature of 180 F (82 C) and a minimum static use temperature of -70 F (-57 C).
