WR Meadows PERMINATOR 15mil 12ft x 200ft RL

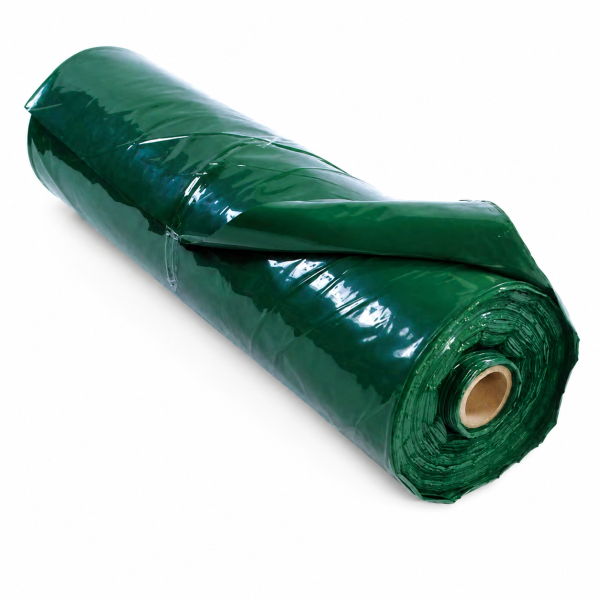

W. R. Meadows PERMINATOR 15 mil is a polyolefin underslab vapor barrier in a 12 ft by 200 ft roll. The sheet holds moisture and radon out of the slab and installs over tamped grade with no sand blinding.
- 15 mil thickness is marked on the sheet for jobsite ID
- ASTM E1745 Class A, B, and C barrier stays below 0.01 perms
- Overlap is 6 inches and seams tape with 4 inch PERMINATOR TAPE
$753.15
Availability:
In stock
( 12 Available )
W. R. Meadows PERMINATOR
W. R. Meadows PERMINATOR 15 mil is a polyolefin underslab vapor barrier for concrete slabs on tamped grade. It is used to cut moisture, water vapor, and radon through the slab. This roll is 12 ft by 200 ft. Seams overlap 6 inches and tape with 4 inch PERMINATOR TAPE. 15 mil is marked on the sheet. Puncture resistance is greater than 3200 grams. Water vapor permeance is 0.0063 perms.
Key Features
- Polyolefin resin holds moisture and radon out of the slab
- Puncture resistance is greater than 3200 grams on ASTM D1709 B
- Water vapor permeance is 0.0063 perms on ASTM E96
- Sheet installs over tamped grade with no sand blinding
- 15 mil thickness is marked on the membrane for visual ID
Applications
- Underslab pours are placed on tamped grade or compacted fill
- Crawlspace vapor work that needs a taped polyolefin sheet
- Protection course over waterproofing membranes
Technical Specifications
| Property | Value |
|---|---|
| Thickness | 15 mil |
| Roll | 12 ft x 200 ft |
| Seam overlap | 6 in |
| Seam tape | 4 in PERMINATOR TAPE |
| ASTM E1745 | Class A, B, and C |
| Water vapor permeance | 0.0063 perms (ASTM E96) |
| Puncture resistance | >3200 g (ASTM D1709 B) |
| Tensile strength | 72 lb/in (ASTM E154) |
| VOC | 0 g/L |
| Made in | America |
Frequently Asked Questions
What slab work is W. R. Meadows PERMINATOR used on?
Underslab construction on tamped grade or compacted fill. The sheet also works as a crawlspace barrier and as a protection course over waterproofing membranes.
What roll size is W. R. Meadows PERMINATOR?
This listing is a 12 ft by 200 ft roll of 15 mil sheet.
What seam detail does W. R. Meadows PERMINATOR need?
Overlap side and end joints 6 inches. Tape with 4 inch PERMINATOR TAPE on a clean, dry face.
What ASTM E1745 class does W. R. Meadows PERMINATOR meet?
Class A, B, and C. The 15 mil sheet also meets the ACI 302.2R 0.01 perm suggestion for moisture-sensitive flooring.
What puncture resistance does W. R. Meadows PERMINATOR have?
Greater than 3200 grams on ASTM D1709 Method B. The sheet is specified to take normal jobsite traffic without sand blinding.
What water-vapor permeance does W. R. Meadows PERMINATOR have?
0.0063 perms on ASTM E96. After wetting, soaking, heat, and soil exposure the rating stays at 0.0052 to 0.0057 perms.
