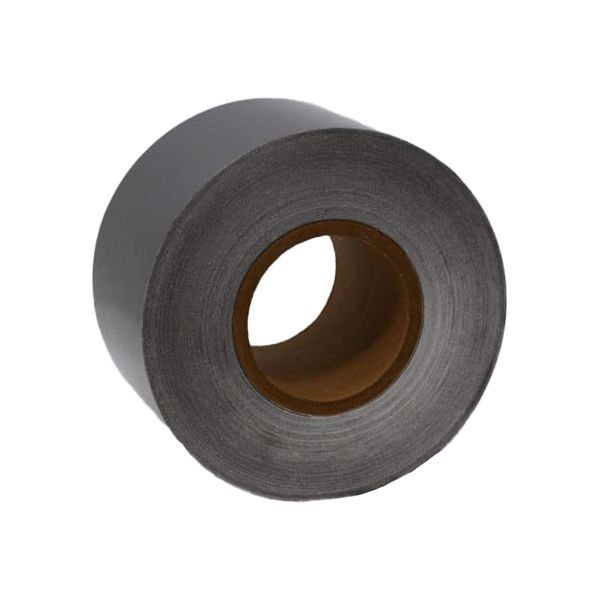

WR Meadows PERMINATOR EVOH TAPE 4 Inch x 160 ft Roll, Carton of 12
WR Meadows PERMINATOR EVOH TAPE is a single-sided, seven-layer gas barrier tape with an EVOH backing, sold as a carton of 12 rolls, each 4 inch x 160 ft. It seals overlaps, joints and penetrations in PERMINATOR EVOH installations.
- Backing helps block radon, methane and VOC migration
- Aggressive acrylic adhesive with a release liner
- One roll adheres approximately one roll of PERMINATOR EVOH
$2,570.90
Drop Shipped
WR Meadows PERMINATOR EVOH TAPE 4 Inch x 160 ft Roll, Carton of 12
WR Meadows PERMINATOR EVOH TAPE (part of the perminator line) is a single-sided, seven-layer gas barrier tape with a release liner for ease of installation. Its backing contains a layer of highly impermeable EVOH intended to block the migration of radon, methane and VOCs, and its aggressive acrylic adhesive bonds to PERMINATOR EVOH over a wide temperature range. It should be used in all PERMINATOR EVOH installations to seal overlaps, joints and penetrations where harmful gases could otherwise escape. This carton holds 12 rolls, each 4 inches (101.6 mm) wide and 160 ft (48.8 m) long, about 1920 LF of tape in total.
Key Features
- Single-sided, seven-layer tape with an EVOH gas barrier layer in the backing
- Helps block radon, methane and VOC migration
- Aggressive acrylic adhesive bonds to PERMINATOR EVOH over a wide temperature range
- Release liner for ease of installation
- Permeance of 0.014 g/(24h·100 in²) per ASTM E96 Procedure B
Applications
- Overlap seams in PERMINATOR EVOH gas vapor barrier
- Joints and terminations in PERMINATOR EVOH installations
- Sealing penetrations through PERMINATOR EVOH
- Brownfield and high radon or methane sites using the PERMINATOR EVOH system
Technical Specifications
| Property | Value |
|---|---|
| Type | Single-sided gas barrier tape with release liner |
| Backing | Seven-layer, with a highly impermeable EVOH layer |
| Adhesive | Aggressive acrylic |
| Roll size | 4 inch (101.6 mm) wide x 160 ft (48.8 m) long |
| Rolls per carton | 12 |
| Tape per carton | About 1920 LF |
| Coverage | One roll of tape adheres approximately one roll of PERMINATOR EVOH |
| Permeance (ASTM E96 Procedure B) | 0.014 g/(24h·100 in²) |
| Seams | Overlap PERMINATOR EVOH 12 inch (304.8 mm); PERMINATOR BUTYL TAPE under the lap |
| Pack | Carton of 12 rolls; price is per carton |
| Part number | 6045540 |
Product documents: WR Meadows PERMINATOR EVOH TAPE Data Sheet (PDF)
Frequently Asked Questions
What is WR Meadows PERMINATOR EVOH TAPE used for?
It seals overlaps, joints and penetrations in PERMINATOR EVOH underslab gas vapor barrier. WR Meadows says it should be used in all PERMINATOR EVOH installations so critical seams do not let harmful gases escape.
How much PERMINATOR EVOH TAPE do I need?
One roll of tape adheres approximately one roll of PERMINATOR EVOH, so one carton of 12 rolls covers about 12 rolls of membrane. Extra detailing at penetrations will add to that.
How is the tape installed on PERMINATOR EVOH seams?
Overlap all side and end seams of the membrane 12 inches. Place PERMINATOR BUTYL TAPE underneath the overlap to hold it in place, then tape the seam with 4 inch PERMINATOR EVOH TAPE. The adhesion area must be free of dust, dirt and moisture.
Is PERMINATOR EVOH TAPE the same as PERMINATOR BUTYL TAPE?
No. PERMINATOR BUTYL TAPE is a separate product that goes underneath the overlap to hold the laps in place. PERMINATOR EVOH TAPE is the single-sided gas barrier tape that goes on over the seam.
Does PERMINATOR EVOH TAPE block gases?
Its backing contains a layer of highly impermeable EVOH intended to block radon, methane and VOC migration. The data sheet lists a permeance of 0.014 g/(24h·100 in²) per ASTM E96 Procedure B.
Does PERMINATOR EVOH TAPE help with LEED?
The data sheet says it may help contribute to LEED credits EAp2 Minimum Energy Performance, EAc2 Optimize Energy Performance and MRc9 Construction and Demolition Waste Management.
