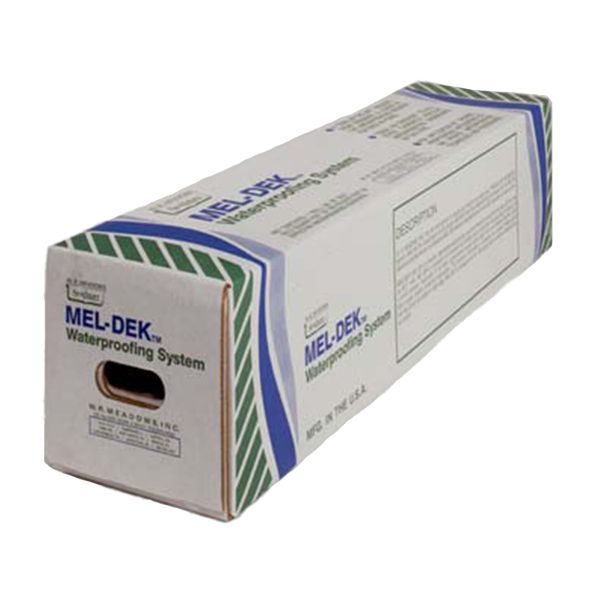

WR Meadows MEL-DEK Deck Waterproofing Membrane 38.5 Inch x 60 ft Roll
WR Meadows MEL-DEK is a 65 mil roll-type deck waterproofing membrane, a polymeric membrane laminated to a woven polypropylene carrier fabric, supplied in one 38.5 inch x 60 ft roll. It is intended for bridges, parking decks and other vehicular traffic structures that receive an asphalt concrete wearing course.
- Requires no protection course; withstands placement of hot asphalt overlays
- 3/4 inch membrane-to-membrane weld at seams
- 180 sq ft net coverage per roll (192.5 sq ft gross)
$314.66
Drop Shipped
WR Meadows MEL-DEK Deck Waterproofing Membrane 38.5 Inch x 60 ft Roll
WR Meadows MEL-DEK is a 65 mil roll-type waterproofing membrane made of a polymeric waterproofing membrane on a shrink-resistant, heavy-duty polypropylene woven carrier fabric, laminated together under controlled production. It is intended for bridges, parking decks and other vehicular traffic structures that will be overlaid with an asphalt concrete wearing course, in repair, maintenance or new construction. It needs no protection course and withstands the dynamic placement of hot asphalt overlays, and its 3/4 inch membrane-to-membrane weld at seams gives monolithic protection. This roll is 38.5 inches (0.98 m) wide by 60 ft (18.29 m) long and gives 180 sq ft of net waterproofing coverage.
Key Features
- Requires no protection course; withstands the dynamic placement of hot asphalt overlays
- 3/4 inch (19.1 mm) membrane-to-membrane weld at seams
- Meets ASTM D6153, Type III
- Puncture resistance of 243 lbf (ASTM E154)
- No cracking on a 180 degree bend at -15 F (ASTM D146)
Applications
- Bridge decks receiving an asphalt concrete overlay
- Parking decks receiving an asphalt wearing course
- Other vehicular traffic structures overlaid with asphalt concrete
- Repair, maintenance and new construction projects
Technical Specifications
| Property | Value |
|---|---|
| Construction | Polymeric waterproofing membrane laminated to a polypropylene woven carrier fabric |
| Thickness | 65 mils |
| Roll size | 38.5 inch (0.98 m) wide x 60 ft (18.29 m) long |
| Coverage per roll | 180 sq ft net (16.72 m²); 192.5 sq ft (17.9 m²) gross |
| Standard | ASTM D6153, Type III |
| Water vapor permeance (ASTM E96) | 0.10 perms |
| Tensile strength, membrane (ASTM D882) | 1616 psi MD; 1476 psi CMD |
| Elongation at break, membrane (ASTM D882) | 1468% MD; 1659% CMD |
| Puncture resistance (ASTM E154) | 243 lbf (1081 N) |
| Low temperature pliability (ASTM D146) | No cracking, 180 degree bend over a 1/4 inch mandrel at -15 F (-26.1 C) |
| Softening point (ASTM D36) | 200 F (93.3 C) |
| Apparent viscosity (ASTM D3236) | 1,300 cPs |
| Application temperature | Air and concrete surface 40 F (4 C) and higher, fair weather |
| Seams | Transverse: 2 1/2 inch shingle overlap with 3/4 inch weld; longitudinal: 6 inch overlap sealed with POINTING MASTIC |
| Asphalt overlay | Minimum 2 inch compacted; 290 F to 340 F at compaction |
| Pack | One roll, 38.5 inch x 60 ft |
| Part number | 5112060 |
Product documents: WR Meadows MEL-DEK Data Sheet (PDF)
Frequently Asked Questions
What is WR Meadows MEL-DEK used for?
MEL-DEK is a deck waterproofing membrane for bridges, parking decks and other vehicular traffic structures that receive an asphalt concrete wearing course. It suits repair, maintenance and new construction. For overlays other than asphalt, WR Meadows asks that you consult its Technical Service first.
How much area does one roll of MEL-DEK cover?
One 38.5 inch by 60 ft roll gives 180 sq ft of net waterproofing coverage, or 192.5 sq ft gross. Where a membrane of 125 mils or more is wanted, each roll is overlapped 51%.
How is MEL-DEK installed?
Prime all surfaces with MEL-PRIME, MEL-PRIME N.E. or MEL-PRIME W/B and let it dry tack-free; re-prime areas not covered within 24 hours. Put a DETAIL STRIP over nonworking joints or cracks wider than 3/16 inch. Lay MEL-DEK from the low point to the high point: transverse laps overlap 2 1/2 inches in shingle fashion after the white polyethylene strip is removed to expose the 3/4 inch rubberized asphalt weld, and longitudinal laps overlap 6 inches and are sealed with POINTING MASTIC. Hand-rub the membrane down, roll the whole surface with pressure, and seal all terminations with POINTING MASTIC.
What are the temperature and paving requirements?
Install in fair weather with air and concrete surface temperatures of 40 F (4 C) and higher. Place the asphalt overlay as soon as possible, at a minimum 2 inch compacted thickness, with the asphalt at 290 F to 340 F at compaction, using rubber tire paving equipment. An asphalt emulsion, water-based tack coat on the membrane gives a stronger bond to the overlay.
