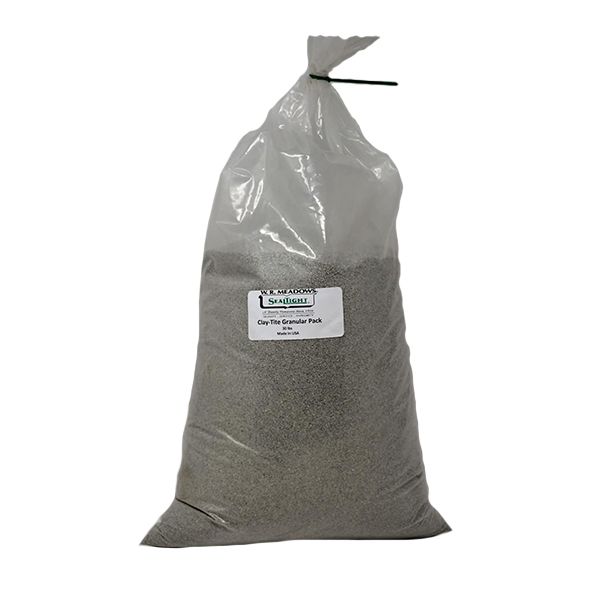

WR Meadows CLAY-TITE GRANULAR PACK 30 lb Bag
WR Meadows CLAY-TITE GRANULAR PACK is a bentonite clay granule detail material for CLAY-TITE waterproofing, supplied in a 30 lb bag. It is intended for cants at vertical-to-horizontal transitions, penetrations, voids and horizontal seams.
- About 25-30 linear ft per 30 lb bag
- 92% montmorillonite bentonite granules
- No further maintenance after installation
$53.23
Drop Shipped
WR Meadows CLAY-TITE GRANULAR PACK 30 lb Bag
WR Meadows CLAY-TITE GRANULAR PACK is a bag of bentonite clay granules used as a detail material with the CLAY-TITE line of waterproofing products. It is intended for below-grade structural slabs and for construction that uses lagging, concrete caisson or shotcrete retention walls. Typical uses are foundation wall bases, vertical-to-horizontal transitions, penetration details, void filling and horizontal application seams, where it helps complete a seamless CLAY-TITE installation. Detailed steps for backfilled wall, blindside and underslab work are in the CLAY-TITE installation guidelines from WR Meadows.
Key Features
- Bentonite clay granules, 92% montmorillonite
- Details penetrations and fills voids
- Helps complete a seamless CLAY-TITE installation
- Dispensed straight from the bag as a cant
- No further maintenance needed once installed
Applications
- Cants at foundation wall bases and vertical-to-horizontal transitions
- Filling voids around pipe penetrations under a CLAY-TITE collar
- Horizontal application seams
- Lagging, caisson and shotcrete retention wall construction
Technical Specifications
| Property | Value |
|---|---|
| Type | Bentonite clay granules (detail material) |
| Coverage | About 25-30 linear ft per 30 lb bag |
| Cant size | 1.5-2 Inch (38-50 mm) |
| Dry screen, 16 mesh | 100% |
| Dry screen, 10 mesh | 1.7% |
| Wet screen, 200 mesh | 1.3% |
| AFS grain fineness | 25 |
| Moisture | 8.2% |
| Montmorillonite | 92% |
| Pack | 30 lb (13.6 kg) bag |
| Part number | 5127030 |
Product documents: WR Meadows CLAY-TITE GRANULAR PACK Data Sheet (PDF)
Frequently Asked Questions
How much does one bag of WR Meadows CLAY-TITE GRANULAR PACK cover?
One 30 lb (13.6 kg) bag covers about 25-30 linear ft.
How is it installed?
Lay the bag on its side, cut an opening in the lower corner, and dispense a 1.5-2 Inch (38-50 mm) cant along vertical-to-horizontal transitions or on horizontal seams. No further maintenance is needed after installation.
Where is it used in a CLAY-TITE system?
At foundation wall bases, vertical-to-horizontal transitions, penetration details, void filling and horizontal seams. The CLAY-TITE data sheet calls for it, or CLAY-TITE MASTIC, to fill the void around a penetration before the membrane collar goes on.
How should the bags be stored and handled?
Keep the bags dry and away from moisture sources. The safety data sheet says the material will not support combustion and advises avoiding the dust if a bag is broken.
