Unisorb Red-Line Anchor Pads

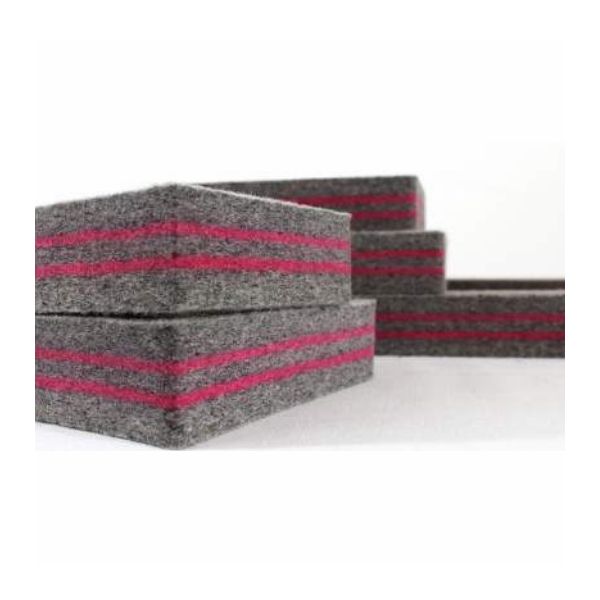

Unisorb Red-Line Anchor Pads are a felt pad used for the isolation of transmitted shock and vibration found with many types of machines and mounted equipment. Satisfies OSHA requirements for machinery installation.
- Improves equipment efficiency
- Reduces downtime, extends working life
- Prevents floor damage
Drop Shipped
SKU
Unisorb Red-Line Anchor Pads
Unisorb Red-Line Anchor Pads
Unisorb Red-Line Anchor Pads are engineered felt vibration isolation pads used under machine feet to reduce transmitted shock, vibration, and noise. They help keep light and medium-duty machines from creeping or walking and are resistant to most industrial chemicals, oils, and moisture. Red-Line pad materials and anchor bolts satisfy OSHA requirements for machinery installation, supporting safer operation, reduced downtime, and floor protection.
Key Features
- Felt pad material designed to absorb transmitted shock and vibration under machinery.
- Helps reduce transmitted noise and support more efficient equipment operation.
- Resistant or impervious to most industrial chemicals, oils, and moisture.
- Helps keep light and medium-duty machines from creeping or walking.
- Two material families available to match normal industrial or wet and exposed conditions.
- Pad material life expectancy may exceed the service life of the installed machinery.
- Supports floor protection and reduced downtime when properly specified and installed.
Applications
- Vibration isolation under the feet of light and medium-duty machines and mounted equipment.
- Installations where reduced vibration transmission and reduced noise are required.
- Normal industrial environments exposed to oils, cutting fluids, and coolants (wool fiber types).
- Wet, exposed-to-weather areas or environments with strong acids or bases (synthetic fiber types).
- Applications where correct pad selection by load range is needed to reduce walking or creeping.
Technical Specifications:
| Property | Value |
|---|---|
| Material Family (Normal Industrial) | Types H, HB, E, EB, D, DB (100 percent wool fiber) |
| Material Family (Wet or Exposed) | Types S, SB, F, FB (100 percent man-made fibers) |
| Chemical and Moisture Resistance | Highly resistant or impervious to most industrial chemicals, oils, and moisture |
| OSHA | Red-Line pads and anchor bolts satisfy OSHA requirements for machinery installation |
| Load Calculation (Imperial) | Weight (lbs per machine foot) divided by (foot length (in) x width (in)) equals psi |
| Load Calculation (Metric) | Weight (kg per machine foot) divided by (foot length (cm) x width (cm)) equals kg/cm2 |
Pad Type Selection (by load range):
| Application | 0-50 psi (0-3.5 kg/cm2) | 50-100 psi (3.5-7.0 kg/cm2) | 100-250 psi (7.0-17.5 kg/cm2) | Over 250 psi (Over 17.5 kg/cm2) |
|---|---|---|---|---|
| Extra Light | Neoprene; H-1/4 (6.4 mm); S-1/2 (12.7 mm) | Neoprene; E-1/2 (12.7 mm); S-1/2 (12.7 mm) | D-1/2 (12.7 mm); F-1/2 (12.7 mm) | Titan-1/2 (12.7 mm) |
| Normal | H-1/2 (12.7 mm); S-1/2 (12.7 mm) | E-1/2 (12.7 mm); F-1/2 (12.7 mm) | D-1/2 (12.7 mm); F-1/2 (12.7 mm) | Titan-1/2 (12.7 mm) |
| Walking Normal | HB-1/2 (12.7 mm); SB-1/2 (12.7 mm) | EB-1/2 (12.7 mm); FB-1/2 (12.7 mm) | DB-1/2 (12.7 mm); FB-1/2 (12.7 mm) | Titan-1/2 (12.7 mm) |
| Normal Heavy Impact | E-1 (25.4 mm); S-1 (25.4 mm) | E-1 (25.4 mm); F-1 (25.4 mm) | D-1 (25.4 mm); F-1 (25.4 mm) | Titan-1 (25.4 mm) |
| Walking Heavy Impact | EB-1 (25.4 mm); SB-1 (25.4 mm) | EB-1 (25.4 mm); FB-1 (25.4 mm) | DB-1 (25.4 mm); FB-1 (25.4 mm) | Titan-1 (25.4 mm) |
| Severe Horizontal | S-1/2 (12.7 mm); H-1/2 (12.7 mm) plus adhesive | E-1/2 (12.7 mm); F-1/2 (12.7 mm) plus adhesive | F-1/2 (12.7 mm); D-1/2 (12.7 mm) plus adhesive | Titan-1/2 (12.7 mm) plus adhesive |
Frequently Asked Questions
What are Unisorb Red-Line Anchor Pads used for?
They are felt vibration isolation pads used under machine feet to reduce transmitted shock, vibration, and noise.
How do Red-Line Anchor Pads help with machine walking or creeping?
The pads are job-engineered to reduce vibration transmission and help keep light and medium-duty machines from creeping or walking.
How do I select the correct pad type?
Determine the load in psi (or kg/cm2) using the load calculation, then select the recommended pad type and thickness from the pad type selection chart for the application and load range.
What is the difference between the wool fiber and synthetic fiber pad types?
Types H, HB, E, EB, D and DB are 100 percent wool fiber for normal industrial environments. Types S, SB, F and FB are 100 percent man-made fibers recommended for wet or exposed-to-weather applications or where strong concentrations of acids or bases will be encountered.
Do these pads satisfy OSHA requirements?
Red-Line pads and anchor bolts satisfy OSHA requirements for machinery installation when properly used.
