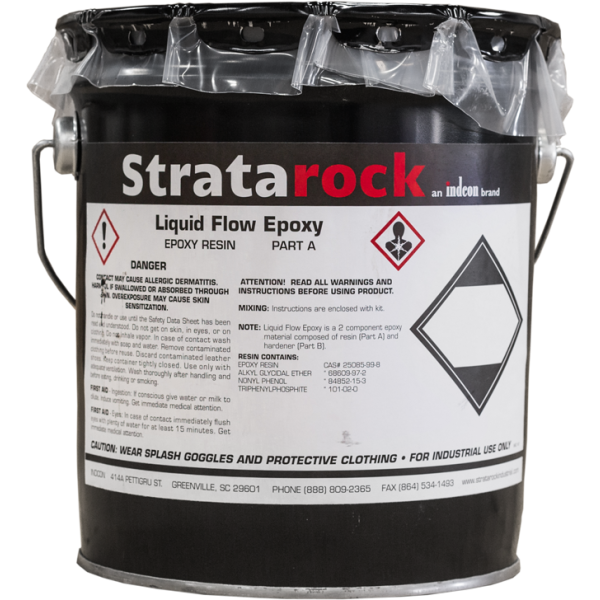

Stratarock Liquid Flow Epoxy .24 cu ft unit
Stratarock Liquid Flow Epoxy Grout is a two-component high-strength fast-setting epoxy grout in a 25 lb kit that yields 0.24 cu ft, used for grouting, regrouting, and anchoring equipment over long distances or tight clearances. Extremely low viscosity gives superior flow, leveling, and air release under machine bases.
- Moisture insensitive under equipment bases
- Forms come off after 8 hours at 77 F
- Resists vibration and impact on crane rails
$208.81
Availability:
Out of stock
Stratarock Liquid Flow Epoxy
Stratarock Liquid Flow Epoxy Grout is a two-component high-strength fast-setting epoxy grout in a 25 lb kit that yields 0.24 cu ft. It is used for grouting, regrouting, and anchoring equipment over long distances or tight clearances up to 1/2 inch. Extremely low viscosity gives superior flow, leveling, and air release, with strong vibration and impact resistance on machine bases, tower bases, and crane rails.
Key Features
- Two-component high-strength fast-setting epoxy grout
- Extremely low viscosity for long flow, leveling, and air release
- Used in clearances up to 1/2 inch
- Self-leveling and moisture insensitive
- Forms come off after a minimum of 8 hours at 77 F
- Strong vibration and impact resistance
Applications
- Equipment bases and sole plates
- Tower and turbine bases
- Bolt and bar anchoring
- Crane rails and heavy vibration
Technical Specifications
| Property | Value |
|---|---|
| Compressive strength, 24 hours | 9,000 psi |
| Compressive strength, full cure | 13,000 psi |
| Tensile strength | 5,400 psi |
| Flexural strength | 4,600 psi |
| Viscosity, mixed, 77 F | 1,650 cps |
| Pot life | 30 minutes at 77 F |
| Form wait | Minimum 8 hours at 77 F |
| Gel time, 1/4 inch | 5 to 7 hours at 77 F |
| Yield | 0.24 cu ft from a 25 lb kit |
| Shelf life | 1 year unopened at 75 F |
Product documents: Stratarock Liquid Flow Epoxy Grout Data Sheet (PDF)
Frequently Asked Questions
What equipment work uses Stratarock Liquid Flow Epoxy?
Grouting, regrouting, and anchoring of sensitive or heavy equipment under long distances or tight clearances up to 1/2 inch. Typical placements are machine bases, sole plates, tower and turbine bases, bolt anchoring, and crane rails.
What size is Stratarock Liquid Flow Epoxy?
The kit is 25 lb and yields 0.24 cu ft. Part A is resin and Part B is hardener.
What flow distance does Stratarock Liquid Flow Epoxy have?
With a 1/4 inch to 1/2 inch clearance, expect flows of approximately 4 feet with a 3 inch head. Mixed viscosity is 1,650 cps at 77 F.
What form wait does Stratarock Liquid Flow Epoxy have?
Leave forms in place a minimum of 8 hours at 77 F. Gel is 5 to 7 hours at 77 F in 1/4 inch thickness. Ready for service in 24 to 48 hours. Full cure may take 5 to 7 days.
What mixed viscosity does Stratarock Liquid Flow Epoxy have?
Typical Brookfield mixed viscosity is 1,650 cps (Sp. 3, 20 rpm, 77 F). Pot life is 30 minutes at 77 F. Installation and cure temperatures are 60 F to 90 F, with grout, surface, and air at a minimum of 70 F for best performance.
What 24-hour compressive strength does Stratarock Liquid Flow Epoxy have?
Typical laboratory compressive strength is 9,000 psi at 24 hours (ASTM C-579). Full-cure compressive strength is 13,000 psi. Tensile strength is 5,400 psi. Expect reasonable variation under field conditions.
