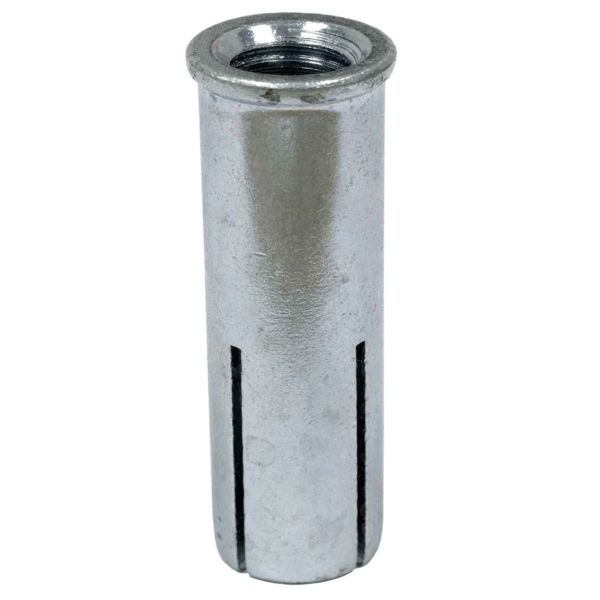

Simpson Strong-Tie Drop-In (DIAB) Internally Threaded Anchor Lipped 1/4 Case 100 DIABL25
DIAB 1/4 in lipped drop-in, model DIABL25. Box of 100. Drill 3/8 in. UNC 20. Lip seats at the surface.
- 1/4 in lipped, model DIABL25, box of 100
- Drill 3/8 in; lip seats at the surface
- No live 1/4 flush DIAB
$21.14
Availability:
In stock
Drop Shipped DIAB Lipped Drop-In 1/4, DIABL25
DIABL25 is the 1/4 in lipped drop-in. The lip stops the insert at the surface. Zinc-plated carbon steel for solid concrete. Box of 100. Drill 3/8 in to the 1 in body length and drive the plug until the setting-tool shoulder seats. UNC 20 threads. Live lipped sizes are 1/4, 3/8, and 1/2. There is no live 1/4 flush DIAB. Follow the current Simpson Strong-Tie drop-in data on the job.
Looking for another size?
Key Features
- Lipped drop-in so the insert stops at the surface
- 1/4 in, model DIABL25, box of 100
- Drill 3/8 in to 1 in body length; UNC 20
- Set with the matching setting tool until the shoulder seats
- Live lipped sizes 1/4, 3/8, and 1/2
Applications
- Flush-finish inserts where a lip is specified
- 1/4 in UNC rod in concrete
- Jobs that want the insert stopped at the surface
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | DIAB Lipped |
| Model | DIABL25 |
| Rod | 1/4 in UNC 20 |
| Drill bit | 3/8 in |
| Body length | 1 in |
| Box qty | 100 |
| Style | Lipped |
| Other lipped | 3/8 and 1/2, live |
| Not | Flush UNC |
Frequently Asked Questions
Lipped or flush?
Lipped. There is no live 1/4 flush DIAB.
How do I set it?
Drill 3/8 in to 1 in, seat the lip, drive the setting tool until the shoulder seats.
What other lipped sizes are live?
1/4, 3/8, and 1/2. No live 5/8 or 3/4 lipped.
Coil-thread 1/4?
Not live.
Who makes it?
Simpson Strong-Tie.
