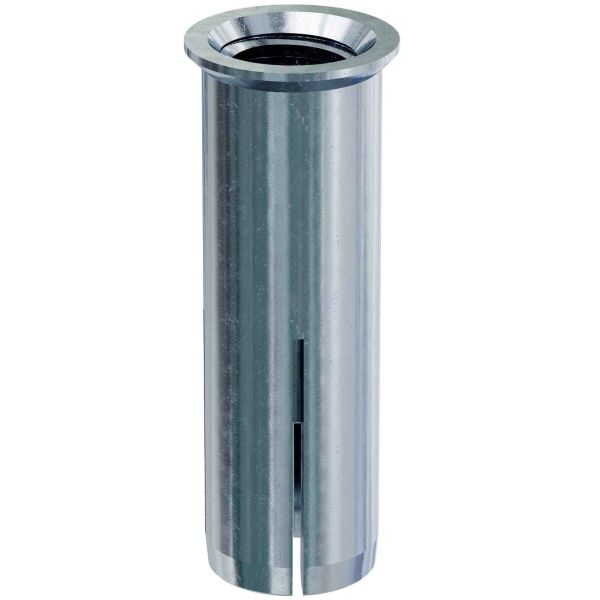

Simpson Strong-Tie Drop-In (DIAB) Internally Threaded Anchor Lipped 1/2 Case 50 DIABL50
DIAB 1/2 in lipped drop-in, model DIABL50. Box of 50. Drill 5/8 in. UNC 13. Lip seats at the surface.
- 1/2 in lipped, model DIABL50, box of 50
- Drill 5/8 in; lip seats at the surface
- Flush UNC and coil-thread 1/2 in listed separately
$36.36
Availability:
In stock
Drop Shipped DIAB Lipped Drop-In 1/2, DIABL50
DIABL50 is the 1/2 in lipped drop-in. The lip stops the insert at the surface. Zinc-plated carbon steel for solid concrete. Box of 50. Drill 5/8 in to the 2 in body length and drive the plug until the setting-tool shoulder seats. UNC 13 threads. Live lipped sizes are 1/4, 3/8, and 1/2. Flush UNC and coil-thread 1/2 in inserts are listed separately.
Looking for another size?
Key Features
- Lipped drop-in so the insert stops at the surface
- 1/2 in, model DIABL50, box of 50
- Drill 5/8 in to 2 in body length; UNC 13
- Set with the matching setting tool until the shoulder seats
- Flush UNC and coil-thread 1/2 in listed separately
Applications
- Flush-finish inserts where a lip is specified
- 1/2 in UNC rod in concrete
- Jobs that want the insert stopped at the surface
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | DIAB Lipped |
| Model | DIABL50 |
| Rod | 1/2 in UNC 13 |
| Drill bit | 5/8 in |
| Body length | 2 in |
| Box qty | 50 |
| Style | Lipped |
| Other lipped | 1/4 and 3/8, live |
| Not | Flush UNC or coil-thread |
Frequently Asked Questions
Lipped or flush?
Lipped. The lip stops at the surface. Flush UNC DIAB50 is listed separately.
How do I set it?
Drill 5/8 in to 2 in, seat the lip, drive the setting tool until the shoulder seats.
What other lipped sizes are live?
1/4, 3/8, and 1/2. No live 5/8 or 3/4 lipped.
Coil-thread?
Coil-thread DIAB50C is listed separately.
Who makes it?
Simpson Strong-Tie.
