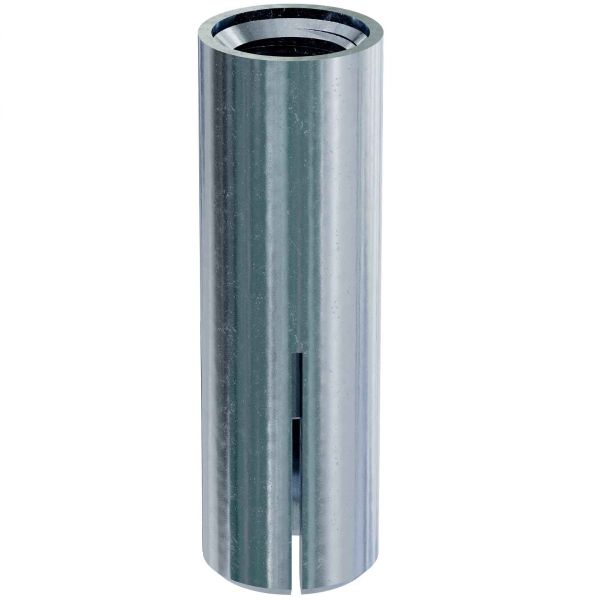

Simpson Strong-Tie Drop-In (DIAB) Internally Threaded Anchor Coil Thread 3/4 Case 20 DIAB75C
DIAB 3/4 in coil-thread drop-in, model DIAB75C. Box of 20. Drill 1 in. Takes 3/4 in coil rod, not UNC.
- 3/4 in coil-thread, model DIAB75C, box of 20
- Drill 1 in; coil rod 4 1/2 threads per inch
- Flush UNC 3/4 in listed separately
$63.00
Availability:
In stock
Drop Shipped DIAB Coil-Thread Drop-In 3/4, DIAB75C
DIAB75C is the 3/4 in coil-thread drop-in, not UNC. Zinc-plated carbon steel for solid concrete. Box of 20. Drill 1 in to the 3 1/8 in body length, set flush, and drive the plug until the setting-tool shoulder seats. It takes 3/4 in coil rod (4 1/2 threads per inch). The 1/2 in coil-thread is listed as the other size. Flush UNC 3/4 in is listed separately.
Looking for another size?
Key Features
- Coil-thread drop-in for 3/4 in coil rod
- Model DIAB75C, box of 20
- Drill 1 in to 3 1/8 in body length
- Set with the matching setting tool until the shoulder seats
- Flush UNC DIAB75 listed separately
Applications
- Coil-thread rod in concrete
- Forming and coil-rod hangers
- Jobs specified 3/4 in coil, not UNC
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | DIAB Coil-Thread |
| Model | DIAB75C |
| Rod | 3/4 in coil, 4 1/2 tpi |
| Drill bit | 1 in |
| Body length | 3 1/8 in |
| Box qty | 20 |
| Style | Coil-thread |
| Other coil size | 1/2 in DIAB50C, live |
| Not | UNC flush or lipped |
Frequently Asked Questions
UNC or coil?
Coil. DIAB75C takes 3/4 in coil rod. Flush UNC DIAB75 is listed separately.
How do I set it?
Drill 1 in to 3 1/8 in, tap flush, drive the setting tool until the shoulder seats.
Other coil size?
The 1/2 in coil-thread DIAB50C is listed separately.
Lipped 3/4?
Not live.
Who makes it?
Simpson Strong-Tie.
