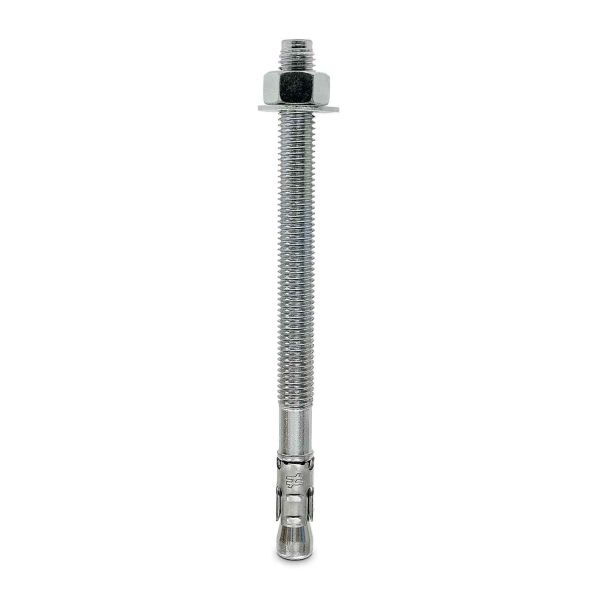

Simpson Strong-Tie Strong-Bolt 2 Wedge Anchor 5/8 X 5 Case 20 STB2-62500
Strong-Bolt 2 5/8 x 5 wedge anchor, model STB2-62500. Zinc-plated carbon steel. Box of 20 with nut and washer.
- 5/8 x 5, model STB2-62500, box of 20
- Drill 5/8 in; tighten to 90 ft-lbf; no impact wrench
- Same 5/8 in material as the 6 in length
$38.38
Availability:
In stock
Drop Shipped Strong-Bolt 2 Wedge Anchor 5/8 x 5, STB2-62500
Strong-Bolt 2 is a zinc-plated carbon steel wedge anchor for cracked and uncracked concrete and for masonry. This 5/8 x 5, model STB2-62500, ships a 20-count box with nut and washer. Drill a 5/8 in hole, drive until the washer seats, then tighten to 90 ft-lbf. Do not use an impact wrench. The same 5/8 in material is also the 6 in length. 1/2 in and 3/4 in Strong-Bolt 2, and Titen HD screws, are listed separately.
Looking for another size?
Key Features
- Wedge anchor for cracked and uncracked concrete
- Masonry too
- 5/8 x 5, model STB2-62500, box of 20 with nut and washer
- Drill 5/8 in; fixture hole 11/16 in; tighten to 90 ft-lbf
- Do not use an impact wrench
- Same 5/8 in material as the 6 in length; 1/2 and 3/4 listed separately
Applications
- Sill plates, ledgers, and post bases
- Seating, holdowns, and equipment bases
- Jobs specified a 5/8 in wedge, not a screw
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | Strong-Bolt 2 |
| Model | STB2-62500 |
| Size | 5/8 x 5 |
| Type | Wedge |
| Coating | Zinc-plated carbon steel |
| Box qty | 20 |
| Drill bit | 5/8 in |
| Install torque | 90 ft-lbf |
| Thread length | 2 15/16 in |
| Fixture hole | 11/16 in |
| Other 5/8 in | 6 in, live |
Frequently Asked Questions
What is this?
A 5/8 x 5 Strong-Bolt 2 wedge anchor, model STB2-62500, in a 20-count box with nut and washer. Zinc-plated carbon steel.
How do I install it?
Drill a 5/8 in ANSI hole to depth, blow it clean (overhead can stay dusty), drive until the washer seats, then tighten to 90 ft-lbf. Do not use an impact wrench.
Is this a Titen HD?
No. Titen HD is a screw anchor. Strong-Bolt 2 is a wedge. They are listed separately.
What other 5/8 in length is live?
The 6 in 5/8 in Strong-Bolt 2. 1/2 in and 3/4 in Strong-Bolt 2 are listed separately.
Who makes it?
Simpson Strong-Tie.
