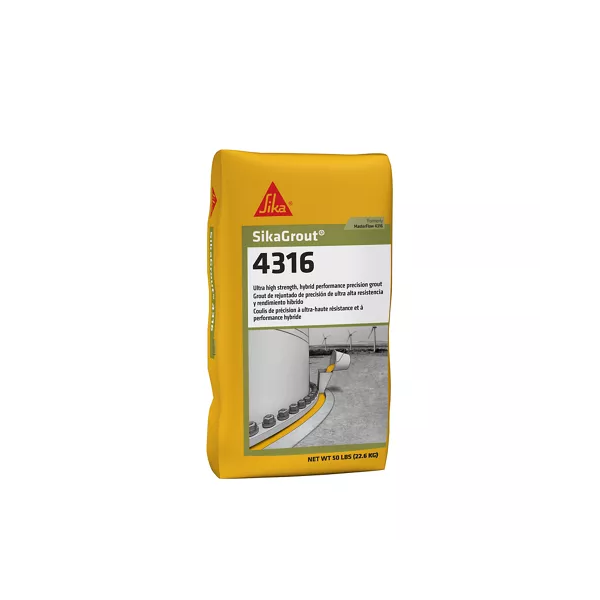

Sika SikaGrout 4316 50lb Bag

SikaGrout 4316 is an ultra high-strength, hybrid performance, high-precision grout that performs well within a wide variety of application and service temperatures. The superior performance of SikaGrout 4316 lies in its novel hydraulic binder with premium mineral aggregates which, when mixed with water, produces a flowable and pumpable grout that can be installed in temperatures ranging from 35 to 100 °F (2 to 38 °C).

Meets the requirements of ASTM C1107 at recommended consistencies.
High early strength with low creep for rapid turnaround—up to 4,300 psi at 8 hours
Excellent effective bearing area (95%) for even load distribution

$62.40

Availability: In stock ( 70 Available )

SKU

14940

SikaGrout 4316 – Ultra High-Strength Precision Grout (50 lb Bag)

SikaGrout 4316 is an ultra-high-strength, cementitious precision grout formulated for superior performance in a wide range of demanding applications. Designed with a novel hydraulic binder and premium aggregates, it provides excellent early and ultimate strength, fatigue resistance, and exceptional effective bearing area (>95%). It is ideal for grouting compressors, pump bases, equipment foundations, and anchor bolts. With excellent flowability and pumpability, SikaGrout 4316 performs reliably in both hot and cold weather conditions and can withstand service temperatures up to 1000°F (538°C). This non-shrink grout meets ASTM C1107 standards and is trusted in critical applications such as wind turbine base grouting, making it an ideal choice for industrial and structural use.

Key Features:

High early compressive strength – up to 4,300 psi in 8 hours
Ultimate strength up to 17,000 psi at 28 days
Excellent fatigue resistance – DNV tested for wind turbine grouting
Effective bearing area >95%
Non-shrink with positive expansion (ASTM C1090)
Withstands service temperatures up to 1000°F (538°C)
Pumpable and flowable for easy placement
Performs in temperatures from 35°F to 100°F
Freeze/thaw stable with low permeability
One-component for simple mixing and application

Applications:

Machinery and equipment bases
Compressors, pump and tank bases
Structural grouting in hot or cold environments
Wind turbine baseplates and anchor rods
Drive motors, conveyors, and foundations
Grouting anchor bolts and rebar

Technical Specifications:

Property	Value
Packaging	50 lb bag
Compressive Strength (72°F)	8 hrs: 4,300 psi, 1 day: 8,000 psi, 28 days: 16,000 psi
Effective Bearing Area	Greater than 95% (ASTM C1339)
Density (72°F)	142 lb/ft³ (2,275 kg/m³)
Set Time (Initial/Final)	180 min / 210 min
Thermal Conductivity	2.1 W/m·K at 28 days
Freeze-Thaw Stability	>95% durability factor (ASTM C666)
Thermal Expansion	5.7 x 10⁻⁶ in/in/°F
Yield	0.39 ft³ per 50 lb bag (using 0.72 gal water)

Frequently Asked Questions:

What temperatures can SikaGrout 4316 be used in?
It can be installed in temperatures ranging from 35°F to 100°F and withstands service temperatures up to 1000°F.

Can this grout be pumped?
Yes, SikaGrout 4316 is flowable and pumpable for easy application in large or hard-to-reach areas.

Is SikaGrout 4316 non-shrink?
Yes, it exhibits positive expansion per ASTM C1090 and provides a non-shrink formulation ideal for structural load transfer.
