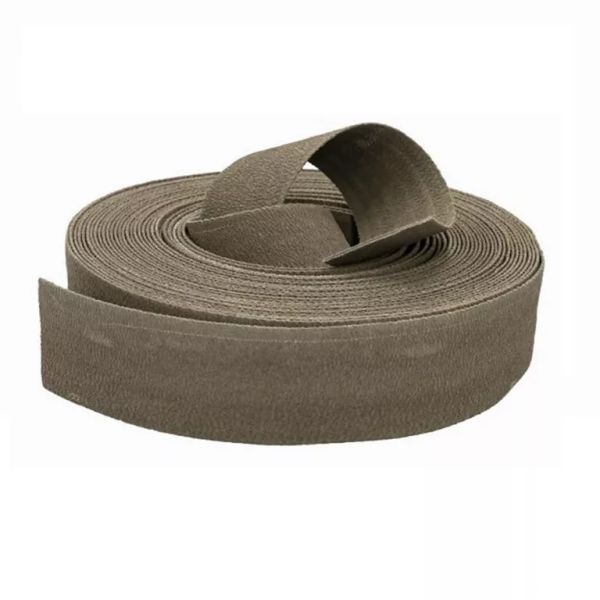

Sika Greenstreak Waterbar FB-125 164ft Roll 674002
Sika Greenstreak Waterbar FB-125 is a hybrid FPO waterstop in a 164 ft roll for construction joints. The rough face bonds in fresh concrete so lateral water cannot travel along the joint.
- Fully bonded FPO waterstop for construction joints
- 164 ft roll reduces the number of splices
- Embeds in fresh concrete to stop lateral underflow
$1,111.44
Availability:
In stock
( 2 Available )
Sika Greenstreak Waterbar FB-125
Sika Greenstreak Waterbar FB-125 is a hybrid FPO waterstop with a rough textured face that bonds in fresh concrete. This 164 ft (50 m) roll (part 674002) is an internal waterstop for construction joints in basements, tanks, reservoirs, and retaining walls. Embed a minimum of 1 in so the bonded seal stops lateral water underflow along the joint with no extra recess in the steel.
Key Features
- Hybrid flexible polyolefin (FPO) waterstop
- Light grey, rough textured face
- 164 ft (50 m) roll, part 674002
- Used as an internal waterstop in watertight concrete
- Bonds in fresh concrete to stop lateral underflow
- Long roll reduces splices; no extra recess in the steel
Applications
- Construction joints in basements and underground structures
- Water-retaining tanks, reservoirs, and treatment plants
- Swimming pools and retaining walls
- Slab-to-slab and wall-to-wall construction joints
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika Greenstreak |
| Product | Waterbar FB-125 |
| Part no. | 674002 |
| Unit | 164 ft (50 m) roll |
| Chemistry | Hybrid flexible polyolefin (FPO) |
| Color | Light grey, rough textured |
| Width | > 120 mm (EN 1849-2) |
| Thickness | > 3.00 mm (EN 1849-2) |
| Shore A | 65 +/- 3 (ASTM D2240) |
| Elongation | >= 375% (ASTM D638) |
| Lateral water | Pass, 7 bar / 7 days (ASTM D5385 modified) |
| Min. embedment | 1 in into fresh concrete |
Product documents: Sika Waterbar FB-125 Product Data Sheet (PDF)
Frequently Asked Questions
What joints suit Sika Greenstreak Waterbar FB-125?
Construction joints in watertight concrete: basements, tanks, treatment plants, pools, reservoirs, and retaining walls.
What size is Sika Greenstreak Waterbar FB-125?
The roll is 164 ft (50 m), part 674002, width greater than 120 mm and thickness greater than 3 mm.
What embedment does Sika Greenstreak Waterbar FB-125 need?
A minimum of 1 in into fresh concrete so water cannot travel laterally along the joint.
What chemistry is Sika Greenstreak Waterbar FB-125?
Hybrid flexible polyolefin (FPO) with a rough textured face that becomes fully bonded in the cured concrete.
What lateral water test does Sika Greenstreak Waterbar FB-125 pass?
ASTM D5385 modified: pass at 7 bar for 7 days. Peel adhesion is at least 22 lbf-in (ASTM D903).
What splice method does Sika Greenstreak Waterbar FB-125 use?
Thermal welding, or adhered with SikaProof Tape A+N. No extra recess or special reinforcement detailing is required.
