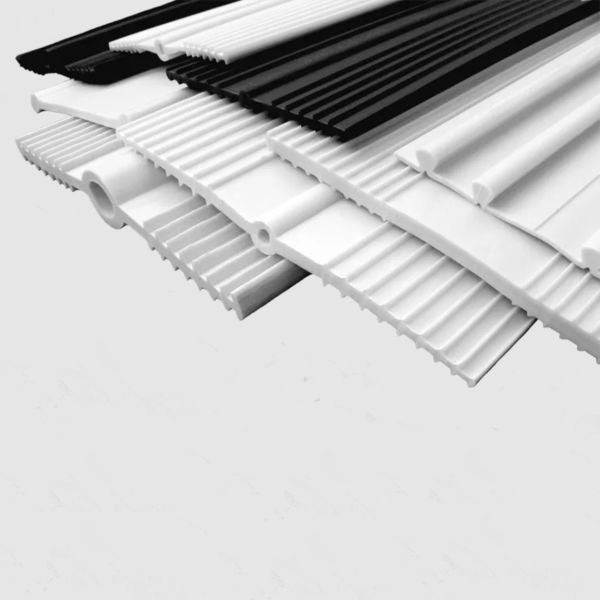

Sika Greenstreak Flexible PVC Waterstop Ribbed Centerbulb 701 4in x 3/16in TRCB 100ft Roll 419427
Sika Greenstreak 701 is a flexible PVC ribbed-centerbulb waterstop in a 4 in x 3/16 in, 100 ft roll for moving concrete joints. The centerbulb takes lateral, transverse, and shear movement while the ribs stay embedded in the pour.
- Ribbed flanges stay embedded in the concrete pour
- Centerbulb accommodates joint movement
- NSF/ANSI 61 for potable water contact
$202.31
Availability:
In stock
( 5 Available )
Sika Greenstreak 701
Sika Greenstreak 701 is a flexible PVC waterstop, ribbed centerbulb, for moving concrete joints. It is used at water and wastewater plants, lock and dam systems, reservoirs, flood walls, retaining walls, foundations, tunnels, culverts, bridge abutments, tanks, and slabs on ground. It is placed in the joint before the concrete. The centerbulb accommodates lateral, transverse, and shear movement.
Key Features
- Ribbed flanges stay embedded in the concrete pour
- Centerbulb accommodates joint movement
- Watertight diaphragm through the joint
- NSF/ANSI 61 for potable water contact
- Meets CRD-C 572-74
Applications
- Water and wastewater plants.
- Lock and dam systems, reservoirs, and flood walls.
- Retaining walls, foundations, tunnels, and culverts.
- Bridge abutments, tanks, and slabs on ground.
Technical Specifications
| Property | Value |
|---|---|
| Pack | 4 in x 3/16 in, 100 ft roll |
| Weight | 0.42 lb/ft (0.63 kg/m) |
| Size | 4 in x 3/16 in; centerbulb 3/16 in ID x 3/8 in OD |
| Head | 65 ft (194 kPa), ultimate; apply a safety factor |
| Shore A | 79 ± 3, ASTM D2240 |
| Tensile | 2000 psi min, ASTM D638 |
| Elongation | 350%, ASTM D638 |
| Tear | 300 lb/in min, ASTM D624 |
| Low-temperature brittleness | passes at -35 F, ASTM D746 |
| NSF/ANSI | Standard 61 |
Documents
Greenstreak PVC Waterstop Product Data Sheet
Frequently Asked Questions
What moving joints is Sika Greenstreak 701 used on?
It seals moving joints in water and wastewater plants, lock and dam systems, reservoirs, flood walls, retaining walls, foundations, tunnels, culverts, bridge abutments, tanks, and slabs on ground. The ribbed-centerbulb profile is placed in the joint before the pour so the PVC forms a watertight diaphragm across the movement.
What size is Sika Greenstreak 701?
The profile is 4 in wide by 3/16 in thick on a 100 ft roll. The centerbulb is 3/16 in ID by 3/8 in OD, and the strip runs approximately 0.42 lb/ft.
What movement does the Sika Greenstreak 701 centerbulb take?
The hollow centerbulb accommodates lateral, transverse, and shear movement at construction and expansion joints while the ribbed flanges stay embedded in the concrete on each side of the joint.
What potable-water listing does Sika Greenstreak 701 carry?
It meets NSF/ANSI Standard 61 for potable water contact, so it can be specified where drinking-water contact is required.
What Army Corps specification does Sika Greenstreak 701 meet?
It meets the physical property requirements of Army Corps of Engineers PVC Waterstop Specification CRD-C 572-74.
What Shore A hardness and tensile strength does Sika Greenstreak 701 meet?
Shore A hardness is 79 ± 3 by ASTM D2240. Tensile strength is 2,000 psi minimum and elongation is 350% by ASTM D638, with tear strength 300 lb/in minimum by ASTM D624.
