Sika Greenstreak Speed Dowel 3/4 x 24 – Carton 200
Sika Greenstreak Speed Dowel PSD12/#5TX is a carton of 200 sleeves for #5 rebar or 3/4 in smooth 24 in dowels. The 12 in sleeve holds alignment so construction joints transfer load without a drilled first pour.
- Slip-dowel sleeve for #5 rebar or 3/4 in smooth 24 in bars
- 12 in sleeve keeps dowels aligned for load transfer
- Carton of 200 sleeves for slab-on-ground joint work
$375.88
Availability:
Out of stock
Sika Greenstreak Speed Dowel PSD12/#5TX

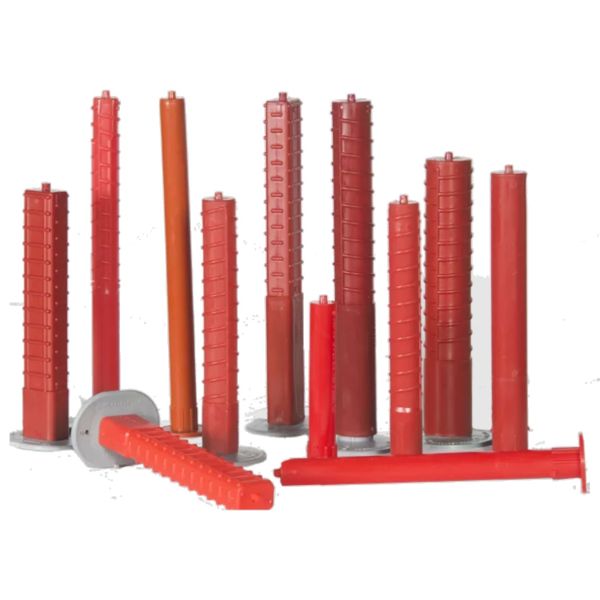

Sika Greenstreak Speed Dowel is a polypropylene slip-dowel sleeve that keeps round dowels aligned for load transfer in construction joints. This carton of 200 PSD12/#5TX sleeves (part 419194) takes #5 rebar or 3/4 in smooth dowels 24 in long with a 12 in sleeve. Nail the reusable base to the form, tap the sleeve onto the base, and pour; after strip the second-side dowel inserts without drilling the first slab.
Key Features
- Speed Dowel sleeve PSD12/#5TX
- Fits 3/4 in smooth or #5 rebar x 24 in
- Sleeve length 12 in; corresponding base PSD/#5BX
- Carton of 200 sleeves
- Used for load transfer in slabs on grade
- Eliminates drilled first-pour dowel installs
Applications
- Construction joints in industrial concrete slabs
- Industrial floors and warehouse slabs
- Pavement and site slabs needing load transfer
- Round-dowel joints using #5 rebar or 3/4 in smooth bar
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika Greenstreak |
| Product | Speed Dowel PSD12/#5TX |
| Part no. | 419194 |
| Unit | Carton of 200 sleeves |
| Dowel size | #5 rebar or 3/4 in smooth x 24 in |
| Sleeve length | 12 in |
| Base | PSD/#5BX |
| Material | 100% polypropylene |
| Sleeve thickness | 0.125 in |
| Compressibility | 5,500-8,000 psi (ASTM D695) |
Product documents: Sika Speed Dowel Systems Brochure (PDF)
Frequently Asked Questions
What bars fit Sika Greenstreak Speed Dowel PSD12/#5TX?
#5 rebar or 3/4 in smooth dowels 24 in long, with a 12 in sleeve.
What size is Sika Greenstreak Speed Dowel PSD12/#5TX?
The carton is 200 sleeves, part 419194.
What joint work uses Sika Greenstreak Speed Dowel PSD12/#5TX?
Construction joints in slabs on grade that need aligned slip dowels for positive load transfer.
What sleeve length is Sika Greenstreak Speed Dowel PSD12/#5TX?
12 in; the matching base is PSD/#5BX. The 9 in PSD09/#5TX sleeve is the 18 in dowel sibling.
What first-pour drilling does Sika Greenstreak Speed Dowel PSD12/#5TX replace?
The sleeve is nailed to the form and poured in place, so the second-side dowel inserts after strip without drilling the first slab.
What base goes with Sika Greenstreak Speed Dowel PSD12/#5TX?
Corresponding base PSD/#5BX from the Speed Dowel round-dowel table.
