Sika Greenstreak Speed Dowel #5 Rebar or 3/4in Smooth x 18in Case 200 PSD09/#5TX 419184
Sika Greenstreak Speed Dowel PSD09/#5TX is a case of 200 sleeves for #5 rebar or 3/4 in smooth 18 in dowels. The 9 in sleeve holds alignment so slab-on-ground joints transfer load without a drilled first pour.
- Slip-dowel sleeve for #5 rebar or 3/4 in smooth 18 in bars
- 9 in sleeve keeps dowels aligned for load transfer
- Case of 200 sleeves for slab-on-ground joint work
$380.00
Availability:
In stock
( 2 Available )
Sika Greenstreak Speed Dowel PSD09/#5TX

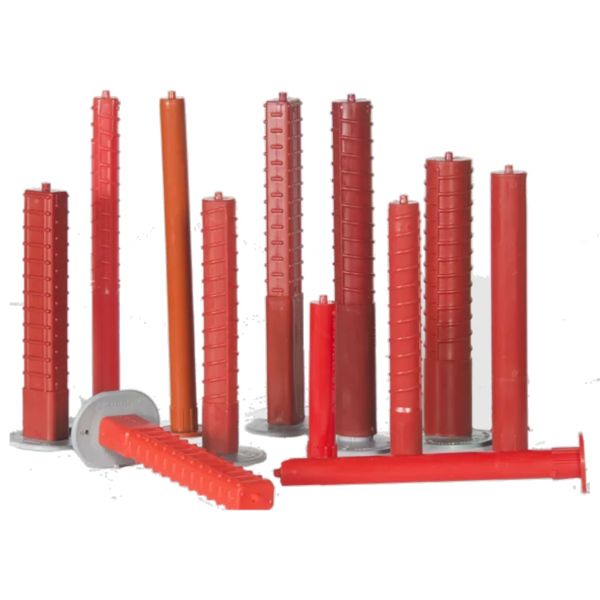

Sika Greenstreak Speed Dowel is a slip-dowel sleeve system that keeps round dowels aligned for load transfer in slab-on-ground joints. This case of 200 PSD09/#5TX sleeves (part 419184) takes #5 rebar or 3/4 in smooth dowels 18 in long with a 9 in sleeve. Nail the base to the form, slide the sleeve on, and pour; the second-side dowel inserts after strip without drilling the first slab.
Key Features
- Speed Dowel sleeve PSD09/#5TX
- Fits 3/4 in smooth or #5 rebar x 18 in
- Sleeve length 9 in; corresponding base PSD/#5BX
- Case of 200
- Positive load transfer in slab-on-ground joints
- Eliminates drilled first-pour dowel installs
Applications
- Construction joints in industrial concrete slabs
- Industrial floors and warehouse slabs
- Pavement and site slabs needing load transfer
- Round-dowel joints using #5 rebar or 3/4 in smooth bar
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika Greenstreak |
| Product | Speed Dowel PSD09/#5TX |
| Part no. | 419184 |
| Unit | Case of 200 sleeves |
| Dowel size | #5 rebar or 3/4 in smooth x 18 in |
| Sleeve length | 9 in |
| Base | PSD/#5BX |
| System | Slip-dowel installation for slabs on grade |
Product documents: Sika Speed Dowel Systems Brochure (PDF)
Frequently Asked Questions
What bars fit Sika Greenstreak Speed Dowel PSD09/#5TX?
#5 rebar or 3/4 in smooth dowels 18 in long, with a 9 in sleeve.
What size is Sika Greenstreak Speed Dowel PSD09/#5TX?
The case is 200 sleeves, part 419184.
What joint work uses Sika Greenstreak Speed Dowel PSD09/#5TX?
Slab-on-ground construction joints that need aligned slip dowels for positive load transfer.
What sleeve length is Sika Greenstreak Speed Dowel PSD09/#5TX?
9 in; the matching base is PSD/#5BX. The 12 in PSD12/#5TX sleeve is the 24 in dowel sibling.
What first-pour drilling does Sika Greenstreak Speed Dowel PSD09/#5TX replace?
The sleeve is nailed to the form and poured in place, so the second-side dowel inserts after strip without drilling the first slab.
What base goes with Sika Greenstreak Speed Dowel PSD09/#5TX?
Corresponding base PSD/#5BX from the Speed Dowel round-dowel table.
