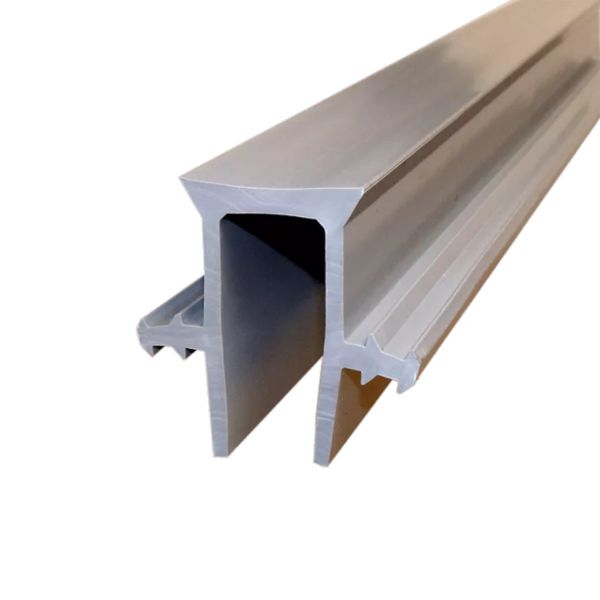

Sika Greenstreak G-Seal 610 3/4in x 2in Gray Paving Cap 10ft
Sika Greenstreak G-Seal 610 is a gray modified PVC paving cap in a 10 ft piece for 3/4 in expansion board. The 2 in tall profile covers the board before the pour and keeps pavement joints clean.
- 2 in tall profile for 3/4 in expansion board
- Installs before the pour with staples or nails
- Keeps debris and fluid out of pavement joints
$32.24
Drop Shipped
Sika Greenstreak G-Seal 610
Sika Greenstreak G-Seal 610 is a gray modified PVC paving cap that sits over expansion board in concrete pavement joints. This 3/4 in by 2 in profile ships as a 10 ft piece (part 419331) and is 2 in tall for 3/4 in board. Staple or nail it to the board before the pour so the cap keeps debris out of the joint and cuts a later sealant trip. No special tools are needed, and the cap stays maintenance-free in service.
Key Features
- Modified PVC paving cap, profile 610
- 2 in tall for 3/4 in expansion board
- Gray color; 10 ft piece
- Shore A hardness 81 +/- 3 (ASTM D2240)
- Tensile strength 2,350 psi min (ASTM D412)
- Elongation 375% (ASTM D412)
Applications
- Control joints in concrete pavement
- Expansion joints in concrete pavement
- Construction joints in concrete pavement
- Radius forming for pavement joints
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika Greenstreak |
| Product | G-Seal 610 Paving Cap |
| Part no. | 419331 |
| Unit | 10 ft piece |
| Profile | 3/4 in x 2 in, 2 in tall for 3/4 in board |
| Color | Gray |
| Chemistry | Modified PVC paving cap |
| Shore A | 81 +/- 3 (ASTM D2240) |
| Tensile strength | 2,350 psi min (ASTM D412) |
| Elongation | 375% (ASTM D412) |
Product documents: G-Seal Paving Cap Product Data Sheet (PDF)
Frequently Asked Questions
What joints suit Sika Greenstreak G-Seal 610?
Control, expansion, and construction joints in concrete pavement where a paving cap over expansion board keeps debris and fluid out of the joint.
What board size does Sika Greenstreak G-Seal 610 fit?
3/4 in expansion board; the brochure height is 2 in tall for that board.
What install method does Sika Greenstreak G-Seal 610 use?
Attach to the expansion board with staples or nails through the bottom flange before concrete placement. No separate sealant mobilization or joint tooling.
What hardness does Sika Greenstreak G-Seal 610 hold?
Shore A 81 +/- 3 under ASTM D2240, with 2,350 psi minimum tensile and 375% elongation under ASTM D412.
What profile is Sika Greenstreak G-Seal 610 versus 605?
610 is 2 in tall for 3/4 in board; 605 is 2-1/2 in tall for the same 3/4 in board.
What size is Sika Greenstreak G-Seal 610?
The piece is 10 ft of 3/4 in by 2 in gray paving cap, part 419331.
