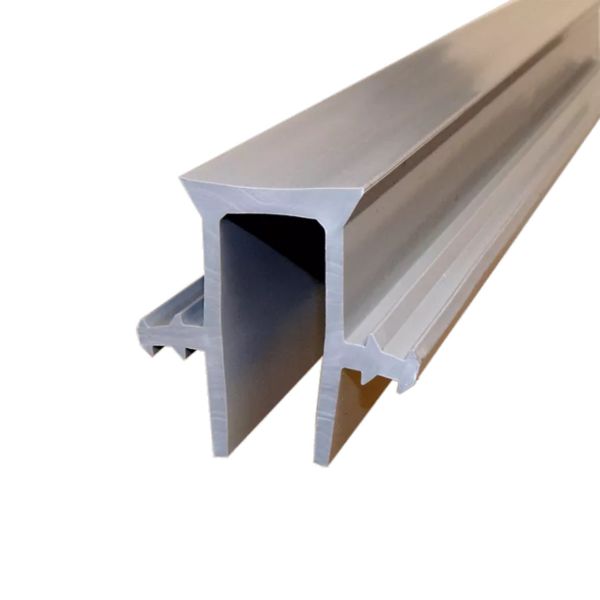

Sika Greenstreak G-Seal 610 3/4in x 2in Gray Paving Cap 50ft
Sika Greenstreak G-Seal 610 is a gray modified PVC paving cap in a 50 ft roll for 3/4 in expansion board. The 2 in tall profile covers the board before the pour and keeps pavement joints clean.
- 2 in tall profile for 3/4 in expansion board
- Installs before the pour with staples or nails
- 50 ft roll of gray paving cap, part 419329
$160.71
Drop Shipped
Sika Greenstreak G-Seal 610
Sika Greenstreak G-Seal 610 is a gray modified PVC paving cap that sits over expansion board in concrete pavement joints. This 3/4 in by 2 in profile ships as a 50 ft roll (part 419329) and is 2 in tall for 3/4 in board. Staple or nail it to the board before the pour so the cap keeps debris out of the joint and skips a later sealant trip. The 10 ft sibling is part 419331.
Key Features
- Modified PVC paving cap, profile 610
- 2 in tall for 3/4 in expansion board
- Gray color; 50 ft roll
- Shore A hardness 81 +/- 3 (ASTM D2240)
- Tensile strength 2,350 psi min (ASTM D412)
- Elongation 375% (ASTM D412)
Applications
- Control joints in concrete pavement
- Expansion joints in concrete pavement
- Construction joints in concrete pavement
- Radius forming for pavement joints
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika Greenstreak |
| Product | G-Seal 610 Paving Cap |
| Part no. | 419329 |
| Unit | 50 ft roll |
| Profile | 3/4 in x 2 in, 2 in tall for 3/4 in board |
| Color | Gray |
| Chemistry | Modified PVC paving cap |
| Shore A | 81 +/- 3 (ASTM D2240) |
| Tensile strength | 2,350 psi min (ASTM D412) |
| Elongation | 375% (ASTM D412) |
| Sibling | 10 ft piece part 419331 |
Product documents: G-Seal Paving Cap Product Data Sheet (PDF)
Frequently Asked Questions
What joints suit Sika Greenstreak G-Seal 610?
Control, expansion, and construction joints in concrete pavement where a 2 in paving cap over 3/4 in expansion board keeps debris and fluid out.
What board size does Sika Greenstreak G-Seal 610 fit?
3/4 in expansion board; the brochure height is 2 in tall for that board.
What size is Sika Greenstreak G-Seal 610?
The roll is 50 ft of 3/4 in by 2 in gray paving cap, part 419329. The 10 ft piece is part 419331.
What 605 difference does Sika Greenstreak G-Seal 610 have?
Both cap 3/4 in board before the pour. 610 is 2 in tall; 605 is 2-1/2 in tall.
What 628 difference does Sika Greenstreak G-Seal 610 have?
610 is the new-pour cap for 3/4 in board. 628 is the 2 in tall retrofit cap for the same board after the pour.
What install method does Sika Greenstreak G-Seal 610 use?
Attach to the expansion board with staples or nails through the bottom flange before concrete placement.
