Sika Greenstreak G-Seal 624 1/2in x 2in Gray Paving Cap 50ft 419333

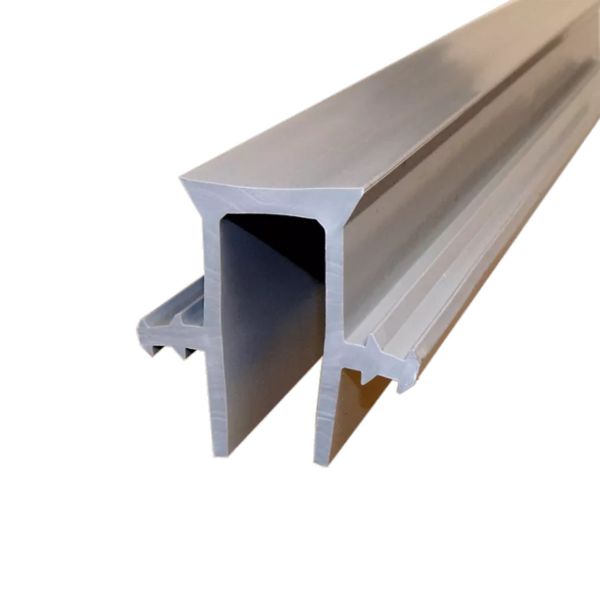

Sika Greenstreak G-Seal 624 is a 1/2 in x 2 in gray paving cap in a 50 ft roll. It is used over 1/2 in expansion board.
- Abrasion-resistant paving cap
- Mechanical bond in the concrete
- Gray to blend with pavement
$157.15
Availability:
Out of stock
G-Seal 624, 1/2 in x 2 in, 50 ft roll
Sika Greenstreak G-Seal 624 is a gray modified PVC paving cap for control, expansion, and construction joints in concrete pavement. It is used over 1/2 in expansion board to form a continuous diaphragm that prevents fluid migration and debris. It is placed on the board before the concrete. Gray to blend with the pavement, it is used on radius work as well as straight runs.
Key Features
- Gray modified PVC paving cap
- Abrasion-resistant paving cap
- Mechanical bond in the concrete
- Gray to blend with pavement
- No tooling of the joint
Applications
- Control joints in concrete pavement.
- Expansion joints in concrete pavement.
- Construction joints in concrete pavement.
Technical Specifications
| Property | Value |
|---|---|
| Pack | 1/2 in x 2 in, 50 ft roll |
| Size | 2 in tall for 1/2 in board |
| Shore A | 81 ± 3, ASTM D2240 |
| Tensile | 2350 psi min, ASTM D412 |
| Elongation | 375%, ASTM D412 |
| Color | Grey |
| Oil swell | ±3% by volume max / ±15% by weight max, ASTM D471 |
| Abrasion | 0.35 g max, ASTM D3884, 10,500 cycles |
Documents
Frequently Asked Questions
What size is Sika Greenstreak G-Seal 624?
1/2 in x 2 in, 2 in tall for 1/2 in board.
What is the 1/2-inch board of Sika Greenstreak G-Seal 624?
1/2 in expansion board.
What 50-foot roll is Sika Greenstreak G-Seal 624?
50 ft roll.
What is the ozone of Sika Greenstreak G-Seal 624?
No cracking, ASTM D518, 20% strain, 300 pphm, 70 hrs at 104 F.
What radius work is Sika Greenstreak G-Seal 624?
It is used on radius applications as well as straight runs.
What is the 1-1/8-inch top of Sika Greenstreak G-Seal 624?
Top width 1 1/8 in.
