Sika Greenstreak G-Seal 628 3/4in x 2in Retro-Fit Cap 50ft 419340

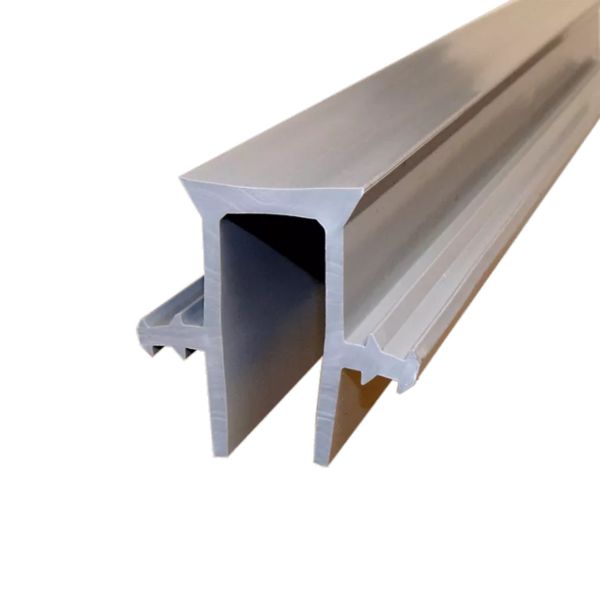

Sika Greenstreak G-Seal 628 is a gray modified PVC retrofit paving cap in a 50 ft roll for 3/4 in board. The 2 in tall profile covers existing pavement joints and keeps debris out of the slot.
- Retrofit paving cap for existing pavement joints
- 2 in tall profile for 3/4 in board
- Keeps debris and fluid out of the joint slot
$239.00
Drop Shipped
Sika Greenstreak G-Seal 628
Sika Greenstreak G-Seal 628 is a gray modified PVC retrofit paving cap for existing concrete pavement joints. This 3/4 in by 2 in profile ships as a 50 ft roll (part 419340) and is 2 in tall for 3/4 in board. It covers the joint to keep debris and fluid out where a new-pour 610 cap cannot be placed on the board before concrete. No special tools are needed for the retrofit cap.
Key Features
- Modified PVC retrofit paving cap, profile 628
- 2 in tall for 3/4 in board
- Gray color; 50 ft roll
- Shore A hardness 81 +/- 3 (ASTM D2240)
- Tensile strength 2,350 psi min (ASTM D412)
- Elongation 375% (ASTM D412)
Applications
- Retrofit of existing concrete pavement joints
- Control joints where a new-pour cap was not placed
- Expansion joints in concrete pavement
- Construction joints needing a retrofit paving cap
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika Greenstreak |
| Product | G-Seal 628 Retro-Fit Cap |
| Part no. | 419340 |
| Unit | 50 ft roll |
| Profile | 3/4 in x 2 in, 2 in tall for 3/4 in board |
| Color | Gray |
| Chemistry | Modified PVC paving cap |
| Shore A | 81 +/- 3 (ASTM D2240) |
| Tensile strength | 2,350 psi min (ASTM D412) |
| Elongation | 375% (ASTM D412) |
Product documents: G-Seal Paving Cap Product Data Sheet (PDF)
Frequently Asked Questions
What joints suit Sika Greenstreak G-Seal 628?
Existing concrete pavement control, expansion, and construction joints where a retrofit paving cap covers the slot after the pour.
What board size does Sika Greenstreak G-Seal 628 fit?
3/4 in board; the brochure height is 2 in tall for that board.
What size is Sika Greenstreak G-Seal 628?
The roll is 50 ft of 3/4 in by 2 in gray retrofit paving cap, part 419340.
What makes Sika Greenstreak G-Seal 628 a retrofit profile?
It is the retrofit G-Seal for 3/4 in board joints that were not capped before the pour, versus 610 new-pour on the same board.
What 632 difference does Sika Greenstreak G-Seal 628 have?
Both are retrofit caps. 628 is 2 in tall for 3/4 in board; 632 is 2 in tall for 1/2 in board.
What hardness does Sika Greenstreak G-Seal 628 hold?
Shore A 81 +/- 3 under ASTM D2240, with 2,350 psi minimum tensile and 375% elongation under ASTM D412.
