Sika Greenstreak Flexible PVC Waterstop Ribbed Centerbulb 732 6in x 3/8in RCB 50ft Roll 419516
Sika Greenstreak PVC Waterstop 732 is a ribbed centerbulb profile in a 6 in by 3/8 in 50 ft roll. The 5/16 in by 7/8 in bulb takes joint movement while the heavier web locks a watertight diaphragm in place.
- Ribbed centerbulb profile for moving joints
- 6 in by 3/8 in web with 5/16 in ID by 7/8 in OD bulb
- 50 ft roll, approximately 1.60 lb/ft, 125 ft head
$379.49
Availability:
In stock
( 5 Available )
Sika Greenstreak PVC Waterstop 732

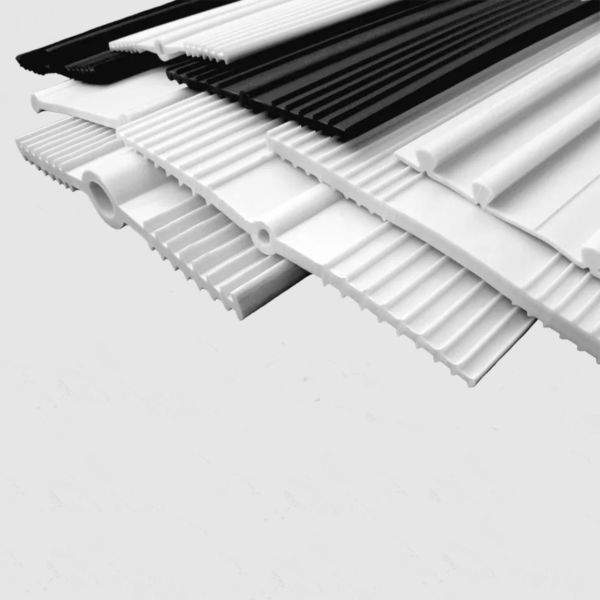

Sika Greenstreak Flexible PVC Waterstop profile 732 is a ribbed centerbulb PVC strip for embedded joint waterproofing in cast-in-place concrete. This 6 in by 3/8 in RCB profile ships as a 50 ft roll (part 419516) and forms a watertight diaphragm across construction and expansion joints. At approximately 1.60 lb/ft it is the heavier 6 in by 3/8 in sibling to 717, with a 5/16 in by 7/8 in centerbulb.
Key Features
- Flexible PVC waterstop, profile 732 ribbed centerbulb (RCB)
- Profile width 6 in with 3/8 in web thickness
- Centerbulb 5/16 in ID by 7/8 in OD
- Weight approximately 1.60 lb/ft
- Head pressure 125 ft (373 kPa)
- NSF/ANSI 61 approved for potable water contact
Applications
- Construction and expansion joints under higher head
- Water and wastewater treatment plants
- Tunnels, culverts, lock and dam systems
- Tanks, reservoirs, and flood walls
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika Greenstreak |
| Product | Flexible PVC Waterstop 732 RCB |
| Part no. | 419516 |
| Unit | 50 ft roll |
| Profile | 6 in x 3/8 in ribbed centerbulb |
| Centerbulb | 5/16 in ID x 7/8 in OD |
| Weight | Approximately 1.60 lb/ft |
| Head pressure | 125 ft (373 kPa) |
| Tensile strength | 2,000 psi min (ASTM D638) |
| Elongation | 350% (ASTM D638) |
| Shore A | 79 +/- 3 (ASTM D2240) |
| Potable water | NSF/ANSI 61 |
Product documents: Greenstreak PVC Waterstop Product Data Sheet (PDF)
Frequently Asked Questions
What joints suit Sika Greenstreak PVC Waterstop 732?
Construction and expansion joints that need a 6 in by 3/8 in ribbed centerbulb with a 5/16 in by 7/8 in bulb.
What size is Sika Greenstreak PVC Waterstop 732?
The roll is 50 ft of 6 in by 3/8 in RCB profile, part 419516.
What centerbulb is Sika Greenstreak PVC Waterstop 732?
5/16 in ID by 7/8 in OD. 717 is the 6 in by 3/8 in sibling with a 1/2 in by 1 in bulb.
What head pressure does Sika Greenstreak PVC Waterstop 732 hold?
125 ft (373 kPa). Weight is approximately 1.60 lb/ft.
What tensile strength does Sika Greenstreak PVC Waterstop 732 hold?
Minimum tensile strength 2,000 psi and 350% elongation under ASTM D638, with Shore A hardness 79 +/- 3.
What Corps specification does Sika Greenstreak PVC Waterstop 732 meet?
Physical property requirements of Army Corps of Engineers CRD-C 572-74.
