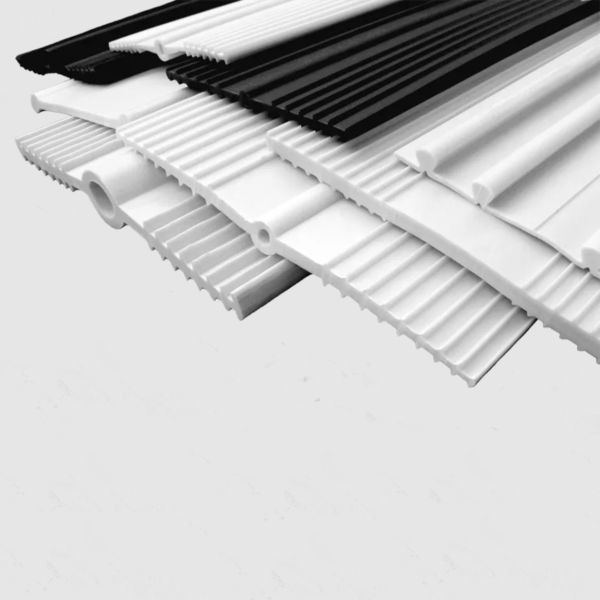

Sika Greenstreak Flexible PVC Waterstop Ribbed Centerbulb 705 6in x 3/8inT RCB 50ft Roll 419446

Sika Greenstreak 705 is a 6 in x 3/8 in PVC ribbed-centerbulb waterstop in a 50 ft roll. It is used on moving concrete joints.

Higher-head ribbed centerbulb
Watertight diaphragm through the joint
NSF/ANSI 61 for potable water contact

$288.10

Availability: In stock ( 6 Available )

Details

705 Ribbed Centerbulb, 6 in x 3/8 in, 50 ft roll

Sika Greenstreak 705 is a flexible PVC waterstop, ribbed centerbulb, for moving concrete joints. It is used at water and wastewater plants, lock and dam systems, reservoirs, flood walls, retaining walls, foundations, tunnels, culverts, bridge abutments, tanks, and slabs on ground. It is placed in the joint before the concrete. The centerbulb accommodates lateral, transverse, and shear movement.

Key Features

Flexible PVC ribbed-centerbulb waterstop
Higher-head profile for moving joints
Watertight diaphragm through the joint
NSF/ANSI 61 for potable water contact
Meets CRD-C 572-74

Applications

Water and wastewater plants.
Lock and dam systems, reservoirs, and flood walls.
Retaining walls, foundations, tunnels, and culverts.
Bridge abutments, tanks, and slabs on ground.

Technical Specifications

Property	Value
Pack	6 in x 3/8 in, 50 ft roll
Weight	1.19 lb/ft (1.77 kg/m)
Size	6 in x 3/8 in x 3/16 in x 1/8 in; centerbulb 1/4 in ID x 11/16 in OD
Head	125 ft (373 kPa), ultimate; apply a safety factor
Shore A	79 ± 3, ASTM D2240
Tensile	2000 psi min, ASTM D638
Elongation	350%, ASTM D638
Tear	300 lb/in min, ASTM D624
Low-temperature brittleness	passes at -35 F, ASTM D746
NSF/ANSI	Standard 61
