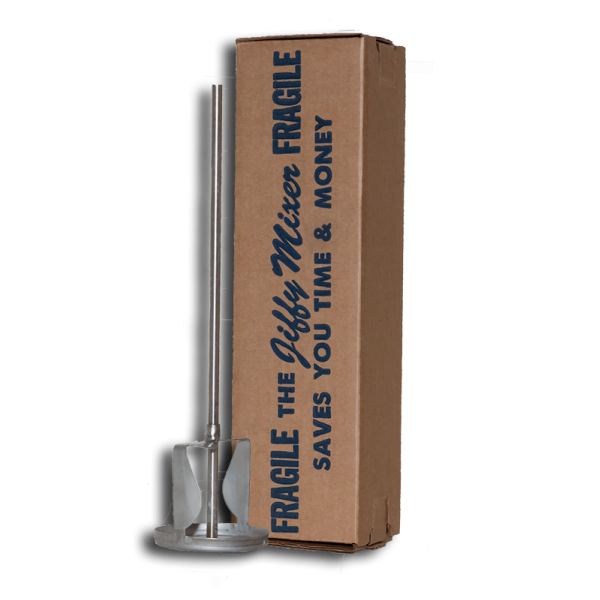

Jiffy Mixer HS-1 Mixer

Jiffy Mixer HS-1 is a 304 stainless dual-blade paddle, model HS-1, for epoxy, grout, and coatings in 1 to 2 gallon pails. The short 1/4 in shaft chucks into a compact drill and holds a thorough mix at 450 to 750 rpm.

1/4 in shaft is 10 1/4 in long for compact drills
Protective ring and floor-scraping blades keep air out of the mix
Best mix is 450 to 750 rpm, maximum 1200 rpm

$18.71

Availability: In stock ( 13 Available )

Details

Jiffy Mixer HS-1

Jiffy Mixer HS-1 is a 304 stainless dual-blade paddle, model HS-1, for epoxy, grout, and coatings in 1 to 2 gallon pails. The 1/4 in shaft is 10 1/4 in long and chucks into a compact drill. Best mix is 450 to 750 rpm. Maximum speed is 1200 rpm. A protective ring and floor-scraping blades keep air out of the mix when the head stays immersed. Model code is HS-1.

Key Features

304 stainless dual-blade paddle is used in 1 to 2 gallon pails
1/4 in shaft is 10 1/4 in long for compact drills
Best mix is 450 to 750 rpm
Maximum speed is 1200 rpm
Protective ring and floor-scraping blades keep air out when the head stays immersed

Applications

Epoxy, touch-up coatings, and grout in 1 to 2 gallon pails
Compact drills that need a short 1/4 in shaft paddle
Small batches that need a stainless mixer without sucking air

Technical Specifications

Property	Value
Model	HS-1
Material	304 stainless steel
Container	1 to 2 gal
Shaft diameter	1/4 in
Shaft length	10 1/4 in
Best mix	450 to 750 rpm
Max speed	1200 rpm
Head diameter	2 5/8 in
Head depth	2 3/8 in
Weight	4 lb

Product documents: Jiffy Mixers Spec Sheet (PDF)

Frequently Asked Questions

What containers does Jiffy Mixer HS-1 mix?
1 to 2 gallon pails. The short 304 stainless dual-blade paddle is for epoxy, grout, and coatings in that range.

What shaft does Jiffy Mixer HS-1 have?
A 1/4 in shaft, 10 1/4 in long, for a compact electric or air drill.

What speed does Jiffy Mixer HS-1 use?
Best mix is 450 to 750 rpm. Maximum speed is 1200 rpm on HS-1.

What keeps air out of Jiffy Mixer HS-1?
Fully immerse the head before the drill starts, keep it immersed while it turns, and shut off before the head breaks the surface.

What head size does Jiffy Mixer HS-1 have?
Head diameter is 2 5/8 in and head depth is 2 3/8 in on the HS-1 paddle.

What model pairs with Jiffy Mixer HS-1?
HS-2 uses the same 1 to 2 gal head with a 14 3/4 in shaft. They are different models, not pack sizes of one mixer.
