Collomix MK160HF Mixing Paddle Two Pack
Collomix MK 160 HF is a HEXAFIX three-helix paddle for concrete, screed, mortar, and quartz-filled epoxy mortar on high-power mixers.
- Bottom-to-top action into sand and gravel
- Three helices for heavy, compact batches
- Protective ring at the bucket floor
$110.63
Availability:
Out of stock

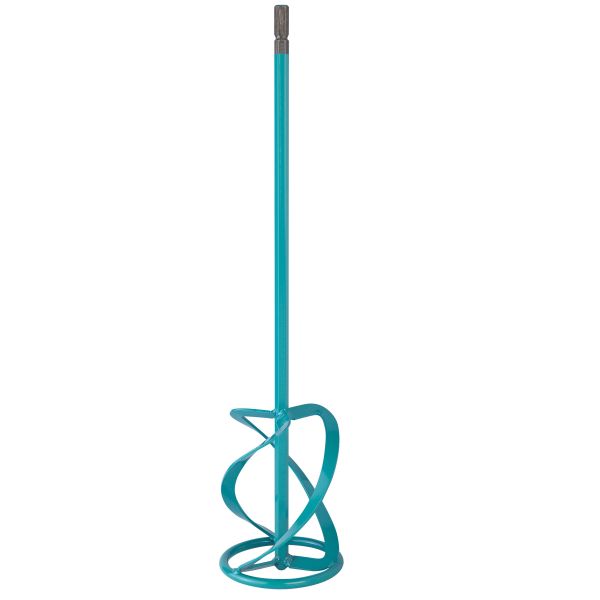

Collomix MK 160 HF Mixing Paddle Two Pack
Collomix MK 160 HF is a three-helix mixing paddle for heavy, highly viscous materials: concrete, screed, mortar, plaster, and quartz-filled epoxy mortar. The cage screws itself to the bucket floor and lifts sand and gravel so the batch turns over without the operator forcing the mixer down. HEXAFIX mounts on high-power Collomix paddle mixers. Sold here as a two pack of MK 160 HF paddles.
Key Features
- Three helices for concrete, screed, and heavy mortar.
- Bottom-to-top action that pulls into sand and gravel.
- Stronger than a two-fin WK paddle on compact mixes.
- Protective ring at the bucket floor.
- HEXAFIX coupling on high-power Collomix mixers.
- Sold as a two pack of MK 160 HF paddles.
- Made in Germany.
Applications
- Concrete and screed with sand or fine gravel.
- Mortar of all kinds and cement plaster.
- Quartz-filled epoxy mortar.
- Heavy batches on XQ6-class HEXAFIX mixers.
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Collomix |
| Product | MK 160 HF |
| Part Number | 40116-225 |
| Paddle type | MK three-helix, heavy materials |
| Connection | HEXAFIX (HF) |
| Mixing quantity | 8.0-15.9 gal |
| Diameter | 6 1/3 in |
| Length | 23 1/4 in |
| Mixing action | Bottom to top |
| Compatible mixers | XQ6 |
| Packaging | Two pack |
| Origin | Made in Germany |
Product documents: Collomix Mixing Paddles datasheet EN-US (PDF)
Frequently Asked Questions
When is Collomix MK 160 HF the right paddle for concrete and gravel-filled mortar?
Collomix MK 160 HF is the three-helix specialist Collomix publishes for heavy, highly viscous batches: concrete, screed, mortar, plaster, quartz-filled epoxy mortar, and smoothing cement.
How do the three helices on Collomix MK 160 HF get into compact concrete?
Three mixing blades on Collomix MK 160 HF rotate into sand and gravel-filled mixtures. Collomix rates that geometry for the heaviest compact loads, so the paddle works into the batch instead of riding on top.
How does Collomix MK 160 HF turn a batch from the bucket floor up?
Collomix MK 160 HF mixes from bottom to top. The paddle pulls itself down and lifts sand and gravel so the batch turns over without the operator forcing the mixer into the tub.
How large a batch does Collomix rate for Collomix MK 160 HF?
The US mixing-paddle datasheet rates Collomix MK 160 HF at 8.0-15.9 gal, with a 6 1/3 in cage and 23 1/4 in overall length, on an XQ6-class mixer.
Why does Collomix MK 160 HF need a high-power mixer?
Collomix publishes Collomix MK 160 HF as the heavy-materials specialist: three helices move gravel-filled concrete and quartz-filled epoxy mortar, and that load needs more drive power than a lighter paddle.
What other materials does Collomix list for Collomix MK 160 HF besides concrete?
Besides concrete, Collomix lists Collomix MK 160 HF for mortars of all kinds, plaster, screed, quartz-filled epoxy mortar, and smoothing cement.
