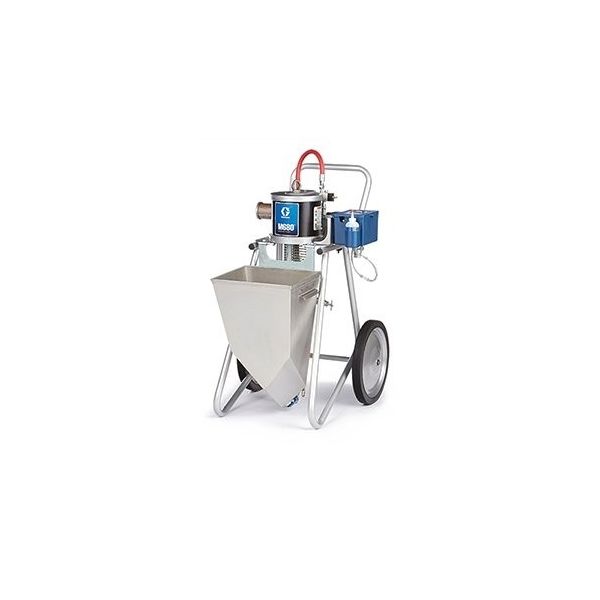

Graco ToughTek M680a CS System 25M572
Graco ToughTek M680a CS is an air-powered piston pump, part 25M572, for water-based repair mortar and cementitious fireproofing. An air motor drives the piston at up to 10.8 gpm and 600 psi.
- An air motor drives water-based repair mortar and fireproofing
- Output is up to 10.8 gpm at 600 psi
- A 1.5 in camlock is used on mortar hose
$15,550.00
Graco ToughTek M680a CS
Graco ToughTek M680a CS is an air-powered piston pump, part 25M572, for water-based repair mortar and cementitious fireproofing. An air motor drives the piston, so there is no 120V circuit at the pump. Maximum flow is 10.8 gpm at 600 psi. The hopper is 10 gallons. Outlet is a 1.5 in camlock. Weight is 250 lb. Maximum particle size is 3/16 in. Maximum hose length is 100 ft. Everyday pumping is often 200 to 500 psi.
Key Features
- Air-powered piston pump is used on water-based repair mortar and fireproofing
- An air motor drives the piston with no 120V circuit at the pump
- Output is up to 10.8 gpm at 600 psi
- Hopper is 10 gallons
- 1.5 in camlock is used on mortar and fireproofing hose
Applications
- Water-based repair mortar that flushes with water
- Cementitious fireproofing in air-powered spray areas
- Mortar jobs that need a 1.5 in camlock outlet
Technical Specifications
| Property | Value |
|---|---|
| Type | Pneumatic piston pump, CS lower |
| Part number | 25M572 |
| Power | Shop air, air motor |
| Max flow | 10.8 gpm |
| Max pressure | 600 psi |
| Max particle | 3/16 in |
| Max hose | 100 ft |
| Hopper | 10 gal |
| Outlet | 1.5 in camlock |
| Weight | 250 lb |
Product documents: Graco ToughTek M680a Flyer (PDF)
Frequently Asked Questions
What materials does Graco ToughTek M680a CS pump?
Water-based repair mortar and cementitious fireproofing that flush with water. The CS lower is 600 psi with a 1.5 in camlock for those coats.
What power does Graco ToughTek M680a CS use?
An air motor drives the piston from shop air, so there is no 120V circuit at the pump. The same air source can atomize the spray in electric-sensitive areas.
What output does Graco ToughTek M680a CS have?
Maximum flow is 10.8 gpm at 600 psi. Mortar output is up to 40 bags an hour, with a 3/16 in maximum particle size.
What hopper size does Graco ToughTek M680a CS have?
The hopper is 10 gallons. A 25 gallon hopper kit is used when fireproofing coats need fewer refills.
What outlet size does Graco ToughTek M680a CS have?
The outlet is a 1.5 in camlock. Maximum hose length is 100 ft.
What pressure does Graco ToughTek M680a CS have?
Maximum working pressure is 600 psi. Everyday pumping is often 200 to 500 psi to reduce wear on the pump lower.
