Graco ToughTek P30 HT Bare Rotor Stator Pump System 230V 30A 1Ph 25M032

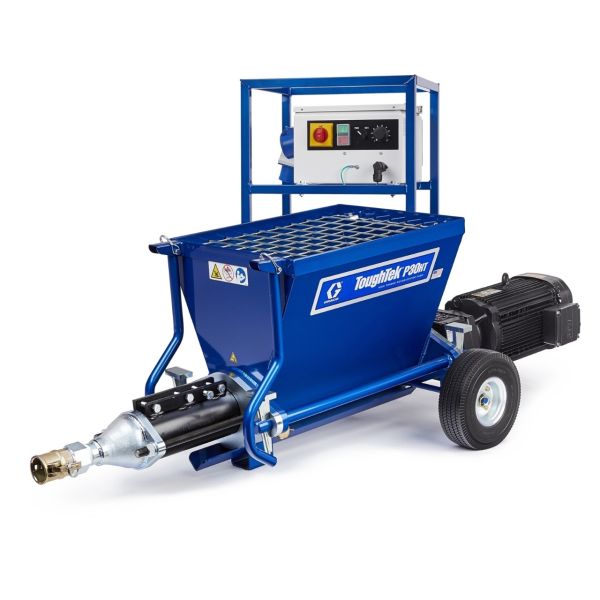

Graco ToughTek P30HT is an electric rotor-stator pump, part 25M032, for stucco, repair mortar, self-leveling underlayment, and cementitious fireproofing. The pump runs on 230V, 30A single-phase at up to 9.8 gpm.
- Rotor-stator pumps stucco, repair mortar, and self-leveling
- Underlayment output is up to 200 bags an hour on 50 lb bags
- The pump runs on 230V 30A single-phase
$26,030.00
Graco ToughTek P30HT
Graco ToughTek P30HT is an electric rotor-stator pump, part 25M032, for stucco, repair mortar, self-leveling underlayment, and cementitious fireproofing. The pump runs on 230V, 30A single-phase. Maximum flow is 9.8 gpm at 300 psi. Underlayment output is up to 200 bags an hour on 50 lb bags. The hopper is 16 gallons. Weight is 300 lb. Horizontal reach is 100 ft and more. Vertical reach is 60 ft.
Key Features
- Electric rotor-stator pump is used on stucco, repair mortar, and self-leveling
- Pump runs on 230V, 30A single-phase
- Maximum flow is 9.8 gpm at 300 psi
- Underlayment output is up to 200 bags an hour on 50 lb bags
- The 16 gallon hopper feeds a 1.5 in NPT outlet
Applications
- Self-leveling underlayment is pumped from 50 lb bags
- Stucco and repair mortar on mid-rise and high-rise work
- Cementitious fireproofing that needs a rotor-stator wet end
Technical Specifications
| Property | Value |
|---|---|
| Type | Electric rotor-stator pump |
| Part number | 25M032 |
| Power | 230V, 30A, 1 phase |
| Motor | 7.5 hp |
| Max flow | 9.8 gpm |
| Max pressure | 300 psi |
| Underlayment output | Up to 200 bags/hr on 50 lb bags |
| Hopper | 16 gal |
| Outlet | 1.5 in NPT |
| Weight | 300 lb |
Product documents: Graco ToughTek P-Series Pump Manual (PDF)
Frequently Asked Questions
What materials does Graco ToughTek P30HT pump?
Repair mortar, stucco, EIFS, self-leveling underlayment, and cementitious fireproofing. The rotor-stator wet end is used on thick, high-viscosity coats and on taller buildings.
What power does Graco ToughTek P30HT need?
230V, 30A single-phase. Motor rating is 7.5 hp on this 25M032 unit.
What output does Graco ToughTek P30HT have?
Maximum flow is 9.8 gpm at 300 psi. Underlayment output is up to 200 bags an hour based on 50 lb bags.
What hopper size does Graco ToughTek P30HT have?
The hopper is 16 gallons. Outlet is 1.5 in NPT.
What pumping distance does Graco ToughTek P30HT have?
Horizontal reach is 100 ft and more. Vertical reach is 60 ft.
What particle size does Graco ToughTek P30HT pump?
Maximum particle size is 1/4 in on the rotor-stator wet end. That clearance is used on thick mortar and self-leveling with aggregate in that range.
