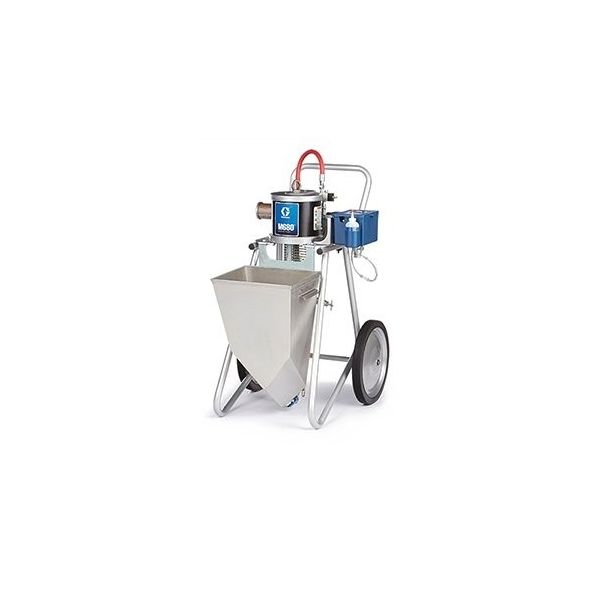

Graco ToughTek M680a Bare Piston Pump System Stainless Steel Hopper 24T836
Graco ToughTek M680a is an air-powered stainless piston pump, part 24T836, for epoxy mortars, solvent non-skid coatings, and filled polymers. An air motor drives the piston at up to 10.8 gpm and 1000 psi.
- An air motor drives epoxy mortar and solvent non-skid
- Output is up to 10.8 gpm at 1000 psi
- Stainless hopper is 10 gallons
$16,720.00
Graco ToughTek M680a
Graco ToughTek M680a is an air-powered stainless piston pump, part 24T836, for epoxy mortars, solvent non-skid coatings, and filled polymers. An air motor drives the piston, so there is no 120V circuit at the pump. Maximum flow is 10.8 gpm at 1000 psi. The stainless hopper is 10 gallons. Outlet is a 1 in camlock. Weight is 250 lb. Maximum particle size is 3/16 in. Maximum hose length is 100 ft.
Key Features
- Air-powered stainless piston pump is used on epoxy mortars and solvent non-skid
- An air motor drives the piston with no 120V circuit at the pump
- Output is up to 10.8 gpm at 1000 psi
- Stainless hopper is 10 gallons
- 1 in camlock is used on epoxy and non-skid hose
Applications
- Epoxy mortars that need a stainless lower
- Solvent non-skid coatings are sprayed on bridges and marine decks
- Filled polymers with glass flake, silica, or sand
Technical Specifications
| Property | Value |
|---|---|
| Type | Pneumatic piston pump, stainless |
| Part number | 24T836 |
| Power | Shop air, air motor |
| Max flow | 10.8 gpm |
| Max pressure | 1000 psi |
| Max particle | 3/16 in |
| Max hose | 100 ft |
| Hopper | 10 gal stainless |
| Outlet | 1 in camlock |
| Weight | 250 lb |
Product documents: Graco ToughTek M680a Flyer (PDF)
Frequently Asked Questions
What materials does Graco ToughTek M680a pump?
Epoxy mortars, solvent non-skid coatings, and filled polymers with glass flake, silica, or sand. The stainless lower is used where epoxy cleanup and solvent coats need stainless steel.
What power does Graco ToughTek M680a use?
An air motor drives the piston from shop air, so there is no 120V circuit at the pump. Maximum air inlet is 150 psi, and the same air source can atomize the spray.
What output does Graco ToughTek M680a have?
Maximum flow is 10.8 gpm at 1000 psi. Mortar output is up to 40 bags an hour, with a 3/16 in maximum particle size.
What hopper size does Graco ToughTek M680a have?
The stainless hopper is 10 gallons. A 25 gallon hopper kit is used when fireproofing or other coats need fewer refills.
What outlet size does Graco ToughTek M680a have?
The outlet is a 1 in camlock. Maximum hose length is 100 ft.
What pressure does Graco ToughTek M680a have?
Maximum working pressure is 1000 psi. Everyday pumping is often 200 to 500 psi to reduce wear on the pump lower.
