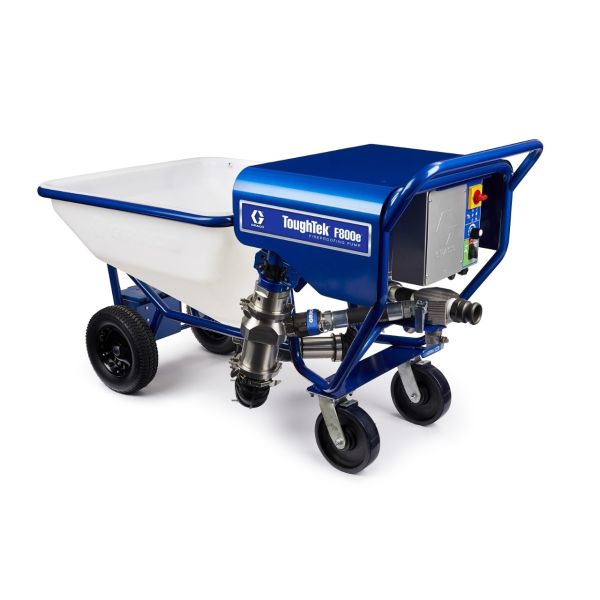

Graco ToughTek F800e Bare Piston Pump System w/ Low Power Kit 25M802
Graco ToughTek F800e with Low Power Kit is a high-output fireproofing piston pump that can run on two 120V, 15A circuits.
- Sprays cementitious fireproofing up to 40 bags an hour
- Low Power Kit: two 120V, 15A circuits, or 230V, 30A
- Bare pump with kit; hose and applicator sold separately
$26,930.00
Graco ToughTek F800e Bare Piston Pump with Low Power Kit
Graco ToughTek F800e with Low Power Kit is the high-output fireproofing piston pump, wired so it can run on two 120V, 15A circuits when a 230V, 30A receptacle is not on the floor. Output stays at up to 40 bags an hour from a 4.5 hp brushless motor and a 41 gal hopper. The 2 in camlock pairs with large fireproofing hose already on the truck. Also offered as the F800e System on 230V, 30A single-phase.
Looking for another size?
Key Features
- Same 40-bag F800e output on two 120V, 15A circuits
- Falls back to 230V, 30A single-phase when that outlet exists
- 4.5 hp brushless direct-drive motor
- 41 gal hopper with bottom drain
- 2 in camlock outlet for large fireproofing hose
- Quick-Access stainless piston, tool-less wet end
Applications
- Medium to large cementitious fireproofing jobs
- Floors with only 120V convenience power
- Service-elevator moves (385 lb class)
- Jobs that cannot wait on a 230V receptacle
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Graco |
| Product | ToughTek F800e with Low Power Kit |
| Part Number | 25M802 |
| Type | Electric piston pump, bare |
| Power | 230V 30A 1-ph, or two 120V 15A |
| Motor | 4.5 hp brushless |
| Output | Up to 40 bags/hr |
| Max pressure | 600 psi (42 bar) |
| Hopper / outlet | 41 gal; 2 in camlock |
| Includes | Low Power Kit; remote start/stop |
| Weight | 385 lb |
| Kit vs sister | Same bare pump as 25M800 plus Low Power Kit |
Product documents: ToughTek F800e Sell Sheet (PDF)
Frequently Asked Questions
What is F800e 25M802?
The F800e bare piston pump with Low Power Kit. Same 40 bag/hr fireproofing pump as 25M800, wired for two 120V, 15A circuits or 230V, 30A.
How is this different from 25M800?
The F800e System 25M800 is the same bare pump without the Low Power Kit, for a 230V, 30A outlet. 25M802 adds the dual 120V kit.
Does it include hose?
No. 25M802 is bare with the Low Power Kit. Packages with 200 ft hose and pole applicator are 25M810 / 25M812.
What materials?
Cementitious, water-based fireproofing per the F800e sell sheet.
How heavy is it?
385 lb dry, so it can roll onto a service elevator instead of a tow-behind.
