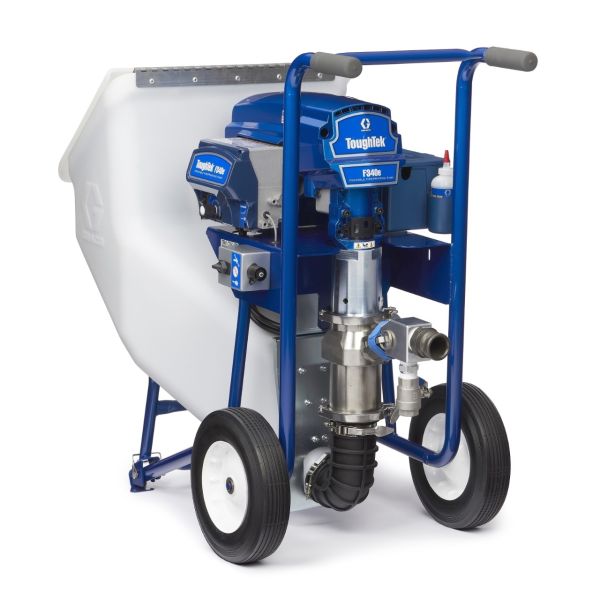

Graco ToughTek F340e System 120V 15A 25B502
Graco ToughTek F340e is an electric piston pump, part 25B502, for cementitious fireproofing on small jobs and patch work. The pump plugs into a dedicated 120V, 15A circuit and sprays up to 20 bags an hour.
- The pump plugs into a 120V 15A outlet
- Output is up to 20 bags an hour on fireproofing patch
- Hose reach is 150 ft from the pump
$15,070.00
Graco ToughTek F340e
Graco ToughTek F340e is an electric piston pump, part 25B502, for cementitious fireproofing on small jobs and patch work. The pump plugs into a dedicated 120V, 15A circuit and sprays up to 20 bags an hour. Hose reach is 150 ft at 600 psi. The 20 gallon hopper holds a mixed bag. This 25B502 unit includes remote on/off. Weight is 205 lb. Max particle is 3/16 in.
Key Features
- Electric piston pump is used on cementitious fireproofing patch work
- Pump plugs into a dedicated 120V, 15A circuit
- Output is up to 20 bags an hour
- Hose reach is 150 ft at 600 psi
- The 20 gallon hopper holds a mixed bag
Applications
- Cementitious fireproofing patch and small SFRM jobs
- Fireproofing on structural steel where a 120V circuit is the power on site
- Patch days that need 150 ft of hose reach from the pump
Technical Specifications
| Property | Value |
|---|---|
| Type | Electric piston pump |
| Part number | 25B502 |
| Power | 120V, 15A, 1 phase |
| Output | Up to 20 bags an hour |
| Max pressure | 600 psi |
| Max particle | 3/16 in |
| Max hose | 150 ft |
| Hopper | 20 gal |
| Outlet | 1.5 in camlock |
| Weight | 205 lb |
Product documents: Graco ToughTek F340e Flyer (PDF)
Frequently Asked Questions
What jobs is Graco ToughTek F340e used on?
Cementitious fireproofing on small jobs and patch work, including SFRM on structural steel.
What power does Graco ToughTek F340e need?
A dedicated 120V, 15A circuit.
What output does Graco ToughTek F340e have?
Up to 20 bags an hour.
What hose reach does Graco ToughTek F340e have?
150 ft at 600 psi.
What hopper size does Graco ToughTek F340e have?
20 gallons.
What remote does Graco ToughTek F340e include?
This 25B502 unit includes remote on/off. Hose and applicator are separate.
