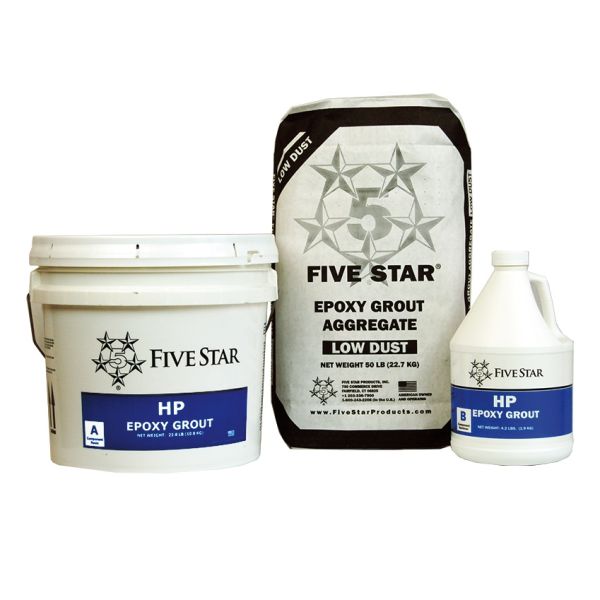

Five Star HP Epoxy Grout 2.0 cu ft
Five Star HP Epoxy Grout is a high-performance expansive, non-shrink, epoxy system for supporting equipment requiring precision alignment. Exhibits positive expansion.
- High early strength
- Expansive, Non-Shrink
- Turnaround in 16 hours or less
$578.08
Five Star HP Epoxy Grout Standard Flow, Precision Machinery Grouting
Five Star HP Epoxy Grout is a high-performance, expansive, non-shrink epoxy system for equipment that needs precision alignment under heavy dynamic loads. The three-component, 100% solids grout develops high early strength and excellent creep resistance. This Standard Flow unit is for 4 to 6 inch clearances. Also available as the 1.75 cubic foot High Flow unit.
Looking for another size?
Key Features
- High early strength for 16-hour turnaround
- Precision support under dynamic loads
- 95% effective bearing area with proper placement
- Positive expansion, non-shrink performance
- Superior creep resistance at elevated temperature
- Excellent adhesion to steel
- Start-up in 16 hours or less
Applications
- High-performance machinery grouting
- Crane rail grouting
- Chemical tanks, vessels, and rotating equipment
- Wind-turbine baseplates
- Anchors and dowels
Technical Specifications
| Property | Value |
|---|---|
| Chemistry | Three-component, 100% solids epoxy grout |
| Flow version | Standard Flow, 5-bag aggregate |
| Yield | About 2.0 cu ft per unit |
| Compressive strength, 16 hours | 11,000 psi |
| Compressive strength, 1 day | 15,000 psi |
| Compressive strength, 7 days | 16,500 psi |
| Effective bearing area | 95% |
| Working time at 70°F | 60 minutes |
| Minimum plate clearance | 4 in |
| Placement depth | 4 in to 6 in |
| Maximum in-service temperature | 180°F |
| Shelf life | 2 years, unopened, dry storage |
Product documents: HP Epoxy Grout Technical Data Sheet (PDF)
Frequently Asked Questions
When should a contractor pick Five Star HP Epoxy Grout Standard Flow instead of High Flow?
Pick Five Star HP Epoxy Grout Standard Flow when minimum plate clearance is 4 inches. Use Five Star HP Epoxy Grout High Flow when clearance is as tight as 1 inch.
How strong is Five Star HP Epoxy Grout Standard Flow at 16 hours?
Five Star HP Epoxy Grout Standard Flow typically reaches about 11,000 psi at 16 hours at 70 F, so equipment can start up in 16 hours or less.
Is Five Star HP Epoxy Grout Standard Flow used under chemical tanks?
Yes. Five Star HP Epoxy Grout Standard Flow is used under chemical tanks, vessels, and rotating equipment in aggressive chemical environments.
Can Five Star HP Epoxy Grout Standard Flow dampen vibration under rotating equipment?
Yes. Five Star HP Epoxy Grout Standard Flow is used as a vibration-dampening filler for rotating equipment as well as for anchors and dowels.
Is Five Star HP Epoxy Grout Standard Flow used under wind-turbine baseplates?
Yes. Five Star HP Epoxy Grout Standard Flow is used under wind-turbine baseplates and for precision alignment under dynamic load.
Does Five Star HP Epoxy Grout Standard Flow bond well to steel?
Yes. Five Star HP Epoxy Grout Standard Flow has excellent adhesion to steel and is chemically resistant.
