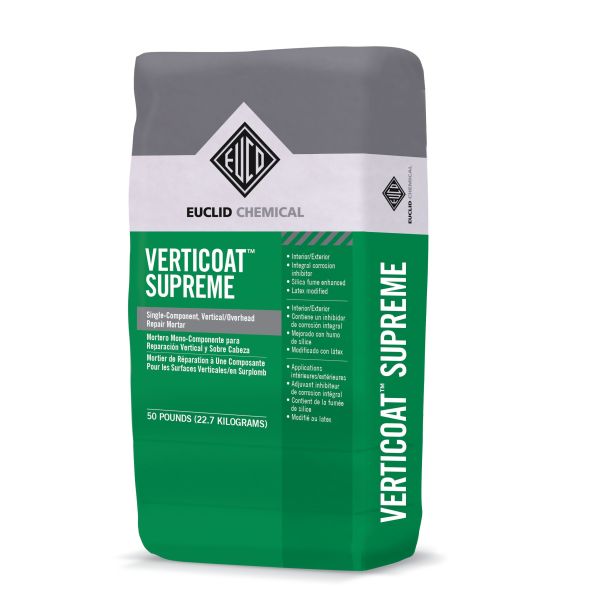

Euclid Verticoat Supreme 50lb Bag
Euclid Verticoat Supreme is a one-component, microsilica and latex modified, non-sag repair mortar formulated to provide protection against corrosion. This cement based product is designed for trowel applied vertical and overhead repairs requiring high performance.
- Excellent freeze-thaw resistance for difficult climates
- Low permeability helps protect rebar from corrosion
- High bond strength provides excellent adhesion
$71.23
SKU
18762
Euclid Verticoat Supreme 50 lb Bag 160V-50
VERTICOAT SUPREME is a single component, microsilica and latex modified, non-sag concrete repair mortar designed for trowel applied vertical and overhead repairs requiring structural strength and high performance. It contains an integral corrosion inhibitor and is used for durable repairs on concrete substrates in above and below grade conditions.
Key Features
- Single component for easy mixing and handling.
- Non-sag mortar for vertical and overhead placement.
- Microsilica and latex modified.
- Contains an integral corrosion inhibitor.
- Low permeability helps protect reinforcing steel from corrosion.
- Excellent freeze-thaw resistance for difficult climates.
- High bond strength for strong adhesion to prepared concrete.
Applications
- Vertical and overhead concrete repairs.
- Parking structures and bridges.
- Marine structures, tunnels, and dams.
- Parapet wall repairs.
- Above and below grade repairs.
Technical Specifications:
| Property | Value |
|---|---|
| Product Type | Single component, vertical and overhead repair mortar with corrosion inhibitor |
| Packaging | 50 lb (22 kg) moisture resistant bags |
| Yield | 0.48 ft3 (0.014 m3) per bag when mixed with 2.75 qts (2.6 L) of water |
| Coverage | Approximately 11.5 ft2 (1.1 m2) per unit at 1/2 in (13 mm) average depth |
| Shelf Life | 2 years in original, unopened package |
| Working Time | Approximately 30 minutes |
| Set Times at 70 F (21 C) ASTM C266 | Initial set: approximately 1 hour; Final set: approximately 3 hours |
| Unit Weight | Approximately 115 lb/ft3 (1836 kg/m3) |
| Compressive Strength ASTM C109 modified, 2 in (50 mm) cubes | 1 day: 2,000 psi (13.8 MPa); 7 days: 3,500 psi (24.1 MPa); 28 days: 5,500 psi (37.9 MPa) |
| Flexural Strength ASTM C348 | 7 days: 900 psi (6.2 MPa); 28 days: 1,000 psi (6.9 MPa) |
| Freeze/Thaw Resistance ASTM C666 Procedure A | 300 cycles relative durability modulus: 90% |
| Linear Shrinkage ASTM C157 (50% RH at 73 F / 23 C) | 3 days: -0.03%; 7 days: -0.06%; 14 days: -0.08%; 28 days: -0.10%; 56 days: -0.11% |
| Placement Lifts | Place in 1/4 in to 2 in (6 to 50 mm) lifts |
| Mix Water Range | 2.5 to 3.0 qt (2.4 to 2.8 L) per bag |
| Minimum Surface and Ambient Temperature | 45 F (7 C) and rising at time of application |
Frequently Asked Questions
What types of repairs is Verticoat Supreme designed for?
It is designed for trowel applied vertical and overhead repairs requiring structural strength and high performance.
What is the recommended placement thickness?
Place the material in 1/4 in to 2 in (6 to 50 mm) lifts. Allow the repair to stiffen before applying the next lift.
How much water is used per 50 lb bag?
The mixing water range is 2.5 to 3.0 qt (2.4 to 2.8 L) per bag. Yield is listed as 0.48 ft3 per bag when mixed with 2.75 qts of water.
What is the working time and set time?
Working time is approximately 30 minutes. Set times at 70 F (21 C) are approximately 1 hour initial set and approximately 3 hours final set.
What temperature limitations apply during installation?
Minimum surface and ambient temperature is 45 F (7 C) and rising at time of application. Do not allow repairs to freeze until the material reaches a minimum of 1,000 psi compressive strength.
