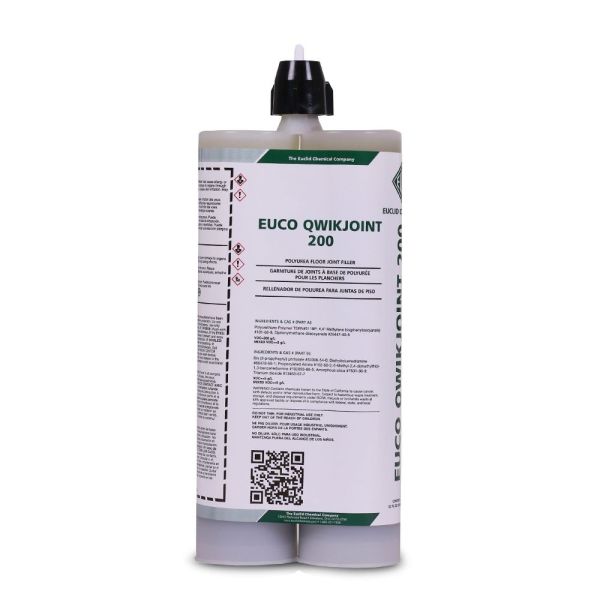

Euclid Euco QWIKJoint 200 Standard Gray 22oz Cartridge
Euclid Qwikjoint 200 is a rapid-setting polyurea control joint filler providing durable and flexible sealing and protection for concrete joints. Large shave time window allows for greater flexibility in scheduling joint filling operations.
- Fast setting formula reduces downtime
- Will cure in temperatures as low as -20° F
- Less moisture-sensitive than standard polyureas
$60.41
Availability:
In stock
( 32 Available )
SKU
19429
Euclid EUCO QWIKJOINT 200 Standard Gray 22 oz Cartridge
EUCO QWIKJOINT 200 is a fast-setting, semi-rigid polyurea floor joint filler used for filling control and construction joints in industrial concrete floors. It supports and protects joint edges from heavy loads and wheel traffic to help reduce spalling. EUCO QWIKJOINT 200 can be shaved flush with the floor immediately after placement or up to 24 hours later, providing flexibility for joint filling schedules.
Key Features
- Fast-setting semi-rigid polyurea joint filler for industrial and commercial floors.
- Extended shave window allows trimming from 30 minutes up to 24 hours after placement.
- No bubbles and no foaming when used in damp joints.
- Supports joint edges under heavy wheel traffic to help reduce joint spalling.
- Less moisture-sensitive than standard polyureas.
- Cures in temperatures as low as -20°F (-29°C).
- Mix ratio is 1:1 for all packaging sizes.
- Available in Standard Gray only; may discolor with ultraviolet exposure.
Applications
- Concrete construction and control joints.
- Industrial and commercial concrete floors.
- Freezer floors.
- Crack repair for older floors (cracks must be routed and cleaned before filling).
Technical Specifications:
| Property | Value |
|---|---|
| Product Type | Fast-setting, semi-rigid polyurea floor joint filler |
| Color | Standard Gray only |
| Gel Time | 25 seconds |
| Tack-Free Time | 1 to 3 minutes |
| Shave Window | 30 minutes to 24 hours |
| Traffic Ready Time | Light Traffic: 15 minutes; Heavy Traffic: 30 minutes |
| Shore D Hardness (ASTM D2240) | 34 to 36 |
| Shore A Hardness (ASTM D2240) | 84 to 88 |
| Tensile Strength at 7 days (ASTM D412) | 660 psi (4.6 MPa) |
| Elongation at 7 days (ASTM D412) | 220% to 260% |
| Application Temperature Range | -20°F to 90°F (-29°C to 32°C) |
| Mix Ratio | 1:1 |
| Yield | 1 gallon yields 231 in3 (3,785 cm3); one 22 oz (600 mL) cartridge yields 40 in3 (655 cm3); six cartridges equal approximately 1 gallon |
| Standards / Compliances | Complies with ACI 302 performance recommendations regarding control and construction joint fillers; Canadian Food Inspection Agency compliant |
| Shelf Life | 1 year in original, unopened containers |
| Clean Up | EUCO SOLVENT or acetone before material has cured |
Chemical Resistance (ASTM D1308):
| Chemical | Rating |
|---|---|
| Acetic Acid, 5% | Excellent |
| Alcohol, 10% | Excellent |
| Alkalies | Excellent |
| Ammonium Hydroxide, 10% | Excellent |
| Brake Fluid | Good |
| Diesel Fuel | Excellent |
| Ethylene Glycol (Antifreeze) | Good |
| Gasoline | Excellent |
| Hydrochloric Acid, 20% | Excellent |
| JP-4 Jet Fuel | Excellent |
| Used Motor Oil | Excellent |
| Salt Water | Excellent |
| Sodium Hydroxide, 10% | Excellent |
| Sulfuric Acid, 10% | Good |
| Xylene | Poor |
Chemical ratings: Excellent (no effect after 2 weeks), Good (no effect for 24 hours), Poor (affected within 24 hours).
Coverage Guidelines (Length of Joint per 1 Gallon):
| Joint Width | 1 in Depth | 1.5 in Depth | 2 in Depth | 2.5 in Depth | 3 in Depth |
|---|---|---|---|---|---|
| 3/32 in (2.4 mm) | 205 ft (62.5 m) | 136 ft (41.5 m) | 102 ft (31.1 m) | 82 ft (25.0 m) | 68 ft (20.7 m) |
| 1/8 in (3.2 mm) | 154 ft (46.9 m) | 102 ft (31.1 m) | 77 ft (23.5 m) | 61 ft (18.6 m) | 51 ft (15.5 m) |
| 3/16 in (4.8 mm) | 102 ft (31.1 m) | 68 ft (20.7 m) | 51 ft (15.5 m) | 41 ft (12.5 m) | 34 ft (10.4 m) |
| 1/4 in (6.4 mm) | 77 ft (23.5 m) | 51 ft (15.5 m) | 38 ft (11.6 m) | 30 ft (9.1 m) | 25 ft (7.6 m) |
| 3/8 in (9.5 mm) | 51 ft (15.5 m) | 34 ft (10.4 m) | 25 ft (7.6 m) | 20 ft (6.1 m) | 17 ft (5.2 m) |
| 1/2 in (12.7 mm) | 38 ft (11.6 m) | 25 ft (7.6 m) | 19 ft (5.8 m) | 15 ft (4.6 m) | 12 ft (3.7 m) |
Frequently Asked Questions
How soon can joints be returned to traffic?
Typical traffic ready time is 15 minutes for light traffic and 30 minutes for heavy traffic.
How long do I have to shave the joint filler flush?
The shave window is 30 minutes to 24 hours, depending on jobsite conditions such as concrete and ambient temperatures.
Does EUCO QWIKJOINT 200 require a primer?
No. EUCO QWIKJOINT 200 does not require a primer before application.
Should backer rod be used to reduce joint filler volume?
No. EUCO QWIKJOINT 200 must be filled full depth of the joint or crack. Do not use backer rod or other fill material to reduce volume. Dried silica sand may be used at the bottom of a joint to prevent material loss through the slab.
Can it be used in cold environments such as freezer floors?
Yes. It will cure in temperatures as low as -20°F (-29°C). Surface and ambient temperature during applications should be between -20°F and 90°F (-29°C and 32°C).
Is it intended for expansion joints?
No. EUCO QWIKJOINT 200 is not an expansion joint sealant.
How is the 22 oz cartridge installed?
Shake the cartridge well before use, install the static mixing nozzle, load into a 1:1 ratio dual-component dispensing gun (600 mL), dispense the first 2 to 3 pumps until material appears uniform, then place full depth and slightly overfill before shaving flush.
