Emseal Colorseal-On-A-Reel

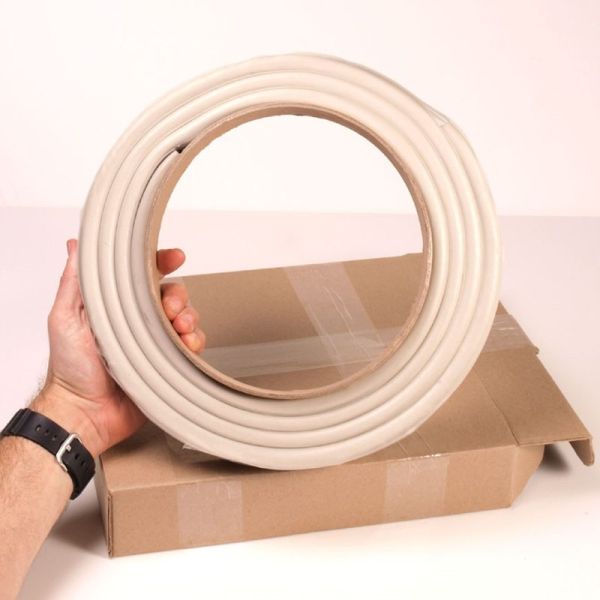

Emseal Colorseal-On-A-Reel is a sealant-coated precompressed foam in 10 ft reels for 1/2 to 1 1/4 inch joints. It is placed in tilt-up walls, sidewalks, and pool copings.
- +30% / -50% movement
- Depth 1 3/4 inches
- Watertight and airtight
Colorseal-On-A-Reel, 10 ft reel
Emseal Colorseal-On-A-Reel is a sealant-coated, precompressed foam primary seal for small joints. It is used in tilt-up, precast, CMU, masonry, curtainwall, sidewalks, and pool copings from 1/2 to 1 1/4 inches. It is placed from 10-foot reels into vertical and horizontal joints. Watertight, airtight, and insulating, with about 2.5 psi backpressure.
Key Features
- Sealant-coated precompressed foam on a 10 ft reel
- 1/2 to 1 1/4 inch joints
- No priming, masking, or backer rod
- Watertight, airtight, and insulating
- Handles plane changes and curves
Applications
- Tilt-up, precast, CMU, and masonry control joints.
- Curtain wall, metal panel, and window perimeters.
- Sidewalks, driveways, and garage thresholds.
- Pool copings and other small-gap seals.
- Vertical and horizontal small joints.
Technical Specifications
| Property | Value |
|---|---|
| Movement | +30% / -50% (80% total) |
| Depth of seal | 1 3/4 in |
| Joint sizes | 1/2, 3/4, 1, and 1 1/4 in |
| Pack | 10 ft (3 m) reels |
| R-value | about 1.8 per inch of depth |
| Substrate backpressure | about 2.5 psi |
| ABAA | Compliant |
| Application | vertical and horizontal small joints |
Documents
Colorseal-On-A-Reel Product Data Sheet
Frequently Asked Questions
What joint sizes is Colorseal-On-A-Reel placed in?
It is placed in 1/2, 3/4, 1, and 1 1/4 inch joints, vertical and horizontal.
How is Colorseal-On-A-Reel shipped?
It ships on 10-foot reels.
What is the depth of seal of Colorseal-On-A-Reel?
1 3/4 inches at every listed size.
What is the R-value of Colorseal-On-A-Reel?
About 1.8 per inch of depth.
What is the paintable face of Colorseal-On-A-Reel?
An optional paintable STP hybrid limestone face is available. Flexible paint is required if the joint moves.
What is the substrate backpressure of Colorseal-On-A-Reel?
About 2.5 psi against the joint faces.
