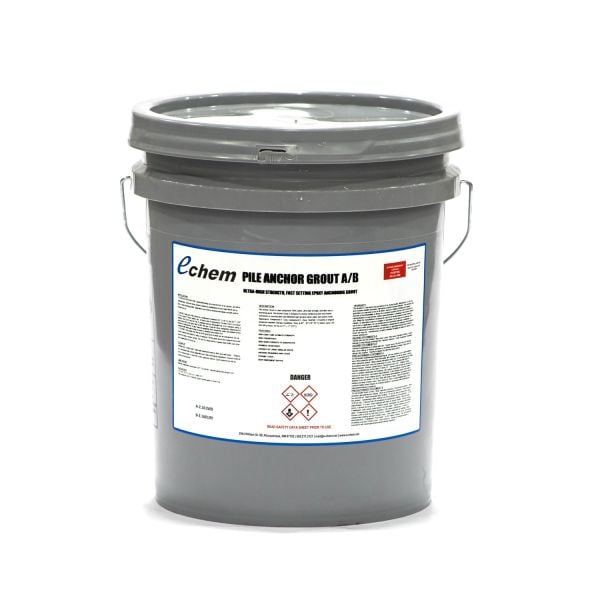

E-Chem Pile Anchor Grout
E-Chem Pile Anchor Grout is a two-component, 100% solids, pourable epoxy grout for rebar and tension connectors in piles and foundations.
- Fluid fill for large annular space and deep embedment
- High early and ultimate strength under dynamic load
- 2.75 gallon unit
$453.87
E-Chem Pile Anchor Grout Pourable Epoxy Anchoring Grout
E-Chem Pile Anchor Grout is a two-component, 100% solids, pourable epoxy grout for anchoring rebar and tension connectors in concrete piles and foundations. Fluid consistency fills large annular spaces and deep embedments that see wind, water, and seismic load. Bond strength is high, and the cured grout is self-extinguishing. Load after 24 to 48 hours depending on temperature.
Key Features
- Two-component, 100% solids pourable epoxy grout
- Fluid consistency for large annular space and deep embedment
- Anchors rebar and tension connectors under wind, water, and seismic load
- High bond strength to prepared concrete and steel
- Self-extinguishing cured grout
- Pre-measured 2.75 gallon unit
Applications
- Pile and foundation rebar anchors
- Tension connectors in concrete
- Large unfilled annulus up to 3 in
- Dynamic wind, water, and seismic load paths
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | E-Chem |
| Product | Pile Anchor Grout |
| Type | Two-component pourable epoxy anchoring grout |
| Packaging | 2.75 gal unit (A in 5 gal pail, B in 1/2 gal can) |
| Yield | 635 cu in per 2.75 gal unit |
| Solids / VOC | 100% solids; 0 g/L |
| Pot life | 15 min at 73°F (full unit) |
| Gel time | 45-60 min (60 g mass at 73°F) |
| Compressive strength | 16,250 psi |
| Bond strength | 2,800 psi |
| Max annulus | 3 in unfilled |
| Final cure at 75°F | 24 hr (60°F: 60 hr) |
Product documents: Pile Anchor Grout Technical Data Sheet (PDF) | Pile Anchor Grout Physical Properties (PDF)
Frequently Asked Questions
What is Pile Anchor Grout?
A two-component, 100% solids, pourable epoxy grout for anchoring reinforcing steel and tension connectors in concrete piles and foundations.
How is it placed?
Pour mixed grout slowly from the top of the cavity so air is not trapped, then insert the bar. Use only mixed material that flows freely from the pail.
How soon can it take load?
Allow 24 to 48 hours depending on temperature. At 75°F, final cure is about 24 hours; at 60°F it is about 60 hours.
Is this EP-Patch?
No. Pile Anchor Grout is a fluid anchoring grout. EP-Patch is a trowel mortar for surface repairs.
