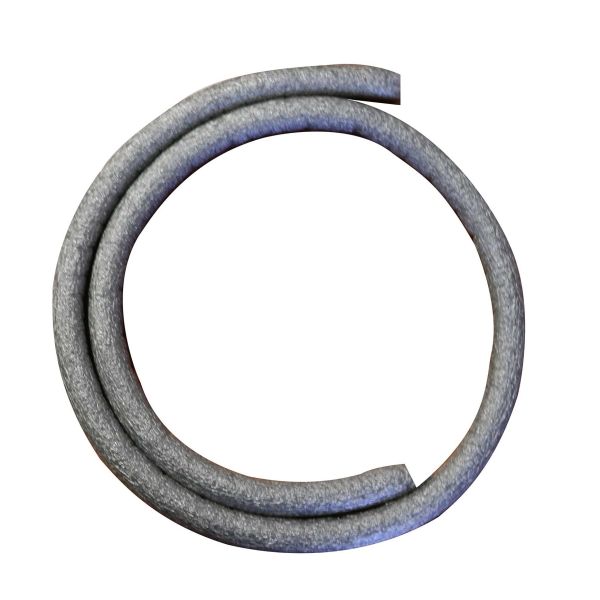

Chemlink SOF-Rod Backer Rod Carton 3/8 x 1400ft F2300
ChemLink SOF-Rod is a bi-cellular polyolefin foam backer rod for cold-applied sealant joints. It controls sealant depth, acts as a bond breaker, and is used in expansion joints, glazing, curtain wall, parking decks, and bridge joints.
- Oversized 25 to 50% so it seats tight as a bond breaker
- Virtually dust-free and chemically inert
- Not for hot-applied sealants
$189.33
Drop Shipped
ChemLink SOF-Rod Bi-Cellular Backer Rod, 3/8 in. x 1,400 ft
ChemLink SOF-Rod is a bi-cellular polyolefin foam backer rod used to control sealant depth in expansion joints, glazing, curtain wall, parking decks, and bridge joints. The rod is virtually dust-free, chemically inert, and does not outgas in normal use. Oversize 25 to 50% so it seats tight and acts as a bond breaker. Do not use with hot-applied sealants. The same foam is sold as the 5/8 in. x 550 ft SOF-Rod, the 7/8 in. x 350 ft SOF-Rod, and the 1-1/8 in. x 125 ft SOF-Rod.
Key Features
- Limits sealant depth and blocks three-point bonding in the joint
- Virtually dust-free, chemically inert, and no outgassing in normal use
- Works with most cold-applied non-sag and self-leveling sealants
- Install 25 to 50% oversized so the rod seats tight as a bond breaker
- Can also be used as a gasket or sealing material
- Not for hot-applied sealants; do not puncture, stretch, or over-compress
Applications
- Expansion and contraction joints.
- Window glazing.
- Curtain wall construction partitions.
- Parking decks.
- Bridge construction.
- Modular home gasketing and log home chinking.
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Chem Link (SOPREMA) |
| Product | SOF-Rod backer rod |
| Material | Bi-cellular polyolefin foam |
| This carton | 3/8 in. diameter × 1,400 ft |
| Part number | F2300 |
| ASTM C 1330 | Type B, cylindrical bi-cellular sealant backing |
| ASTM D 5249 | Type 3, round rod for cold-applied sealants |
| Temperature limits | -45°F to +160°F |
| Size selection | Oversized 25 to 50% for a tight bond-breaker fit |
| Compatibility | Most cold-applied sealants (evaluate per ASTM 1087 Method C) |
| Do not use | Hot-applied sealants. Do not puncture, over-compress, or stretch during insertion. |
| TDS revision | DS2300, 08/04/20 (current SOPREMA PDS - SOF Backer Rod) |
Product documents: PDS - SOF Backer Rod (PDF)
Frequently Asked Questions
Is ChemLink SOF-Rod a backer rod for cold-applied sealant joints?
Yes. ChemLink SOF-Rod is a cylindrical bi-cellular polyolefin foam rod used as sealant backing with non-sag and self-leveling cold-applied sealants.
Does ChemLink SOF-Rod control sealant depth and prevent three-point bonding?
Yes. ChemLink SOF-Rod limits the depth of the sealant, acts as a barrier to flow through the joint, and helps prevent three-point bonding.
Which ChemLink SOF-Rod diameter should I use?
ChemLink SOF-Rod should be oversized 25 to 50% relative to the joint. Live diameters are 3/8 in., 5/8 in., 7/8 in., and 1-1/8 in.
Can ChemLink SOF-Rod be used in expansion joints, glazing, and curtain wall?
Yes. Common applications for ChemLink SOF-Rod include expansion and contraction joints, window glazing, curtain wall construction, parking decks, and bridge construction.
Can ChemLink SOF-Rod be used with hot-applied sealants?
No. Do not use ChemLink SOF-Rod with hot-applied sealants.
Will ChemLink SOF-Rod outgas in normal use?
No. ChemLink SOF-Rod is virtually dust-free, chemically inert, and does not outgas in normal use.
