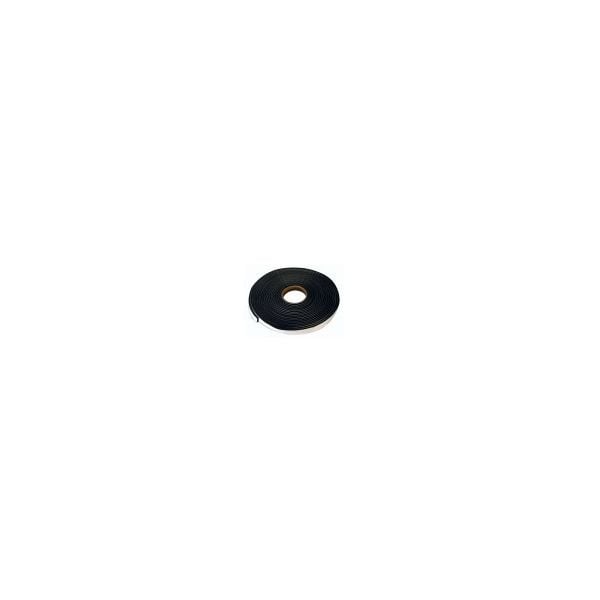

Adeka MC-2005T Waterstop 330' Case
Adeka Ultraseal MC-2005T is an adhesive-backed hydrophilic rubber strip for pipe penetrations, H-beams, and concrete joints on new or existing walls.
- Pipes typically 24 in or smaller
- Adhesive back for positioning on pipe or steel
- Seawater and cement water exposure
$1,417.48
Drop Shipped
Adeka Ultraseal MC-2005T Hydrophilic Waterstop
Adeka Ultraseal MC-2005T is a non-vulcanized hydrophilic rubber strip with adhesive back for piping penetrations (typically 24 in or smaller), H-beams, and concrete joints. It swells about 2 times by volume and wants about 4 to 5 in of cover. Use it on new construction or on piping through existing walls. A thicker mesh profile is available as the Adeka MC-2010MN.
Looking for another size?
Key Features
- Adhesive back on pipe or steel for positioning
- Piping penetrations typically 24 in or smaller
- New walls or existing wall penetrations
- About 4 to 5 in of concrete cover
- Seawater and cement water exposure
- About 2 times volume swell when wet
Applications
- Cast-in-place pipe penetrations 24 in or smaller
- Pipe through existing construction
- H-beams
- Concrete joints with adhesive positioning
Technical Specifications
| Property | Value |
|---|---|
| Size | 20 mm x 5 mm (0.78 in x 0.20 in) |
| Packaging | 100 m (330 ft) per case |
| Volume change | 120% (about 2 times) |
| Hardness | A30 (representative) |
| Tensile strength | 0.9 MPa (representative) |
| Elongation | 560% (representative) |
| Vulcanization | No |
| Specific gravity | 1.18 (representative) |
| Concrete cover | 4.0 to 5.0 in |
| Typical pipe | 24 in or smaller |
Product documents: Adeka Ultraseal MC-2005T Piping Penetrations Data Sheet (PDF)
Frequently Asked Questions
When should I use Adeka Ultraseal MC-2005T instead of MC-2010MN?
MC-2005T is the adhesive 20 x 5 mm strip, typically for pipe 24 in or smaller. Adeka Ultraseal MC-2010MN is the 20 x 10 mm mesh strip for non-moving CIP joints and piping larger than 24 in. Pipe diameter and whether the joint is a formed CIP joint decide the profile.
What pipe diameter is Adeka Ultraseal MC-2005T typically used for?
The piping sheet recommends MC-2005T where pipe diameter does not exceed 24 in. Larger pipe is the MC-2010MN job unless an Adeka representative signs off on MC-2005T for that diameter.
How much concrete cover does Adeka Ultraseal MC-2005T need?
About 4.0 to 5.0 in, and the strip has to be fully encapsulated. That cover is a property of MC-2005T, not a pour sequence.
Can Adeka Ultraseal MC-2005T be used in seawater or cement water?
Yes. The OCM sheet lists seawater and cement water among the solutions MC-2005T can perform in, with no toxic substances or heavy metals.
Can Adeka Ultraseal MC-2005T go on a new wall penetration as well as an existing one?
Yes. The piping sheet lists new construction and piping penetrations through existing concrete walls. Both are MC-2005T uses when the pipe is in the typical 24 in range.
Is Adeka Ultraseal MC-2005T used around H-beams as well as pipe?
Yes. H-beams are a listed use alongside piping penetrations and concrete joints. The adhesive back is what seats MC-2005T on steel or pipe.
