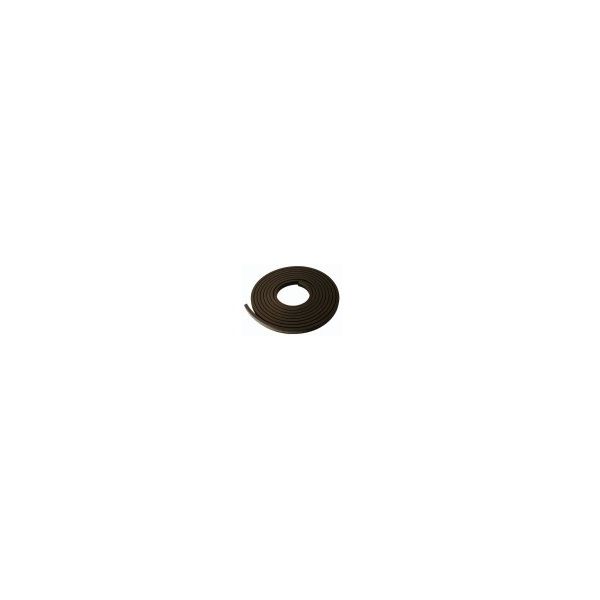

Adeka MC-2010MN 82' Case
Adeka Ultraseal MC-2010MN is a waterstop designed for use in below grade cast-in-place concrete joints where water intrusion must be prevented. MC- 2010MN is designed to replace conventional waterstop in non-moving joints. It is also used for cast-in-place or block out piping penetrations where pipe diameter exceeds 24".
- Integrated wire mesh prevents unnecessary expansion in length and width
- Excellent durability
- Chemically resistant
$548.78
Drop Shipped
Adeka Ultraseal MC-2010MN Hydrophilic Waterstop
Adeka Ultraseal MC-2010MN is a non-vulcanized hydrophilic rubber strip with stainless mesh for below-grade CIP non-moving joints and CIP or block-out piping larger than 24 in. Mesh-directed swell is about 2 times by volume, with about 4 to 5 in of cover, on tanks, vaults, WWTP, and dams. A thinner adhesive-backed profile is available as the Adeka MC-2005T.
Looking for another size?
Key Features
- Replace conventional waterstop in non-moving CIP joints
- CIP or block-out piping larger than 24 in
- Stainless mesh directs swell through the joint
- Below-grade tanks, vaults, WWTP, and dams
- About 2 times volume swell when wet
- Seawater and cement water exposure
Applications
- Below-grade CIP non-moving joints
- CIP and block-out pipe larger than 24 in
- Water tanks, vaults, and manholes
- WWTP, WTP, reservoirs, and dams
Technical Specifications
| Property | Value |
|---|---|
| Size | 20 mm x 10 mm (0.78 in x 0.39 in) |
| Packaging | 25 m (82 ft) per case |
| Volume change | 120% (about 2 times) |
| Hardness | A30 (representative) |
| Tensile strength | 0.9 MPa (representative) |
| Elongation | 560% (representative) |
| Vulcanization | No |
| Specific gravity | 1.18 (representative) |
| Concrete cover | 4.0 to 5.0 in |
| Typical pipe | Larger than 24 in |
Product documents: Adeka Ultraseal MC-2010MN Technical Product Data Sheet (PDF)
Frequently Asked Questions
When is Adeka Ultraseal MC-2010MN the right profile versus MC-2005T?
Use MC-2010MN on a formed non-moving CIP joint or on piping larger than 24 in. Adeka Ultraseal MC-2005T is the adhesive 20 x 5 mm strip, typically for pipe 24 in or smaller. Pipe diameter and whether the joint is a formed CIP joint decide the profile.
Can Adeka Ultraseal MC-2010MN replace conventional PVC waterstop in a non-moving joint?
Yes. The OCM sheet says MC-2010MN is designed to replace conventional waterstop in non-moving joints. Moving joints are a different product.
How much does Adeka Ultraseal MC-2010MN expand?
About 2 times by volume (120% on the press-sheet values). Stainless mesh in MC-2010MN directs that swell so the strip does not wind along its length.
What below-grade structures is Adeka Ultraseal MC-2010MN used on?
The sheet lists below-grade joints, piping penetrations, cooling towers, utility vaults, water tanks, reservoirs, manholes, WWTP, dams, and WTP. Those are MC-2010MN uses, not a mix with KBA or KM-String.
How much concrete cover does Adeka Ultraseal MC-2010MN typically need?
About 4 to 5 in depending on concrete strength on the MC coverage sheet. That cover is a property of MC-2010MN. Placement between rebar is on the install sheet, not this FAQ.
Does the stainless mesh in Adeka Ultraseal MC-2010MN change how it swells?
Yes. The mesh cuts unnecessary expansion in length and width and directs swell into the joint. That is why MC-2010MN is the formed CIP profile, not the adhesive 20 x 5 mm strip.
