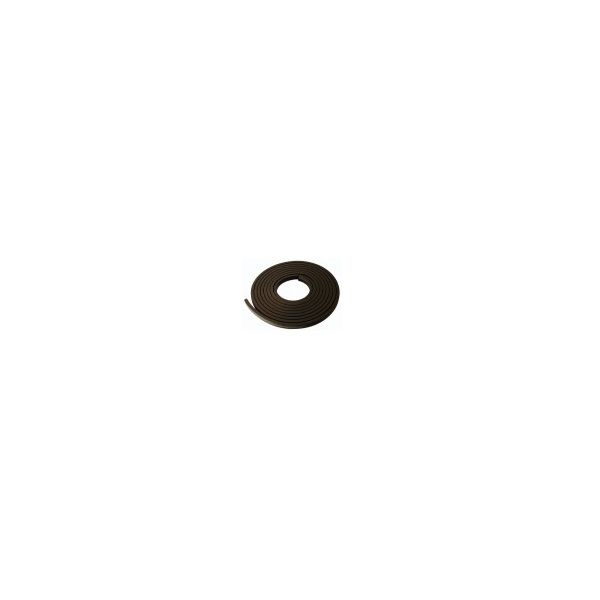

Adeka KBA-1510FP 82' Case
Adeka Ultraseal KBA-1510FP is an expanding rubber waterstop designed for non-moving joints. Because of its low expansion pressure, it can be used in areas with a minimum of one inch of concrete coverage. KBA-1510FP undergoes controlled expansion when exposed to moisture. This expansion capability provides a "double locking" waterstop.
- For use in non-moving joints such as concrete joints, precast structures, piping penetrations, etc
- Expands 30% by volume when exposed to water
- Environmentaly safe - no toxic substances or heavy metals
$387.12
Drop Shipped
Adeka Ultraseal KBA-1510FP Hydrophilic Waterstop
Adeka Ultraseal KBA-1510FP is a hydrophilic vulcanized sponge-rubber waterstop for non-moving joints. Low expansion pressure lets it work with as little as 1 in of good-quality cover, including containment curbs, precast segments that stay in compression, and piping penetrations. KBA-1510FP is intended for hydrostatic heads of 25 ft or less and holds up in seawater and cement water on the wet face of the pour.
Key Features
- Thin-cover placements with as little as 1 in of good-quality concrete
- Containment curbs where a high-swell strip would be too aggressive
- Precast segments that stay in compression at the joint
- Hydrostatic heads of about 25 ft or less
- Seawater and cement water exposure
- P-201 paste can fill rough spots beside the strip
Applications
- Non-moving concrete joints
- Containment curbs
- Precast segments in compression
- Piping penetrations at thin cover
Technical Specifications
| Property | Value |
|---|---|
| Size | 15 mm x 10 mm (0.59 in x 0.39 in) |
| Packaging | 25 m (82 ft) per case |
| Volume change | 30% |
| Expansion pressure | 0.03 MPa |
| Tensile strength | 0.78 MPa (representative) |
| Elongation | 350% (representative) |
| Vulcanization | Yes |
| Hydrostatic head | 25 ft or less |
| Min concrete cover | 1 in good-quality concrete |
Product documents: Adeka Ultraseal KBA-1510FP Technical Product Data Sheet (PDF)
Frequently Asked Questions
When should I use Adeka Ultraseal KBA-1510FP instead of KM-3030M?
Use KBA-1510FP when cover is thin, the joint does not move, and head is about 25 ft or less. Adeka Ultraseal KM-3030M is the 30 x 30 mm mesh strip for thicker walls, expansion joints up to 1/2 in, and higher head. Both are live on this site; pick by cover and head, not by pack.
How little concrete cover can Adeka Ultraseal KBA-1510FP work with?
The OCM sheet allows as little as 1 in of good-quality, well-consolidated concrete. That low expansion pressure is why KBA-1510FP shows up on curbs and other thin sections where a high-swell strip would blow the cover.
What hydrostatic head is Adeka Ultraseal KBA-1510FP intended for?
KBA-1510FP is intended for hydrostatic heads of 25 ft or less. If the joint sees more head or needs a thicker mesh strip, look at Adeka Ultraseal KM-3030M instead.
Can Adeka Ultraseal KBA-1510FP be used in seawater or cement water?
Yes. The OCM sheet lists seawater and cement water among the solutions KBA-1510FP can perform in. It does not contain toxic substances or heavy metals.
Will Adeka Ultraseal KBA-1510FP work between precast segments?
Yes, on non-moving precast joints that stay in compression across the KBA-1510FP section. If a segment can open, this is the wrong profile.
When would I pick Adeka Ultraseal KBA-1510FP over MC-2005T?
KBA-1510FP is the thin-cover sponge (about 1 in). Adeka Ultraseal MC-2005T is the adhesive 20 x 5 mm strip that wants 4 to 5 in of cover, typically on pipe 24 in or smaller. Cover and joint type decide, not the brand name.
