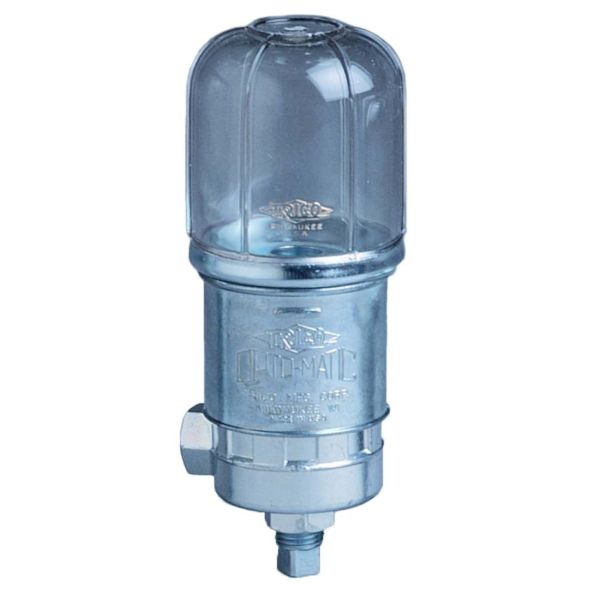

Trico Optomatic Oiler LS 4oz 30024
Trico Opto-Matic Type LS 30024. 4 oz plastic constant-level oiler with a larger surge chamber for start-up swell.
- 4 oz Type LS plastic, 1/4 NPT
- Larger surge chamber; 165 F continuous
- 8 oz Type LS is another size
$104.24
Availability:
In stock
( 5 Available )
Trico Opto-Matic Type LS 30024, 4 oz Plastic
Trico Opto-Matic Type LS 30024 is a 4 oz plastic-reservoir constant-level oiler with a larger surge chamber so start-up and shut-down oil swell is less likely to spill. Use it where glass is not wanted. Zinc die-cast body, 1/4 NPT, 165 F continuous. The 8 oz Type LS is another size of this oiler. Type E plastic and glass oilers are listed separately.
Looking for another size?
Key Features
- Type LS plastic reservoir, 4 oz
- Larger surge chamber for start-up swell
- 1/4 NPT; 165 F continuous
- Zinc die-cast body
- 8 oz Type LS is another size
- Not Type E or glass Opto-Matic
Applications
- Plastic-reservoir sumps with oil swell
- Bearing housings where glass is restricted
- Start-up and shut-down surge
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Trico |
| Model | 30024 |
| Style | Opto-Matic Type LS |
| Capacity | 4 oz |
| Connection | 1/4 NPT |
| Max temp | 165 F continuous |
| Reservoir | butyrate plastic |
| Casting | zinc die cast |
| Surge chamber | LS, larger |
| Other size | 8 oz 30028 |
| Not | Type E or glass |
Frequently Asked Questions
What is this?
Trico Opto-Matic Type LS 30024, a 4 oz plastic oiler with a larger surge chamber.
Type E?
Type E is the compact plastic style and is listed separately.
Other size?
8 oz Type LS 30028.
Temp?
165 F continuous.
Who makes it?
Trico.
