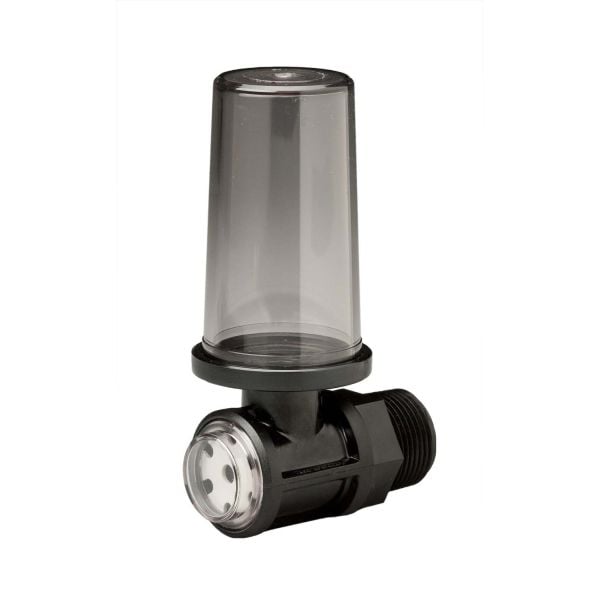

Trico Watchdog Oiler 4oz 31804

Trico Watchdog 31804. 4 oz polysulfone constant-level oiler, 1 NPT. Mounts on the oil centerline. No level setting.

4 oz polysulfone, 1 NPT, 325 F
Mount on oil centerline; no collar
Not Watchdog 31820 or Opto-Matic

$111.47

Availability: Out of stock

Trico Watchdog 31804, 4 oz Polysulfone 1 NPT

Trico Watchdog 31804 is a 4 oz constant-level oiler that mounts on the centerline of the oil level. No collar to set. Polysulfone body and reservoir, 1 NPT, 325 F. Integral viewport. Closed-system design against contamination. The aluminum-and-glass Watchdog 31820 is a different 4 oz Watchdog and is listed separately. Opto-Matic oilers are listed separately.

Key Features

Watchdog 4 oz, polysulfone body and reservoir
1 NPT; mounts on the oil centerline
No adjustable collar
325 F; Viton o-ring; integral viewport
Closed-system against contamination
Not aluminum-glass 31820 or Opto-Matic

Applications

Sumps with a known oil centerline
Installs where a bullseye sight would sit
Plants that want a plastic Watchdog

Technical Specifications

Property	Value
Manufacturer	Trico
Model	31804
Style	Watchdog
Capacity	4 oz
Body	polysulfone
Connection	1 NPT
Max temp	325 F
Level set	none, mount on centerline
Viewport	integral
O-ring	Viton
Other Watchdog	31820 listed separately
