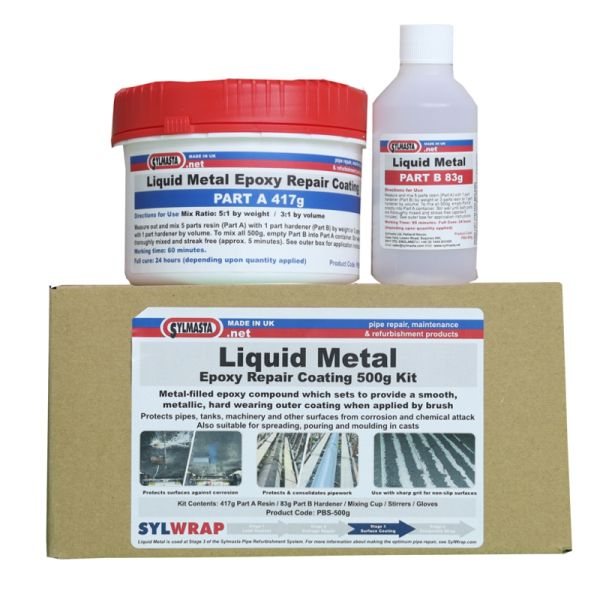

Sylmasta Liquid Metal Epoxy Coating 4x500g
Liquid Metal provides a corrosion-protective, wear-resistant, low friction finish. The light consistency makes it easy to mix and apply with a brush, with little sag. In addition, Liquid Metal is virtually odorless, with no unpleasant smell.
- Solvent free
- Does not shrink
- Excellent adhesion
$283.43
Availability:
In stock
( 10 Available )
SKU
22718
Sylmasta Liquid Metal Epoxy Coating – 4 x 500g
Liquid Metal is a low-viscosity, metal-filled two-part epoxy that brushes on to protect steel and other metals from corrosion and chemical attack. It provides a smooth, wear-resistant, low-friction finish and is easy to mix and apply with little sag. Use as a protective coating on pumps, impellers, flange faces, valves, castings, tanks, and pipework, or as a load-transfer layer before overwrapping with composite bandages. This item is the 4 x 500g kit.
Key Features
- Brush-applied, metal-filled epoxy forms a corrosion and wear resistant finish.
- Low viscosity with little sag for clean application on vertical surfaces.
- Solvent-free, 100 percent non-volatile; virtually odourless.
- Long working time for larger areas; gel time about 90 minutes (regular grade).
- Can be machined after cure; smooth, low-friction surface.
- Acts as a load-transfer layer prior to composite overwraps on pipes.
- Post-cure improves heat resistance for high temperature service.
Applications
- Protective coating for pumps, impellers, flange faces, water box ends, valves, castings, pipe elbows, and tanks.
- Pipe reinforcement: corrosion barrier and load-transfer layer before composite bandage overwraps.
- Bonding silicon carbide grit to ramps and floors for non-slip surfaces.
- General metal repair and protection on steel and most plastics.
Technical Specifications
| Packaging (this item) | 4 x 500g kit (regular grade); fast grade available |
| Mix Ratio | By weight 5:1; by volume 3:1 (resin:hardener) |
| Gel Time | ~90 minutes regular; ~45 minutes fast (ambient) |
| Recoat Window | ~4–8 hours regular; ~4–6 hours fast |
| Full Cure | ~24–48 hours at ~22°C; heat can accelerate cure |
| Thickness per Coat | 0.5–1.0 mm; apply at least two coats for pinhole-free film |
| Hardness | Shore D >80 (24 hr) |
| Tensile / Flexural Strength | ~28 MPa / ~58 MPa |
| Compressive Strength | ~59 MPa |
| Density / Shrinkage | ~1.55 g/cm³ / <1% |
| Non-Volatile Content | 100 percent |
| Heat Distortion | ~50°C room cure; ~117°C after post-cure |
| Maximum Service Temperature | Up to ~150°C with post-cure |
| Coverage | ~1.2 m²/kg at 0.5 mm thickness (~13 ft²/kg at 0.020 in) |
| Surface Prep | Clean and roughen to bright metal; remove salts to ≤40 ppm; apply soon after prep |
| Shelf Life / Storage | 24 months at ~15–25°C, dry and frost free |
Frequently Asked Questions
How is Liquid Metal applied?
Mix resin and hardener, then brush on 0.5–1.0 mm per coat. Apply at least two coats with a 4–8 hour recoat window to ensure a pinhole-free film.
Can I speed up the cure?
Yes. After an initial room cure, heat to accelerate. For maximum heat resistance, post-cure 24 hours at room temperature, then 80°C for 2 hours followed by 150°C for 3 hours, and allow to cool.
What preparation gives best adhesion?
Abrasive blast or grind to clean, bright metal. For salt-exposed steel, blast and high-pressure wash, allow to sweat overnight, repeat until soluble salts are ≤40 ppm, then solvent clean.
Where is it most useful?
Corrosion and chemical protection on pumps, impellers, flange faces, valves, tanks, and pipework, and as a load-transfer layer prior to composite bandage overwraps.
Is it solvent free and low odour?
Yes. It is solvent free with 100 percent non-volatile content and is virtually odourless during application.
