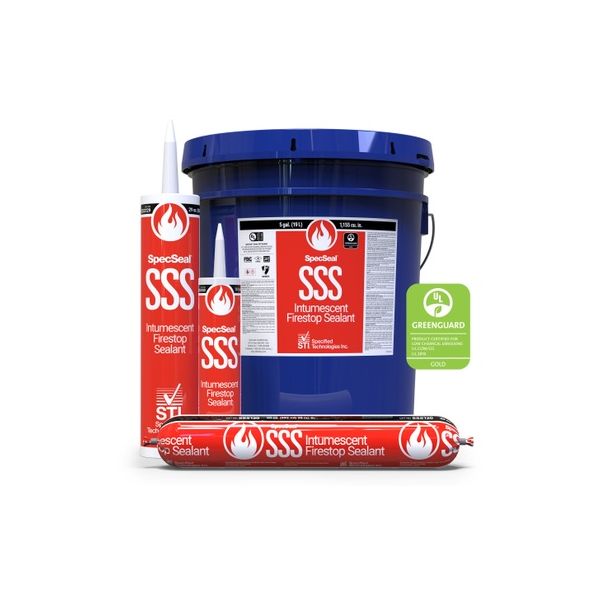

STI SpecSeal SSS100 Fire Barrier Triple S Intumescent Sealant 10oz Cartridge
SpecSeal SSS100 Triple-S is a red two-stage intumescent latex sealant in a 10.1 oz cartridge for penetrations, gaps, and blank openings. Directionalized expansion closes voids so crews can seal metallic pipe, plastic conduit, cable, and multi-service work.
- Seals through-penetrations, construction gaps, and blank openings in common rated assemblies.
- Stays on vertical and overhead surfaces with multi-viscosity latex so the fill does not slump.
- Keeps plastic pipe and cable jackets safer with a water-based formula that has no solvents.
$19.77
Availability:
In stock
( 24 Available )
SpecSeal SSS100 Triple-S Intumescent Sealant - 10.1 Oz
SpecSeal SSS100 Triple-S is a red two-stage intumescent latex firestop sealant in a 10.1 oz cartridge for through-penetrations, construction gaps, and blank openings. The multi-viscosity formula stays on vertical and overhead work, bonds to common construction and penetrant materials, and tools into a smoke-tight fill on metallic pipe, plastic conduit, cable, and multi-service openings.
Key Features
- SSS100 is the 10.1 oz cartridge of red Triple-S two-stage intumescent latex for penetrations, gaps, and blank openings.
- Expands in a highly directionalized two-stage action to close voids left when combustibles burn or melt out of the opening.
- Stays on vertical and overhead surfaces with multi-viscosity latex so the fill does not slump.
- Keeps plastic pipe and cable jackets safer because the formula has no solvents that attack those jackets.
- Seals smoke as well as fire so the opening stays a smoke barrier after tool-off.
- Stays water resistant after dry and will not re-emulsify if the assembly later gets damp.
- Works with SpecSeal collars and wrap strips on plastic pipe when the published design calls for that pairing.
Technical Specifications
| Property | Value |
|---|---|
| Catalog number | SSS100 |
| UPC | 730573011003 |
| Packaging | 10.1 oz tube, 18.2 cu in (300 ml) |
| Color | Red |
| Chemistry | Water-based two-stage intumescent latex |
| Volume expansion | 8x free expansion |
| Expansion begins | 230°F (110°C) 1st stage; 350°F (177°C) 2nd stage |
| Application temperature | 35°F to 100°F (2°C to 38°C) |
| In-service temperature | -10°F to 185°F (-23°C to 85°C) |
| Shelf life | 24 months from date of manufacture |
Product documents: SpecSeal SSS Intumescent Sealant Product Data Sheet
Frequently Asked Questions
What penetrations and openings is SpecSeal SSS100 made to seal?
SpecSeal SSS100 Triple-S Intumescent Sealant seals through-penetrations as well as construction gaps and blank openings. The SSS PDS names metallic pipes including steel, iron, or copper pipe and tubing up to 36 in (914 mm) trade size; nonmetallic PVC, CPVC, PVDF, PEX, PEX-AL-PEX, ABS, and PB; cable, cable trays, and bus duct; HVAC ductwork; insulated pipes; and multi-service penetrations including AC line sets plus electrical, telephone, or TV service. It is also used with SpecSeal Firestop Collars and Wrap Strips when the design requires that pairing, including complete wood-floor packages for electrical, plumbing, HVAC, TV, and telephone.
How do crews apply the 10.1 oz SSS100 cartridge on walls and overhead?
SSS is a single-component, multi-viscosity sealant that may be pumped, caulked from a standard cartridge or bulk loaded, knifed, or troweled. The PDS calls out excellent caulking properties and high-build properties on vertical or overhead surfaces. Apply between 35 F and 100 F (2 C to 38 C). Wear site PPE and follow the Safety Data Sheet. Product contains water and is conductive until dry.
Which SSS packs appear on the PDS besides the live 10.1 oz cartridge?
SpecSeal SSS100 is the only SSS size currently live on Indcon (10.1 oz tube / 300 ml). The preferred Indcon amfile PDS (ZSFOD5001 25192) also lists SSS129 29 oz tube, SSS120 20 oz sausage, and SSS105 5 gallon pail; those sizes are not currently live on Indcon. An older STI web PDS also listed SSS102 2 gallon pail, which is absent from the amfile ordering table. Chemistry is the same red two-stage intumescent latex across catalog numbers.
What happens to SSS100 when fire hits the sealant?
SSS features STI patented two-stage intumescent technology that expands aggressively in a highly directionalized fashion. Free expansion is a minimum of 8 times original volume. Expansion begins at 230 F (110 C) in the first stage and 350 F (177 C) in the second stage, and the continuing range runs from 230 F to less than 1,000 F (110 C to less than 538 C). SSS is the basis for systems tested to ASTM E814 (UL1479) and CAN/ULC-S115 with ratings up to 4 hours. Follow the published design.
What temperature window can crews apply and then leave SSS100 in service?
Application temperature is 35 F to 100 F (2 C to 38 C). In-service temperature is -10 F to 185 F (-23 C to 85 C). Store unopened material at 40 F to 95 F (4 C to 35 C). Shelf life is 24 months from the date of manufacture. The dried sealant is sandable and paintable, water resistant, and will not re-emulsify when dry. VOC content is 29.2 g/L; STC is 62 on a specific construction.
What safety limit applies while SpecSeal SSS100 is still wet?
The PDS states the product contains water and is conductive until dry. Do not apply in the presence of exposed or energized electrical conductors. After dry it is water resistant and will not re-emulsify. The formula contains no solvents that might adversely affect plastic pipes or cable jackets and is marked FBC System Compatible with FlowGuard Gold, BlazeMaster, and Corzan piping, yet STI still asks crews to confirm any pipe-maker restrictions before install.
