Simpson Strong-Tie CI-GV Injection Epoxy 32oz Cartridge

CI-GV epoxy gel 32 oz cartridge, model CIGV32. Mix 2 to 1. Pot life about 19 minutes at 72 F. For medium cracks.

32 oz cartridge, model CIGV32
Gel; mix 2 to 1; pot life about 19 minutes at 72 F
3 gal kit listed separately

$51.77

Availability: Out of stock

Details

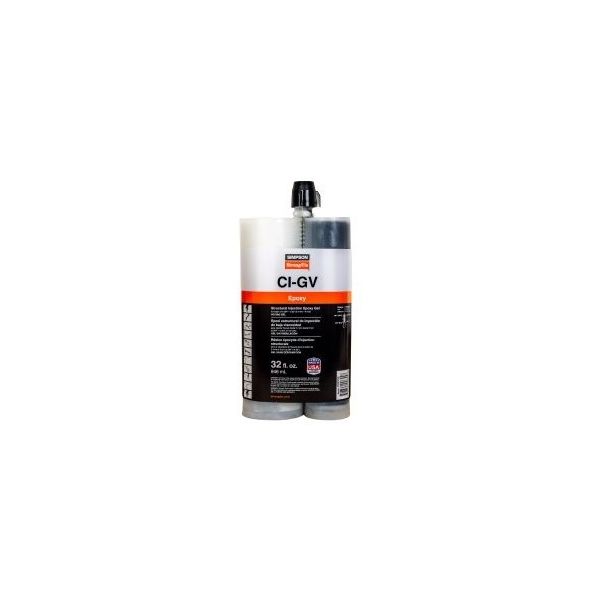

CI-GV Structural Injection Epoxy Gel, 32 oz Cartridge

CI-GV is a two-component, moisture-tolerant epoxy gel for pressure injection of medium cracks about 3/32 to 1/4 in. Mix 2 to 1 through a static nozzle. Pot life is about 19 minutes at 72 F. This 32 oz side-by-side cartridge, model CIGV32, is the gun pack of that gel. It stays non-sag on vertical work. The 3 gallon kit is listed separately. Follow the current Simpson Strong-Tie injection epoxy data on the job.

Key Features

Moisture-tolerant epoxy gel for medium cracks about 3/32 to 1/4 in
32 oz side-by-side cartridge, model CIGV32
Mix 2 to 1 through a static nozzle; pot life about 19 minutes at 72 F
Non-sag on vertical and horizontal work; dry or damp concrete
3 gallon kit is listed separately; not CI-LV or CI-LPL

Applications

Pressure injection of medium cracks
Vertical and horizontal crack sealing
Pick-proof sealing where a gel is specified

Technical Specifications

Property	Value
Manufacturer	Simpson Strong-Tie
Product	CI-GV
Model	CIGV32
Pack	32 oz dual cartridge
Mix	2:1 by volume
Consistency	Non-sag gel
Pot life 72 F	About 19 min (1 qt)
Crack width	About 3/32 to 1/4 in
Use temp	40 to 90 F
Cured color	Concrete gray
Other pack	3 gal kit, listed separately
Not	CI-LV, CI-LPL, CI-SLV, or CI-LV FS
