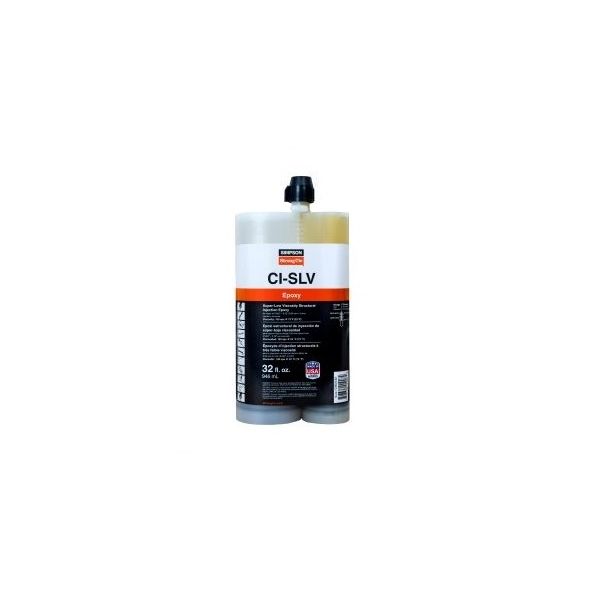

Simpson Strong-Tie CI-SLV32 Injection Epoxy 32oz Cartridge
CI-SLV super-low-viscosity injection epoxy 32 oz cartridge, model CISLV32. Mix 2 to 1. Pot life about 25 minutes at 72 F.
- 32 oz cartridge, model CISLV32
- Super low viscosity; mix 2 to 1; about 25 minutes at 72 F
- 3 gal kit listed separately
$64.15
Availability:
Out of stock
CI-SLV Super-Low-Viscosity Injection Epoxy, 32 oz Cartridge
CI-SLV is a two-component, moisture-tolerant super-low-viscosity injection epoxy for pressure injection, gravity feed, and flood coat from about 60 to 90 F. Mix 2 to 1 through a static nozzle. Pot life is about 25 minutes at 72 F. This 32 oz side-by-side cartridge, model CISLV32, is the gun pack. The 3 gallon kit is listed separately. Follow the current Simpson Strong-Tie injection epoxy data on the job.
Key Features
- Super-low-viscosity injection epoxy for hairline to 1/4 in cracks
- 32 oz side-by-side cartridge, model CISLV32
- Mix 2 to 1 through a static nozzle; pot life about 25 minutes at 72 F
- Use about 60 to 90 F; gravity feed or flood coat on horizontal work
- 3 gallon kit is listed separately; not CI-LV or CI-GV
Applications
- Hairline crack injection
- Gravity feed and flood coat
- Narrow cracks that need a thinner resin than CI-LV
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | CI-SLV |
| Model | CISLV32 |
| Pack | 32 oz dual cartridge |
| Mix | 2:1 by volume |
| Pot life 72 F | About 25 min (1 qt) |
| Use temp | 60 to 90 F |
| Crack width | Hairline to 1/4 in |
| Cured color | Clear |
| Other pack | 3 gal kit, listed separately |
| Not | CI-LV, CI-GV gel, CI-LPL, or CI-LV FS |
Frequently Asked Questions
What pack is this?
A 32 oz side-by-side cartridge, model CISLV32. The 3 gallon kit is listed separately.
CI-SLV or CI-LV?
CI-SLV is super low viscosity and cures clear. CI-LV is low viscosity and cures dark amber. They are listed separately.
Pot life?
About 25 minutes at 72 F in a 1 quart mass. About 6 minutes at 90 F.
How cold?
Use about 60 to 90 F. Cooler work is a different grade.
Who makes it?
Simpson Strong-Tie.
